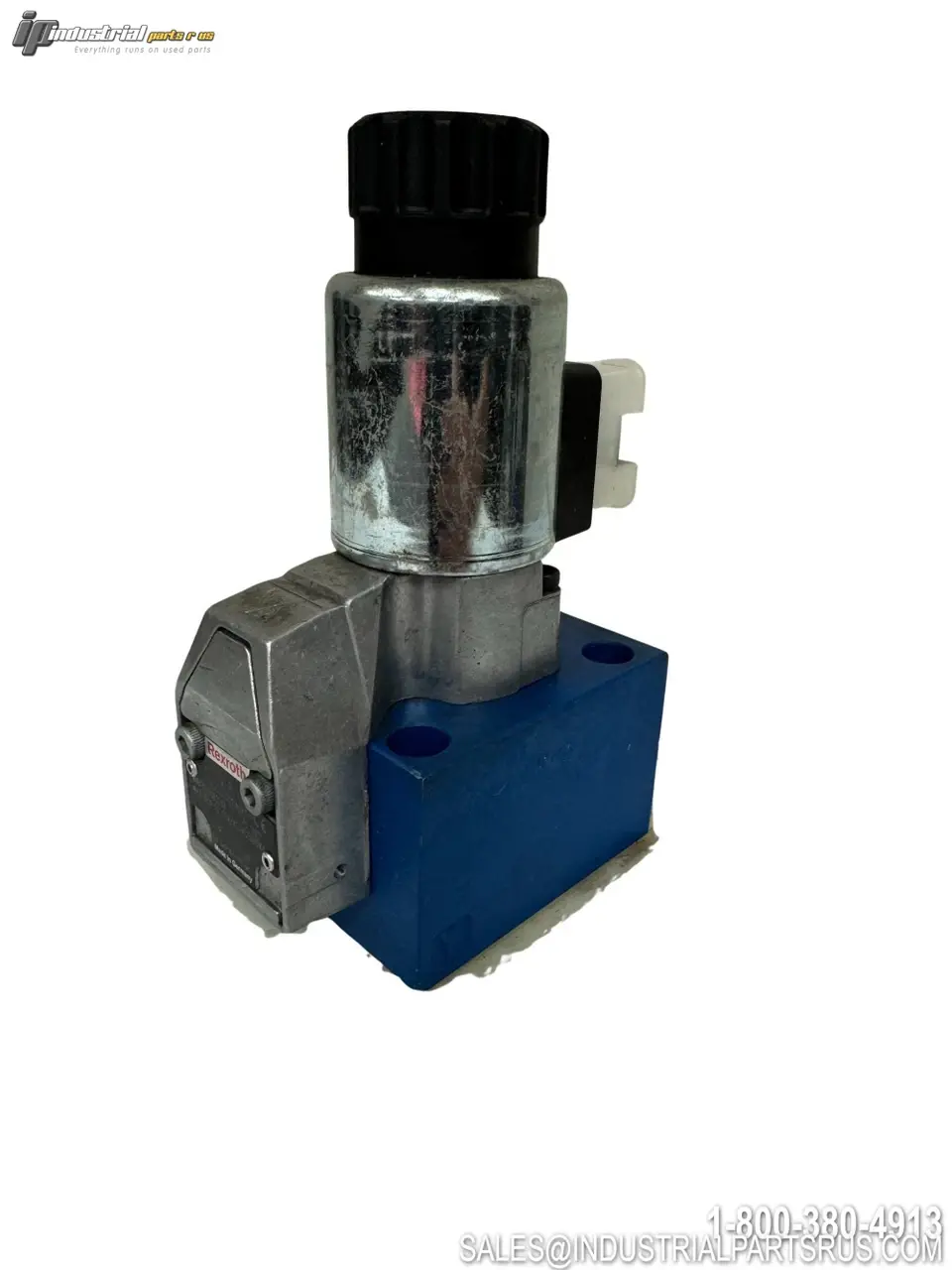

USED REXROTH R900082238

The Bosch Rexroth R900082238 (model M-3SEW 10 C1X/420MG96N9K4) is a direct-operated 3/2-way solenoid directional poppet valve designed for precise control of the start, stop, and direction of hydraulic fluid flow in high-pressure industrial systems. This Size 10 (NG10) valve features a hardened seat-type poppet design that provides leakage-free isolation of blocked connections, making it ideal for demanding hydraulic circuit applications. It incorporates an air-gap DC solenoid with a detachable coil that can be rotated 90° and replaced without opening the pressure-tight chamber. Rated to 420 bar (6,100 psi) with a 96VDC coil, it mounts to ISO 4401-05 / CETOP 5 / D05 subplates.
Specification
Value
Brand
Bosch Rexroth
Model / Part Number
R900082238
Description Code
M-3SEW 10 C1X/420MG96N9K4
Valve Type
Direct-Operated Solenoid Directional Poppet Valve
Way Configuration
3/2-Way
Nominal Size
Size 10 (NG10)
Component Series
1X
Maximum Operating Pressure
420 bar [6,100 psi]
Maximum Flow Rate
40 l/min [10.6 US gpm]
Coil Voltage
96VDC
Power Consumption
30 W
Voltage Tolerance
±10% of nominal voltage
Solenoid Type
Air-Gap DC with Detachable Coil
Coil Rotation
90° without opening pressure chamber
Mounting Type
Subplate (Sandwich Plate)
Porting Standard
ISO 4401-05-04-0-05 / NFPA T3.5.1 R2-2002 D05 / DIN 24340 Form A / CETOP-RP 121H
Seal Material
NBR (Nitrile Butadiene Rubber)
Ambient Temperature Range
–30 to +50°C [–22 to +122°F] (NBR seals)
Maximum Coil Temperature
150°C [302°F]
Weight (3/2 Version)
2.0 kg [4.41 lbs]
Closing Element
Hardened Ball/Spool Poppet
Electrical Connection
Individual Plug-In Connector (K4)
Leakage
Zero Leakage (Leakage-Free Seat Design)
Series / Product Family
M-3SEW (M-.SEW)
We warranty all items for 30 days from date of purchase.
