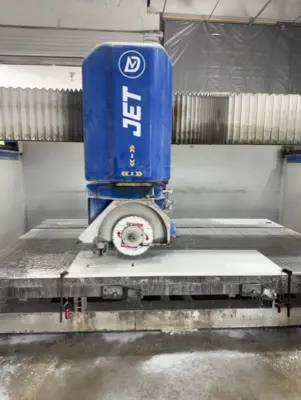

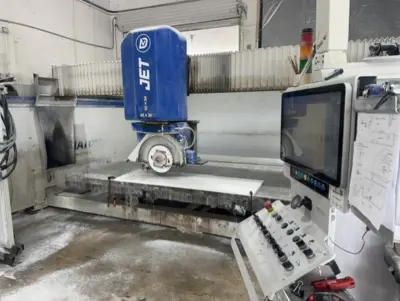

USED 2019 DONATONI JET 265

Table Size: 12.5′ x 8′
Number of Axes: 5-Axis
X-Axis Travel: 149.61″
Y-Axis Travel: 43.31″
Z-Axis Travel: 17.72″
C-Axis: 370° Range
A-Axis Head: 90° Range
X-Axis Max Speed: 1574.8 IPM
Y-Axis Max Speed: 1220.5 IPM
Z-Axis Max Speed: 196.9 IPM
C-Axis Max Rotation Speed: 3,500°/min
A-Axis Max Tilt Speed: 2,000°/min

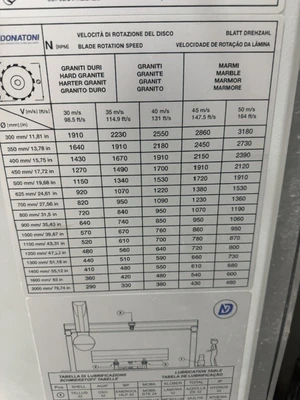

Max Spindle Speed: 5,500 RPM
Number of Spindles: 2
Spindle Motor: 17.4 HP
A-C Center Distance: 6.293″
A-M Center Distance: 0.0136″
Spindle Nose to C-Axis Distance: 1.462″
Equipped With

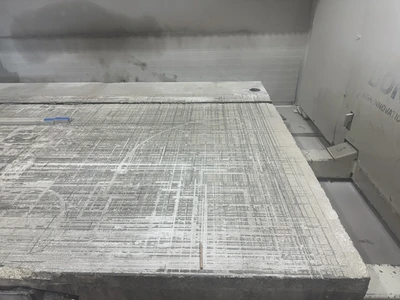

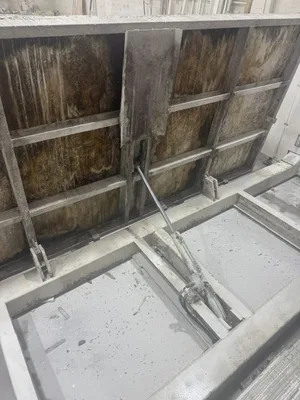

Tilting Table
Slab Thickness Sensor Probe
Pneumatic Blade Presetter System
