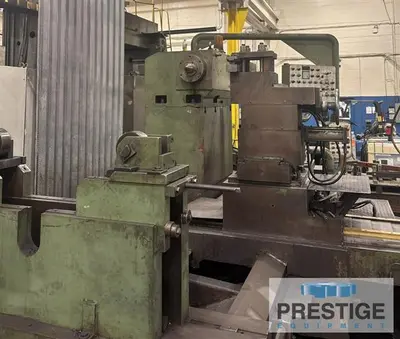

USED GIANA GFP-24
Overview
Specs
SPECIFICATIONS:
Swing Over Bed: 129"
Swing Over Carriage: 108"
Distance Between Centers: 325"
Spindle Speeds: 9.5 - 180 RPM
Chuck Diameter: 78.74"
Spindle Hole: 5.9"
Tailstock Quill Diameter: 11.8"
Tailstock Quill Travel: 7.87"
Bed Width: 65"
Weight Capacity Between Centers: 100,000 Lbs
Main Motor: 75 HP
Equipped With:

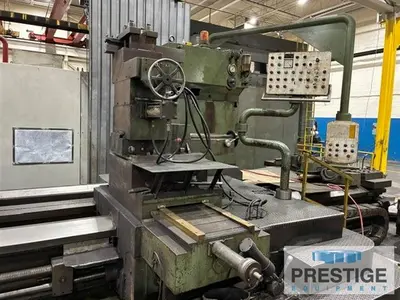

Operators Platform on Carriage

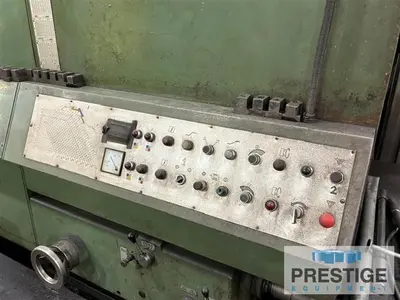

Full Pendant Controls From Carriage
Power Feeding Triple Compounds

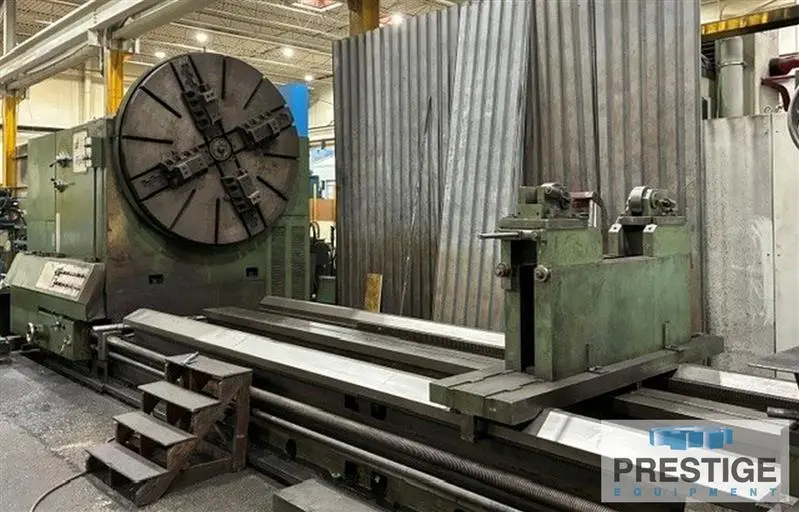

78.74" Chuck with 4-Face Plate Type Jaws
3-Way Bed Design
Hardened Ways
Steady Rests
Thread Dial
Inch, Metric, Diametral, Module Threading
Taper Cutting By Power Compound on Carriage
55 KW Main Motor
NOTE:
3-Way Bed Design to Allow Carriages to Pass Steady Rests and Tailstock.
Features:
78.74 Chuck Diameter w/4-Face Plate Type Jaws
3-Way Bed Design
Hardened Ways
Steady Rests
Thread Dial
Threading
Power Compound for Taper Cutting
