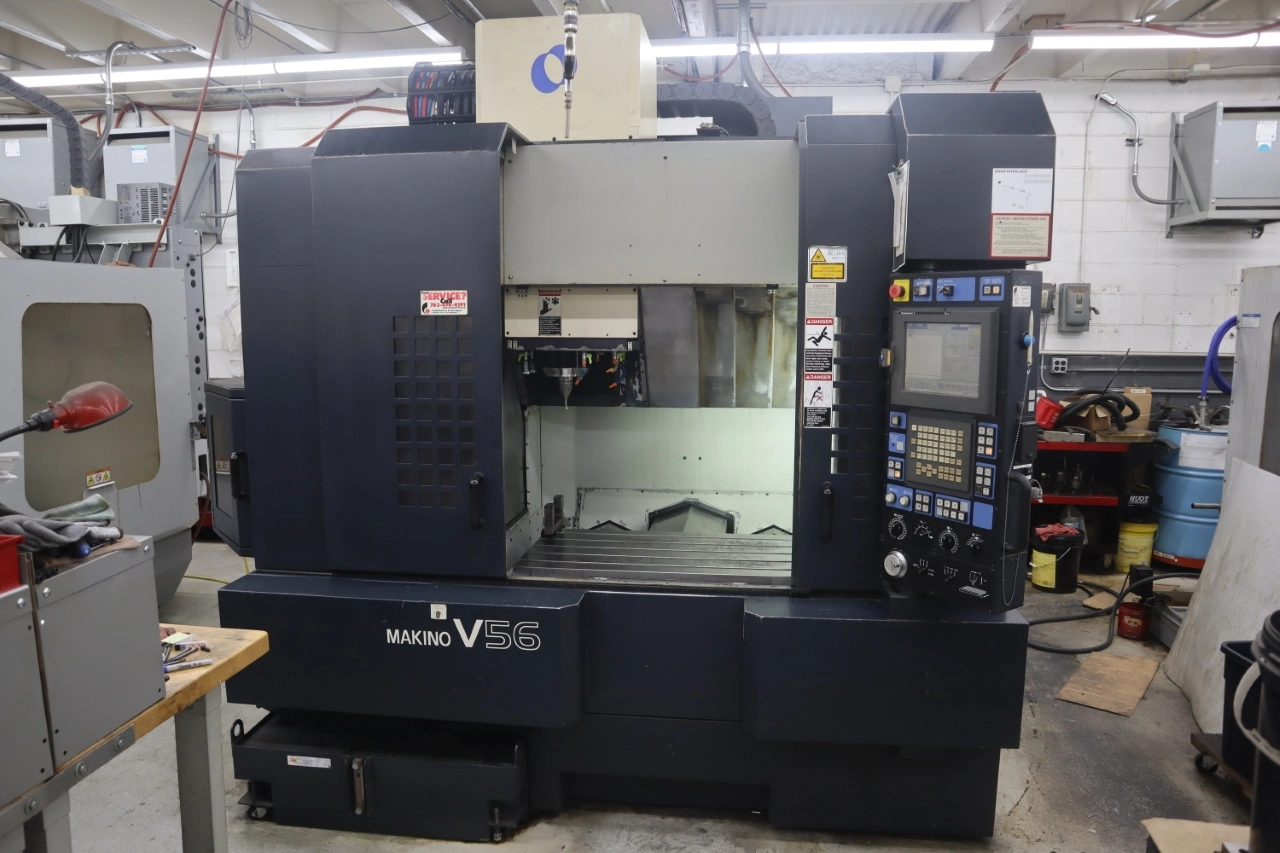

USED MAKINO V56
Overview

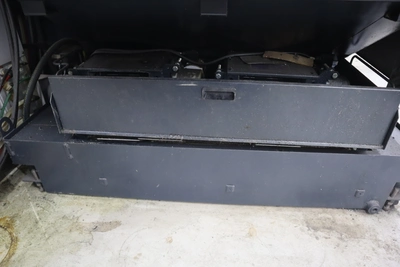

Fanuc Pro 5 CNC Control, 30,000 RPM Spindle, HSK-F63 Taper Spindle, Spindle Orientation, 25 Station Automatic Tool Changer, Through Spindle Air System and Through Spindle Coolant, 2-Built In High Speed Chip Conveyors (non lift up), SMC Air Dryer Unit, Oil Matic Oil Chiller Unit, Laser Tool Measurement Device, Rigid Tapping, 6 Nozzle Coolant System.
Specs

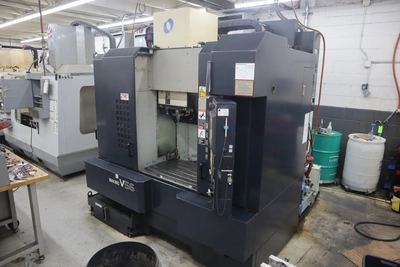

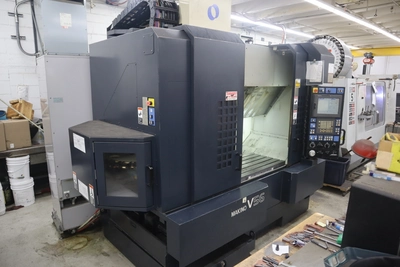

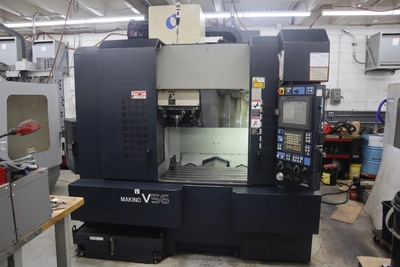

Lot 40: Makino V56 Vertical Machining Center, 30K RPM Spindle, 25 Station ATC, TSC, HSK-63 Taper
Electrics:
208 Volt 3 Phase, 142 Apm, 30 Hz
Main Unit Approx Weight: 0.00 lbs
Main Unit Dimensions (in inches): Length: 116.00" Width: 98.00" Height: 114.00"
Components:

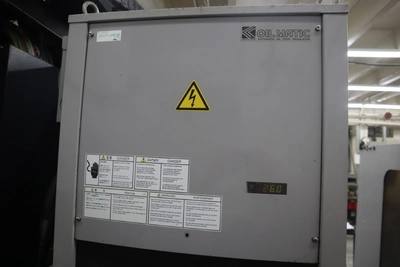

Oil Matic Oil Chiller: Length: 38.00" Width: 38.00" Height: 85.00"

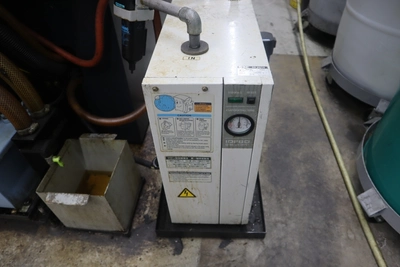

SMC Air Dryer: Length: 12.00" Width: 32.00" Height: 30.00"
Specs:

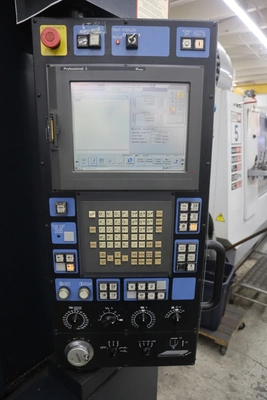

Machine Control: Fanuc Pro 5 CNC Control
Table Size: 1050mm x 550mm
Machine Travels (X/Y/Z): 900mm x 550mm x 450mm
Table Capacity: 800kg
Spindle Taper: HSK-F63 (High Speed)
Spindle Speeds: 30,000 Max RPM
Rapid Traverse Rate (X/Y/Z): 20,000 mm/min
Maximum Cutting Feed Rate: 1-20,000 mm/min

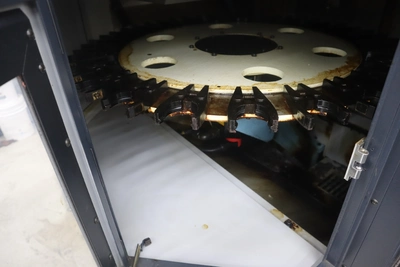

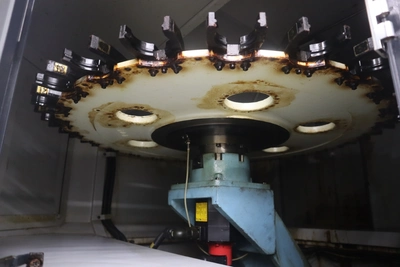

Tool Changer Style: Carousel
Tool Changer Capacity: 25 Stations
Max Tool Length: 300mm
Max Tool weight: 8kg
Spindle Drive: 25HP
Power Requirement: 208 Volt 3 Phase, 142 Amp
Seller Company: Northland Aluminum
Seller Contact: Auctions Machinesused.com Phone: (763) 745-1166
Location Contact: Auctions Machinesused.com Phone: (763) 745-1166
Inspection Date & Time: By Appointment Normal Business Hours Monday-Friday
Removal Dates and Times: This item must be removed between Wednesday, October 21, 2026 and Friday, October 30, 2026
Equipped With
Fanuc Pro 5 CNC Control, 30,000 RPM Spindle, HSK-F63 Taper Spindle, Spindle Orientation, 25 Station Automatic Tool Changer, Through Spindle Air System and Through Spindle Coolant, 2-Built In High Speed Chip Conveyors (non lift up), SMC Air Dryer Unit, Oil Matic Oil Chiller Unit, Laser Tool Measurement Device (Not Operational), Rigid Tapping, 6 Nozzle Coolant System.
