NEW ANVER L300M6-110-3/44

ANVER (NEW) 6-PAD VACUUM SHEET LIFTER AND STAND

CAPACITY - MILD STEEL - HORIZONTAL HANDLING
- 12' LENGTH
- 6' WIDTH
- 14 GAUGE TO 1" THICKNESS

COMPONENTS
- L300M6-100-3/44 LIFTING FRAME
- VPF-57-AC ELECTRIC VACUUM GENERATOR
- 72000038 PARKING STAND ASSEMBLY

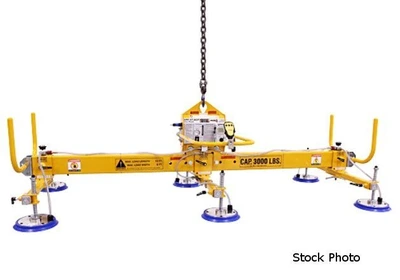

LIFTING FRAME
- 3,000 LB CAPACITY
- 12' X 6' SHEET SIZE X 14 GAUGE TO 1" STEEL

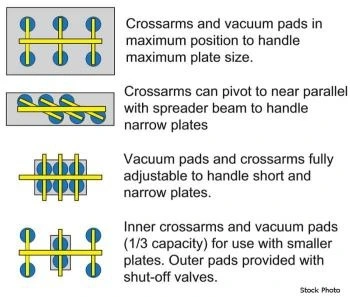

- 6 ADJUSTABLE PADS ON CROSSARMS
- 13" HEADROOM
- 110" SPREADER BEAM
- 44" CROSSARM
- 12" PAD DIAMETER
- 47" TO 120" OUTER PAD DISTANCE (LENGTH)
- 26" TO 53" OUTER PAD DISTANCE (WIDTH)
- SSR-122 SEAL
- VACUUM LEAKAGE SENSOR AND WARNING SYSTEM
- ATTACH/RELEASE SLIDE VALVE WITH SAFETY LOCK
- LOCKING HAND KNOBS ON THE ADJUSTABLE VACUUM PAD
- SLIDE ASSEMBLIES
- HANDLES CARBON AND STAINLESS STEEL SHEETS AND
PLATES
- MEETS US ANSI ASME STANDARD B30.20
- MEETS OSHA REQUIREMENTS

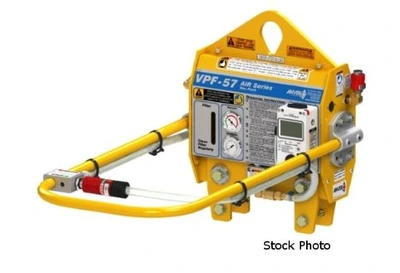

ELECTRICAL VACUUM GENERATOR
- 4,400
- 3" X 6" BEAMS
- REQUIRES 115 VOLT, 1 PHASE INCOMING POWER
- FRONT MOUNTED CONTROLS AND GAUGES
- ERGONOMIC ADJUSTABLE FRONT HANDLEBAR
- SLIDE CONTROL VAVLE W/PUSH-BUTTON SAFETY LOCK
- VACUUM CHECK VALVE AND RESERVOIR
- TWISTLOCK POWER CORD PLUG AND RECEPTICAL
- VACUUM LEAKAGE SENSING SYSTEM

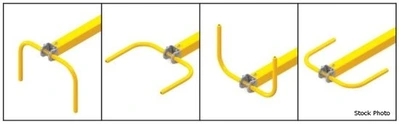

PARKING STAND ASSEMBLY
- 2,000 TO 4,400 LB CAPACITY
- FOR 3" X 6" BEAMS (PAIR) UP TO 190" LONG
- PS-250 BOLT-ON
- DOWN (PARKED) POSITION KEEPS SEALS OFF GROUND
- OUT, UP FOLDED-IN POSITIONS (WHEN OVER LOAD)
- ISO 9001 CERTIFIED

WEIGHTS
- 301 LB FRAME
- 302 LB VACUUM GENERATOR
- 32 LB PARKING STAND ASSEMBLY
