USED QUAD 4C/90

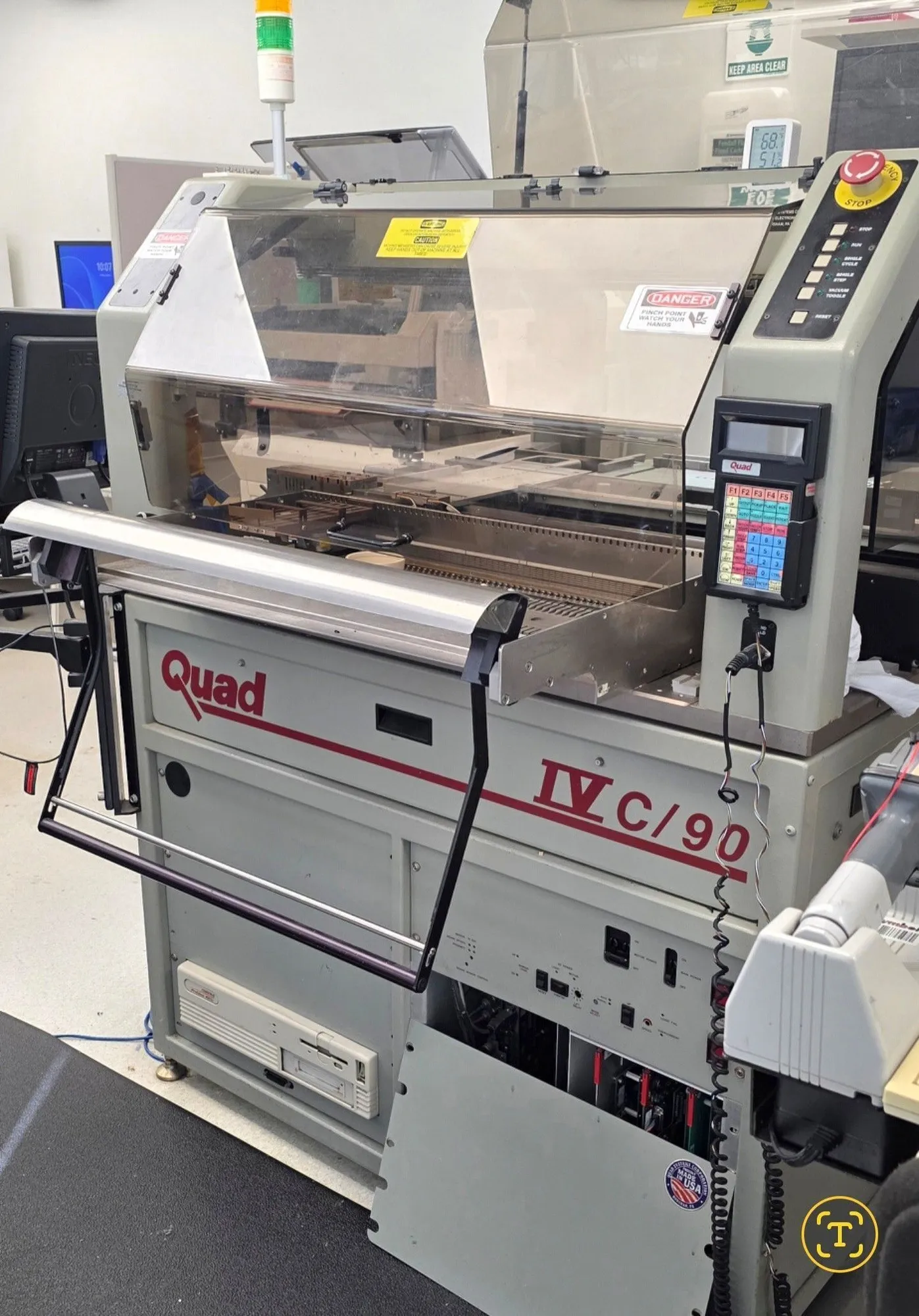

QUAD IV C/90 SMT Pick & Place Machine | 3,600 CPH | Fine Pitch | Compact | 1999

MACHINE OVERVIEW
For sale is a QUAD IV C/90 (also known as Quad 4C/90) surface mount pick and place machine manufactured in 1999 and in good working order. This compact, capable SMT placement system is built by PPM Inc. (formerly QUAD Systems) and is ideal for small-to-medium volume PCB assembly. Its small footprint and 110V single-phase power make it one of the most accessible industrial pick and place machines on the used market. Located in Princeton, NJ — available for pickup or freight.

KEY SPECIFICATIONS
- Placement Rate: Up to 3,600 CPH
- Component Range: 0402 passives through 3.00" square packages
- Max Board Size: 290mm × 1200mm (11.4" × 47.2")
- Vision / Alignment: Integrated downward-looking camera system
- Power: 110V single-phase (standard US outlet)
- Weight: ~1,300 lbs
- OS / Control: Windows-based control software
- Fine Pitch: Yes — suitable for modern component packages

FEATURES & BENEFITS
- Compact footprint — fits in smaller production environments or labs
- 110V single-phase power — no special electrical installation needed
- Precision alignment with integrated vision camera
- Industrial-grade construction for long-term durability
- Versatile component range from 0402 through large ICs
- Proven platform with active parts and service support

CONDITION & AVAILABILITY
- Year: 1999
- Condition: Good working order (small SMT)
- Location: Princeton, New Jersey
- Pickup: Available (local)
- Shipping: Available — contact us for a freight quote

IDEAL FOR
Small PCB assembly shops, electronics prototyping labs, makerspaces, hobbyists, and repair/rework operations needing affordable industrial-grade pick and place capability.

QUESTIONS?
Message us with any questions. Additional photos available. All sales are as-is.
