USED AMADA FBD-5020

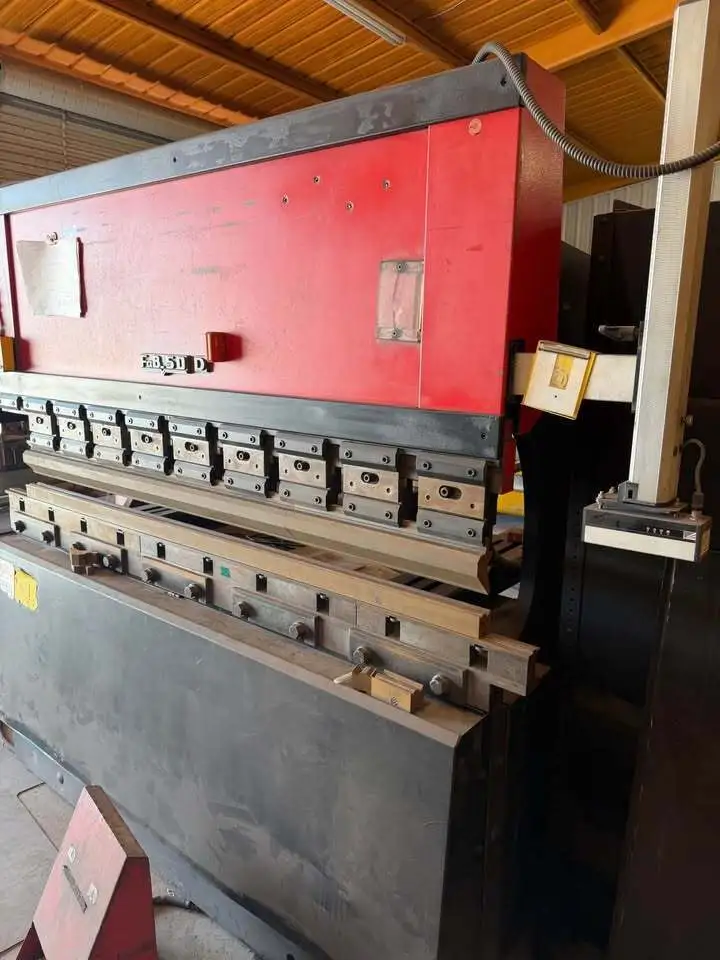

Amada FBD-5020 50 Ton CNC Hydraulic Press Brake

Tonnage Capacity: 50 U.S. Tons
Maximum Bending Length: 82.1 inches (2,085 mm)
Table Length: 78.7 inches (2,000 mm)
Distance Between Uprights: 66.9 inches (1,700 mm)
Throat Depth: 15.75 inches (400 mm)
Length of Stroke: 3.94 inches (100 mm)
Open Height: 14.57 inches (370 mm)
Speeds & Power Requirements
Approach Speed: 3.5 inches per second (90 mm/s)
Bending Speed: 0.35 inches per second (9 mm/s)
Return Speed: 3.5 inches per second (90 mm/s)
Main Motor: 5.0 HP (3.7 kW)Power Source: 230V / 460V, 3-Phase, 60Hz
Physical Footprint & Weight
Overall Length: 97 inches (2,465 mm)
Overall Width: 51 inches (1,300 mm)Overall Height: 83 inches (2,110 mm)
Machine Weight: Approx. 8,267 lbs (3,750 kg)
