USED QUAD QSP-2

MACHINE OVERVIEW

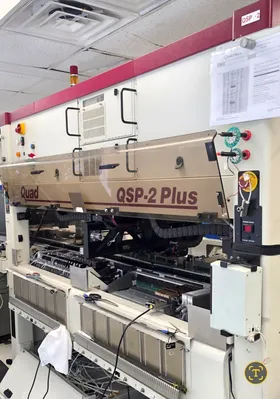

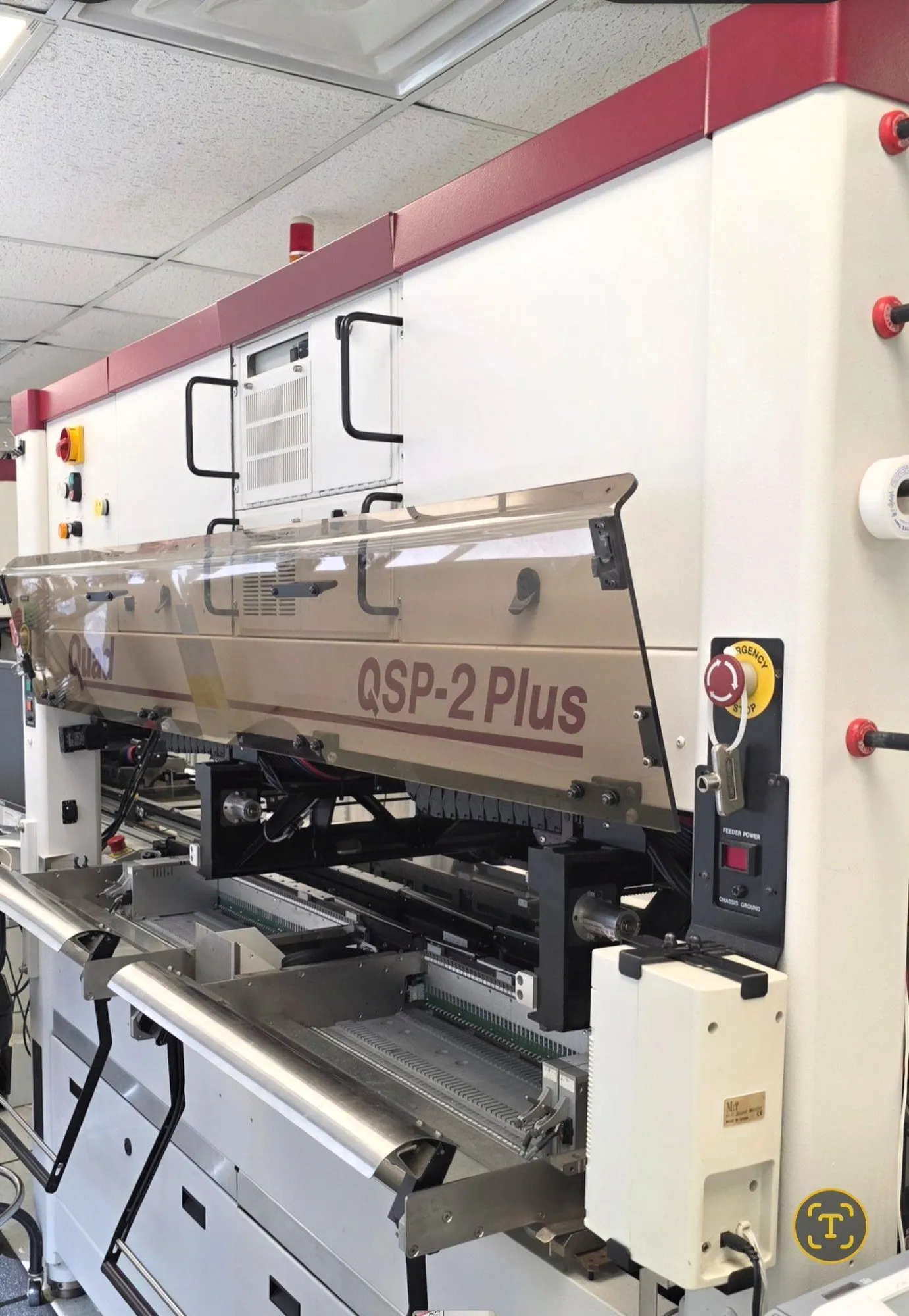

For sale is a QUAD QSP-2 Plus surface mount pick and place machine — a high-throughput dual-gantry system manufactured in 1999 and in good working condition. The QSP-2 Plus was one of QUAD Systems' (later PPM Inc.) top-performing placement platforms of its era, capable of 14,000 component placements per hour. Ideal for PCB assembly production environments, prototyping labs, or electronics manufacturers looking for a proven, cost-effective SMT solution. Located in Princeton, NJ — available for local pickup or we can assist with freight arrangements.

KEY SPECIFICATIONS
- Placement Rate: 14,000 CPH (components per hour)
- Architecture: Dual gantry with dual P4 placement heads
- Component Range: 0402 passives through BGA packages; fine pitch to 0.3mm
- Board Size: 3.2" × 3" minimum to 15" × 18" maximum
- Feeder Capacity: Up to 134 feeders
- Feeder Sizes: 8mm to 24mm tape feeders
- Vision System: VU7/VU8 integrated camera system with QuadAlign touchless centering
- Alignment: Real-time fiducial detection and placement verification
- Control: Windows 98, QSOFT software (recipe management, data logging)
- Power: 200-240 VAC, 50/60 Hz, ~15-20 kW

FEATURES & BENEFITS
- High-speed dual gantry for maximum throughput
- Fine pitch capable (0.3mm) — handles modern component packages
- 134-feeder capacity means full production setups are possible
- QuadAlign patent-pending touchless vision centering for precision placement
- Real-time diagnostics and recipe storage via QSOFT control software
- Robust industrial construction for long-term reliability

CONDITION & AVAILABILITY
- Year: 1999
- Condition: Good working condition
- Location: Princeton, New Jersey
- Pickup: Available (local)
- Shipping: Available — contact us for a freight quote
