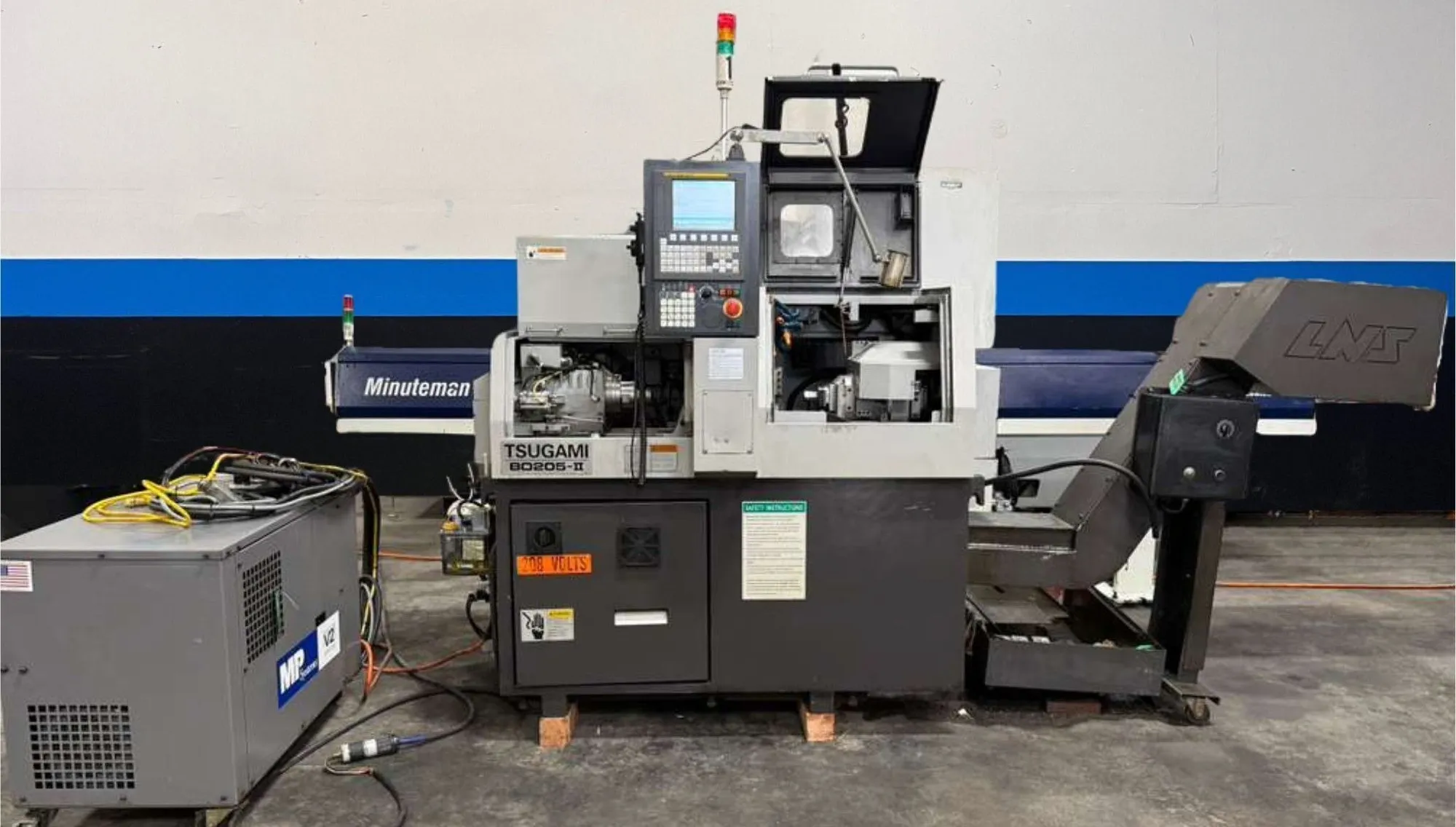

USED 2013 TSUGAMI BO-205II

General Specifications:
Features:
Fanuc Oi-TD CNC Control
Controlled Axes (Liner Axes) X1, X2, Y1, Z1, Z2
C & Y Axis Capable
Live Tools Capable
Long Parts Capable
Main & Back Spindle Synchronization
High Speed Rapid Travers: 1260 IPM (X1: 945 IPM)
Automatic Lubrication System

Capacity:
Max Turning Diameter: 0.79″ (20 mm)
Max Turning Length: 8.3″ (210 mm)
Max Turning Length with Gripping Unit: 6.69″ (170mm)
Max Bar Capacity: 0.79″ (20 mm)
Total Tool Storage Capacity: 21 Tools
Max. Main Spindle Drilling Diameter: 0.39″ (10 mm)
Max. Main Spindle Tapping Diameter: M10 x 1.5
Max. Back Spindle Chucking Diameter: 0.79″ (20 mm)
Max. Back Spindle Drilling Diameter: 0.31″ (8 mm)
Max. Back Spindle Tapping Diameter: M8 x 1.25
Max. Cross Drilling Diameter: 0.236 ( 6 mm) (option)
Max. Cross Tapping Diameter: M5 x 0.8 (option)

Spindle:
Main Spindle Indexing: 360° (Full C-Axis)
Main Spindle Bore: 0.79″ (20 mm)
Main Spindle Speed: 200 – 10000 RPM
Back Spindle Motor: 3.7 kw
Back Spindle Indexing: 360° (Full C-Axis)
Back Spindle Speed: 200 – 12000 RPM
Back Spindle Motor: 2.2 kw

Total Tool Storage Capacity:
OD Tools: 9
ID Tools: 4
Cross Rotary Tools: 2, 3, 4 (Optional)
Front Tool Post: 4
Back Tool Post: 4

General:
Power Source: AC 220v / 3-Phase /60 Hz
Power Requirement: 11 kva
Overall Dimensions: 64.56″ X 42.51″ X 66.93″ High without Bar Feeder
Weight: 3,747 lbs. Approx.
