USED 2020 DURMA ADR 30100

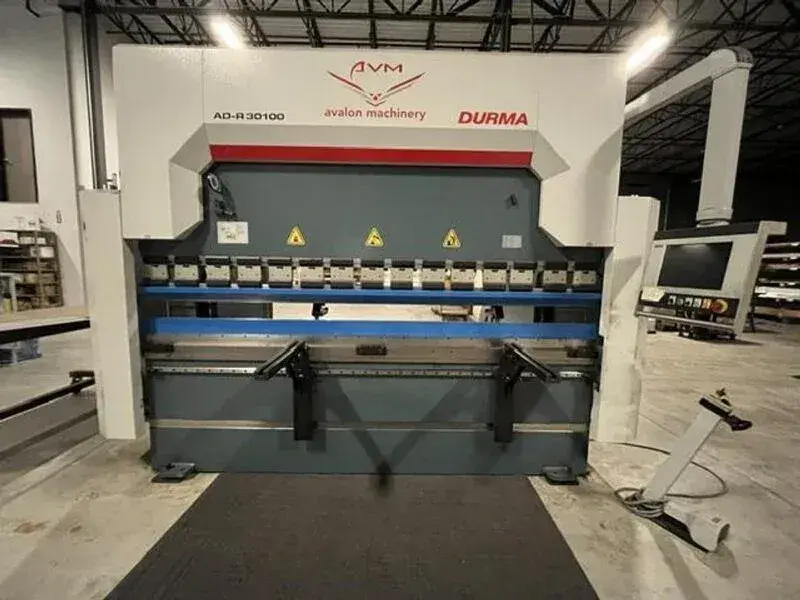

Durma ADR30100 100 Ton Hydraulic Press Brake (2020)

Capacity (Bending Power): 100 Metric Tons / 110 US Tons
Bending Length: 3,050 mm / 120"
Distance Between Columns: 2,600 mm / 102.36"Stroke: 265 mm / 10.43"Daylight: 530 mm / 20.8"
Throat Depth: 410 mm / 16.14"
Table Height: 900 mm / 35.25"Table Width: 104 mm / 4"
Operating Speeds & Power
Approach Speed: 7.87 inches per second (IPS)
Bending Speed: 0.39 inches per second (IPS)
Return Speed: 4.72 inches per second (IPS)
Motor Power: 11 kW / 15 HP
Oil Capacity: 100 Liters
Dimensions & Weight
Length: 4,200 mm / 165.3"Width: 1,670 mm / 65.7"Height: 2,750 mm / 108.2"
Total Machine Weight: 9,250 kg / 20,392 lbs

Core Components & Features
CNC Backgauge System: Features motorized X-axis backgauge travel of 650 mm (25.6") alongside Y1 and Y2 cylinder controls.Material Support: Standard setups include two adjustable front sheet support arms to aid operator material handling.Safety Integration: Often integrated with safety fencing, CE-norm compliant hydraulic/electric overrides, or laser light barriers
