USED 2009 Papayannakis Bros S.A. KF 450

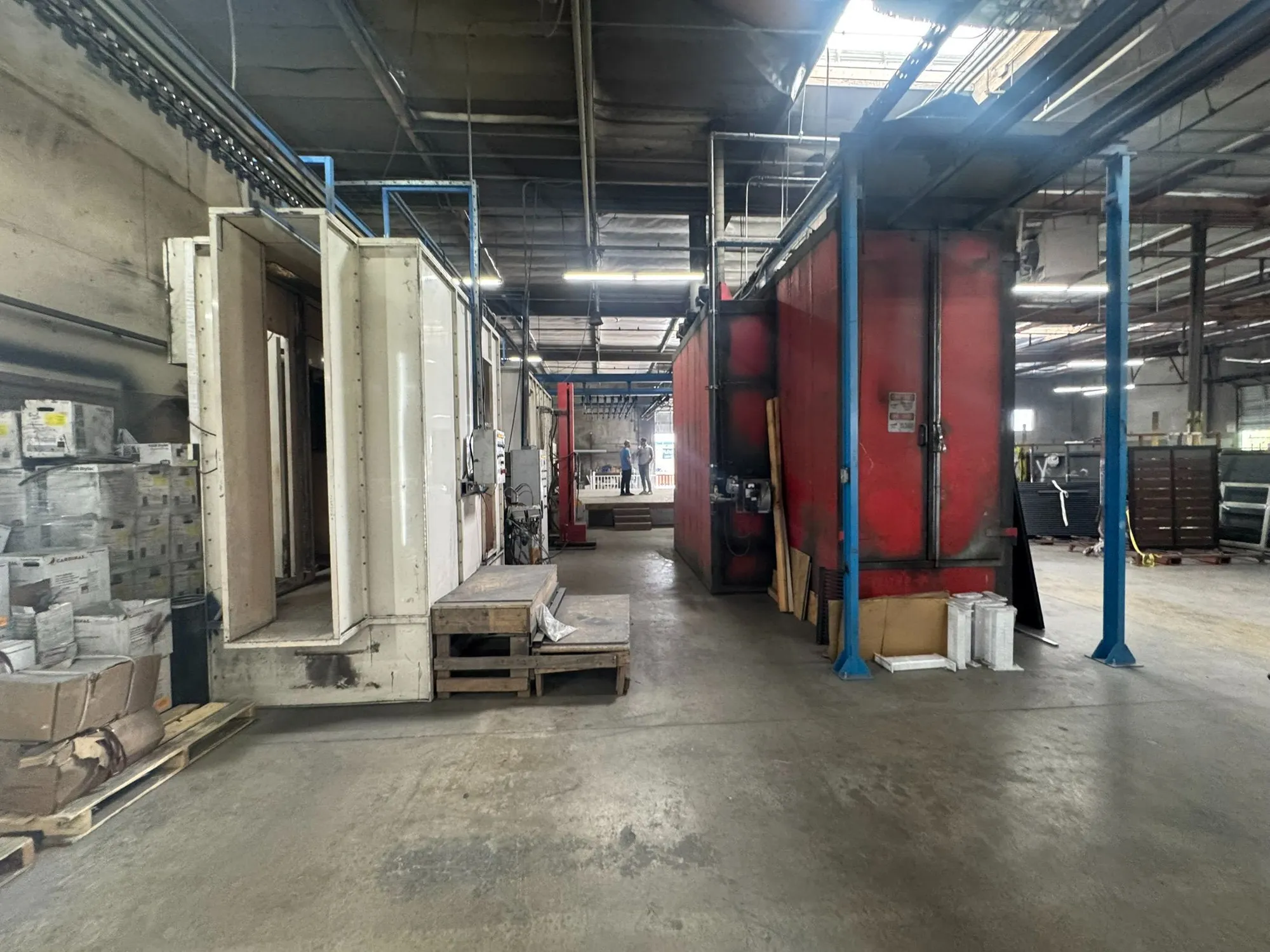

INDUSTRIAL POWDER COATING SYSTEM – COMPLETE PRODUCTION LINE

Industrial powder coating system designed for coating large metal parts. System includes curing oven, stainless-steel powder booth with cyclone recovery, filtration, manual powder coating equipment, automatic guns and conveyor system.

Powder Coating Curing Oven

Box-type curing oven
Approx. 7,020 mm (23 ft) long
Approx. 1,640 mm (5.4 ft) wide
Designed for parts up to 2,000 mm high
Operating temperature: approximately 200°C ±5%
Approx. 300 Mcal/h thermal capacity
10 HP installed power
Triple-path stainless-steel boiler
Heavy-duty circulation system with 3 × 3 HP fans
Temperature sensors and control systems
Heavy insulated construction for reduced heat loss

Stainless Steel Powder Booth & Recovery

Stainless-steel powder coating booth
High-efficiency antimagnetic stainless-steel cyclone
Pneumatic powder recovery system
Dense-phase powder conveying system
Powder tank recovery
Automatic filter cleaning
After-filter system
Designed to minimize powder loss

Powder Application Equipment

2 GEMA OptiFlex Pro B Dual manual gun systems
2 OptiStar CG21 controllers
2 GM04 manual guns
2 IG07 injectors
2 fluidized suction tubes
4 GEMA automatic guns
Automatic and manual application capability

Conveyor System

Semi-automatic overhead conveyor
Adjustable chain conveyor
10 hanging bars
20 high-temperature-wheel trolleys
Maximum suspension weight: 120 kg per bar
8-wheel carrier system for oven
Oven carrier capacity up to 1,400 kg
Heavy-duty support beams and structures
Designed for operation up to 220°C
WORKPIECE CAPACITY

Designed for metal parts up to approximately:

6,500 mm length
1,300 mm width
2,000 mm height

The system is designed for organic powder coating applications.

ELECTRICAL
110/120V single phase controls/connections as specified
208/240V 3-phase + neutral + ground
60 Hz
IP54 equipment protection specified
