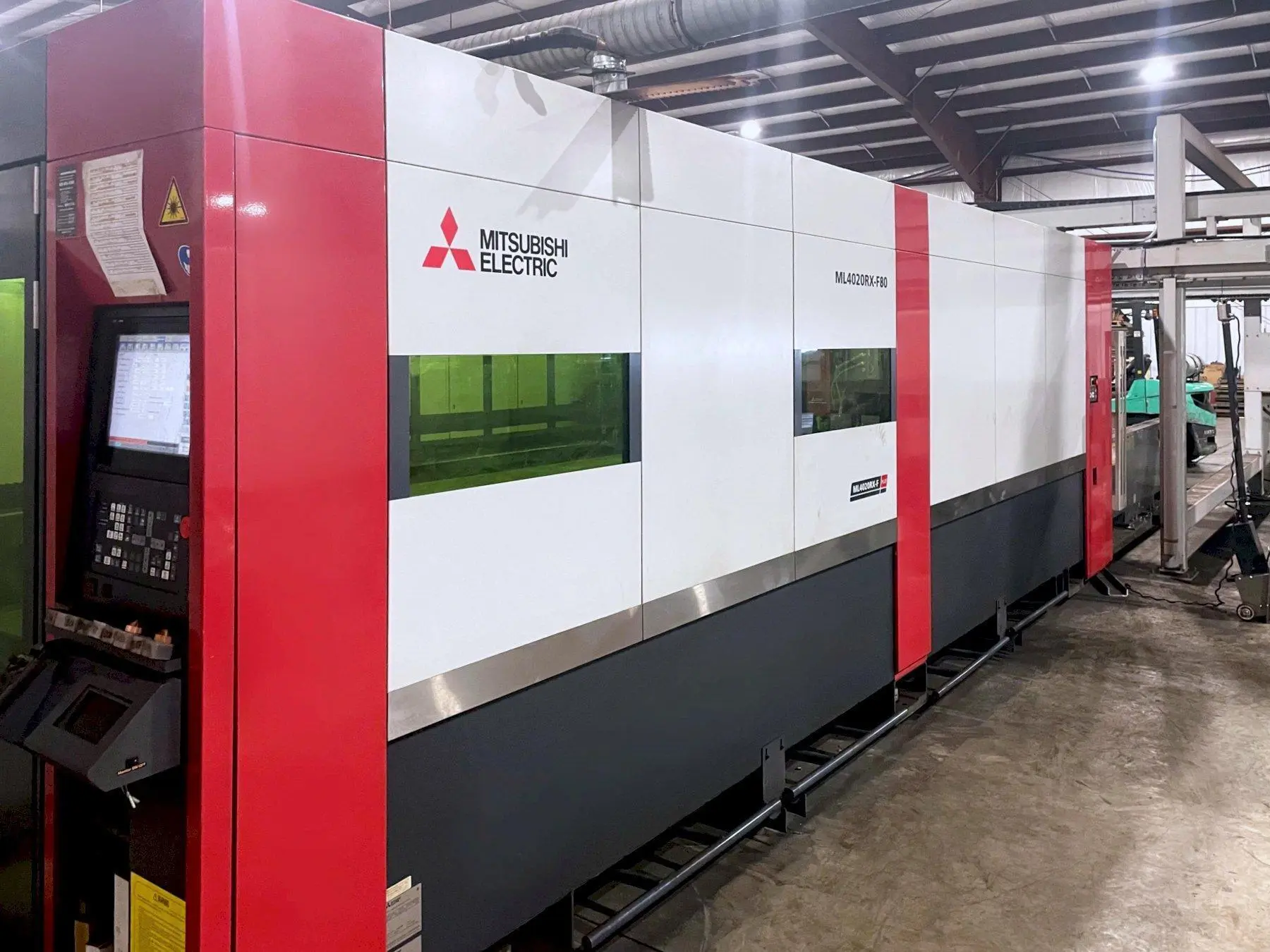

USED 2018 MITSUBISHI ML4020RX-F80(S)
Overview
Description
MITSUBISHI ML4020RX-F80 Laser Cutter, 2018. Equipped with M700 control, IPG 8kW laser, dual pallet shuttle tables, touch screen, and automation-ready features. Cutting range: 82.67” X 161.41” X 5.9”. Max feed rate: 1970 IPM. Ideal for efficient production.
Specifications
| Sheet-W | 81.1" | 2,059.9 mm |
|---|---|---|
| Sheet-L | 159.44" | 4,049.8 mm |
| Wattage | 8000 w | 8,000 W |
| IPM | 1970 ipm | |
| X | 82.67" | 2,099.8 mm |
| Y | 161.41" | 4,099.8 mm |
| Z | 5.9" | 149.86 mm |
| Control | CNC (Mitsubishi M700 Series Control) | CNC (Mitsubishi M700 Series Control) |
| Dimensions | 516" X 138" X 91" | 516" X 138" X 91" |
| Weight | 33069 | 33069 |
Control: Mitsubishi M700 Series Control
Resonator Type: Fiber
Rated Power (Output): 8 kW
Processing Head: Zoom Head
Max. Working Area: 81.10” X 159.44”
Cutting Range (X,Y,Z): 82.67”/161.41”/5.90”
Table Pass Height: 34.6"
Max. Table Load: 3,637 Lbs.
Machine Design: Mobile Optical System
Sheet Processing: 2 Exchangeable Tables
Simul. Speed X&Y Axis: 5,511 IPM
Max Processing Feed Rate: 1,970 IPM
Pos. Accuracy (X/Y Axis): .00196”/19.685”
Pos. Repeatability (X&Y Axis): .000393”
Max. Material Thickness Mild Steel: 1.10"
Max. Material Thickness Stainless: .98”
Max. Material Thickness Aluminum: .98”
Max. Material Thickness Brass: .47”
Max. Material Thickness Copper: .24”
Startup Time: 3 Min.
Voltage: 208V/3 Phase 60 Hz
Machine Weight: 33,069 Lbs.
Dimensions: 516" X 138” X 91”
Equipped With
Mitsubishi M700 Series Control
15” Touch Screen
64-Bit Windows XP Operating System
IPG 8,000 Watt Laser Source
Zoom Head
Dual Pallet Shuttle Tables
USB/Ethernet LAN/Computer Link
ECO Mode / ECO Cut
Automation Ready
Automatic Oiler
Chiller Unit
