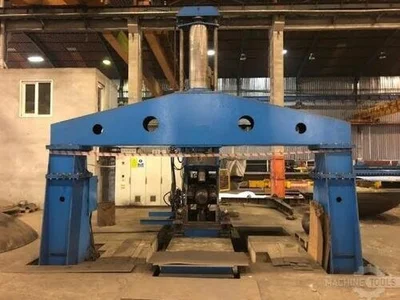

USED 1987 SCHLEIFSTEIN KBOL 4022
Overview
Description
Range off edge radius Manual 20 - 500
Range off edge radius Automatic 150 - 500
Hydraulic Controllable forming roll drive
Hydraulic displacement drive
Clamping device without hole
Max. pressure manipulator 2000 Psi / 140 bar
Max. pressure press 5700 Psi / 400 bar
Max. speed forming roll 170 M/Min
Basket bottem
Knocker bottom
Pressure vessel bottom
Boiler bottoms
Flat floor
Plate base
diffuser bottom
Tank bottom
Tank bottom
Radar reflectors
Engine parts
Dispense air
Silo hoppers
Cooker hoods
Container parts
Hemispheres
Specifications
Max. workpiece: 4600 Ø
Maximum sheet thickness: 22 mm
Max. dishing radius: 700 mm
Min. product Ø: 800
Min. plate thickness: 4 mm
Min. dishing radius: 35 mm
Power: 90 kW
Length: 7800 mm
Width: 6000 mm
Height: 3900 mm
Weight: 42000 kg
