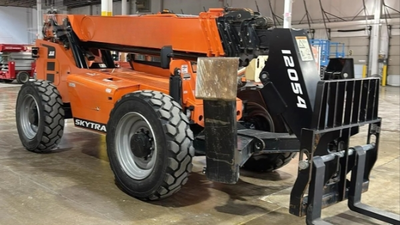

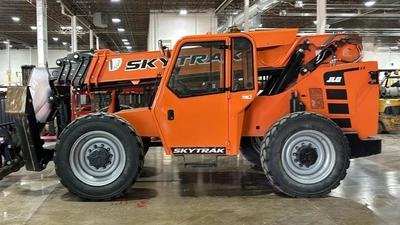

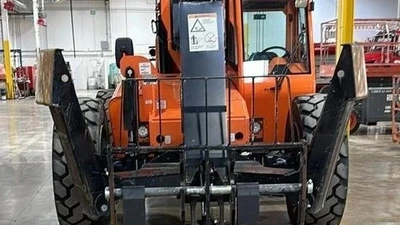

USED 2022 SkyTrak 12054

Cab, Performance: Rated Capacity: 12,000 lb (5,443 kg) Maximum Lift Height: 53 ft 2 in (16.2 m) Load at Max Height: 5,000 lb (2,268 kg) Maximum Forward Reach: 38 ft 10 in (11.8 m) Load at Max Reach: 3,500 lb (1,588 kg) Frame Leveling: 10° Lift Speed (boom retracted): Up: 17 sec Down: 16 sec Boom Speed: Extended: 16 sec Retracted: 15.5 sec Top Travel Speed (4-Speed): 18.2 mph (29.3 km/h) Drawbar Pull (loaded): 30,000 lb (133.5 kN) Outside Turning Radius: 166 in (4.21 m) Operating Weight: 30,357 lb (13,770 kg) Dimensions: Machine Length: 21 ft (6.4 m) Machine Width: 8 ft 6 in (2.54 m) Machine Height: 8 ft 4 in (2.54 m) Wheelbase: 10 ft (3.04 m) Ground Clearance: 1 ft 6 in (0.46 m) Power Source: Engine Manufacturer: Cummins Engine Model: QSF3.8L Tier 4 Final Engine Horsepower: 110 hp (82.06 kW) Maximum Engine RPM: 2,500 rpm Fuel Tank Capacity: 35 gal (132.49 L) Tires: Size: 400/75-28 Key Features: Operator Comfort: Single joystick with integrated armrest; optional air-conditioned cab Stabilization: Stabil-Trak rear axle stabilization system for enhanced load placement confidence Maintenance: Optional 74 hp engine available that meets Tier 4 Final regulations without requiring Diesel Exhaust Fluid (DEF), reducing maintenance costs
