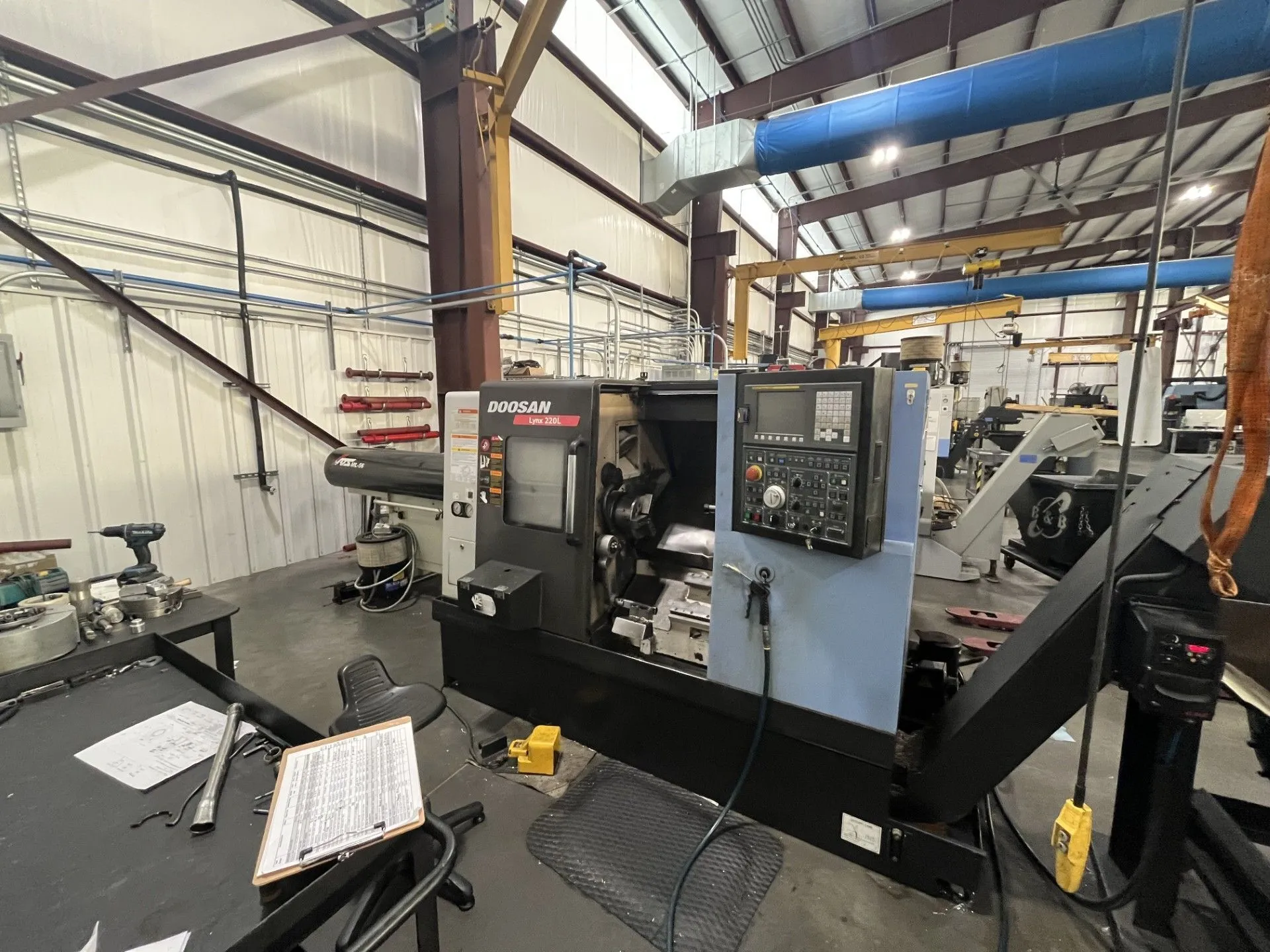

20.1" X 20.7" Doosan CNC Lathe Model Lynx 220 LC New 2014
| Swing | 21.1" | 535.94 mm |
| Center Distance | 20.7" | 525.78 mm |
| Turning Dia | 12.6" | 320.04 mm |
| Max RPM | 4,500 RPM | 4,500 RPM |
| Bar Capacity | 2.5" | 63.5 mm |
| Chuck Size | 8" | 203.2 mm |
| Tailstock | Yes | Yes |
| Power | 20 hp | 14.9 kW |
| # Axis | 2 | 2 |
| Dimensions | R-L 90" X F-B 72" X Height 65.25" | R-L 90" X F-B 72" X Height 65.25" |
| Weight | 7,000 Lbs | 7,000 Lbs |
Control.......................................Fanuc
Swing Over Bed................................20.1″
Max Turning Length............................20.7″
Max Turning Diameter..........................12.6″
X-Axis Travel.................................6.9″
Z-Axis Travel.................................21.6″
Spindle Speed.................................4,500 RPM
Spindle Bar / Bore Capacity...................2.68″ Bar / 2.99″ Bore
Spindle Nose..................................A2-6
Chuck Size....................................8"
Turret Stations...............................12 Stations
Spindle Motor.................................20 HP
Machine Dimensions............................R-L 90" X F-B 72"
Machine Height................................65.24"
Machine Weight................................7,000 LBS
Chip Conveyor.................................R-L 103" x F-B 18" x Height 63"
Coolant Tank..................................R-L 96"x F-B 15" x Height 45"
ATS Bar-Feed..................................Yes
Note:
Machine in plant under power.
