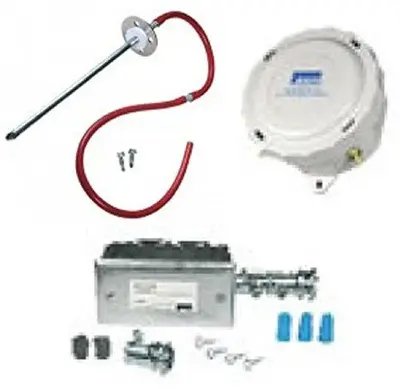

Bapi ZPS-20-SR05-EU-ST-FMK Zone Pressure Sensor, 0-5" WC, Static Pressure Probe [New]

Output Range: 4 to 20 mA. Pressure Range: 0 to 5.00 (inches W.C.). Enclosure Style: Weather Tight Enclosure - IP66 rated ABS Polymer Enclosure. Static Pressure Probe: Static Pressure Measurement Probe Included (Not Attached). Mounting Option: Field Mounting Kit. BAPI's Zone Pressure Transmitter is an accurate, rugged and economical solution for measuring and reporting building pressures. The heart of the unit is a micro-machined silicon pressure sensor with excellent accuracy, repeatability and stability even at low pressures. The LCD model offers an additional level of troubleshooting by displaying the actual differential pressure over the entire operational range regardless of which individual pressure range is selected for output to the BAS. The unit comes in a rugged, IP66-rated BAPI-Box enclosure with short circuit proof outputs and reverse polarity protected inputs. The 3 Output Ranges and 10 Pressure Ranges are all field selectable with DIP switches. 10 Pressure Ranges and 3 Outputs, All Field Selectable. Standard, Low or High Range Water Column or Pascal. Watertight BAPI-Box Enclosure with Optional Display.. BAPI. Building Automation Products Inc. ZPS-20-SR05-EU-ST-FMK.
