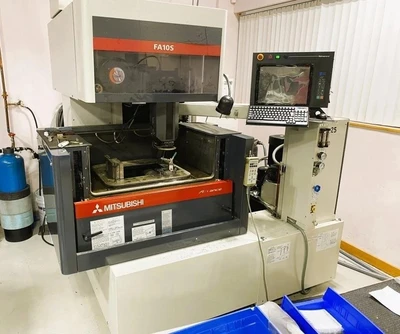

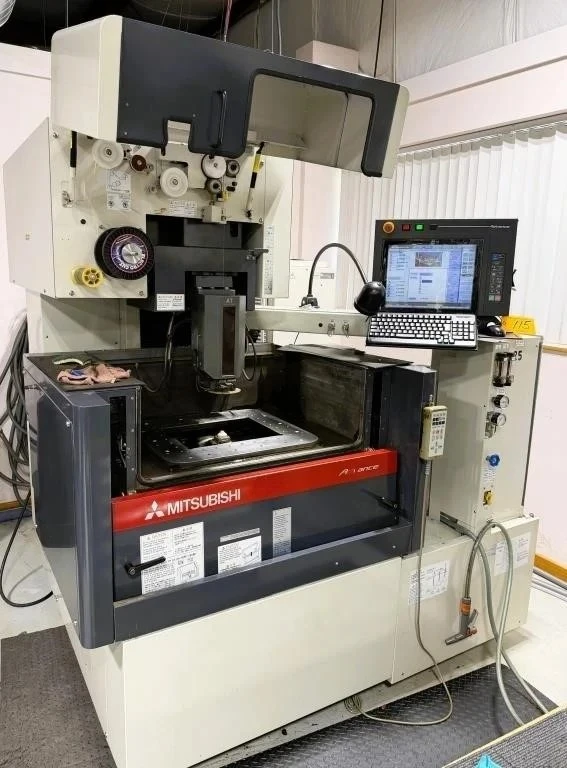

USED 2012 Mitsubishi FA10S, 2012, AWT, 4-AXIS, M700 CNC

            Mitsubishi FA CNC Wire EDM,

                 4-AXIS (X/Y/UV)

            S/N: 57D1A124    NEW: 2012

Specifications:

X Travel .................. 13.8"

Y Travel .................. 9.8"

Z Travel .................. 8.7"

Machine Travels (U x V) ... 1.3" x 1.3"

Max Taper Angle ........... 15 Deg. @ 3.9"

Wire Diameter ............. 0.004" to 0.012"

Auto Threading (Yes/No .... Yes

Max Workpiece Dimensions .. 31.5" x 23.6" x 8.5"

Max Workpiece Weight ...... 1,100 lbs

Worktank Capacity, Fluid .. 116 Gals.

Table Dimensions .......... 23.2" x 20.2"

Equipped with:

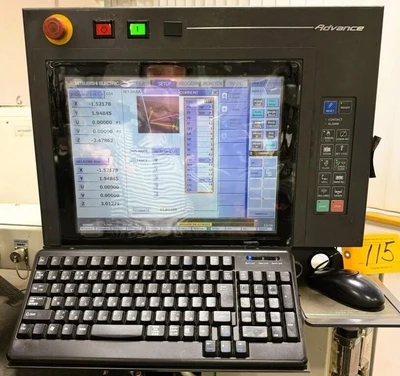

MITSUBISHI ADVANCE M700 PLUS CNC Control

3D Advance

15" LCD

Automatic Wire Threading (AT2)

Mitsubishi Unit Cooler

Wired for 3/60/220 Volts, 13.5 KVA

Dimensions:......... 82"W x 97"D x "H

                 See Brochure (below) for Outline

                      and Layout Drawings

Weight:.................... 5,000 lbs

Special Note:

Please see the following BROCHURE below,

 it is very detailed.

 https://dl.mitsubishielectric.com/dl/fa/document/catalog/edm/k-kl2-0-c0069/K-KL2-0-C0069-B.pdf

** FOB Our Harrison, NJ warehouse **

** De-Installed prior to shipment, by our staff **

** Exceptional Condition & Appearance **

FOR MORE INFORMATION: Call Andy at 973-497-7600
