USED 2018 OKK HMC500
Overview

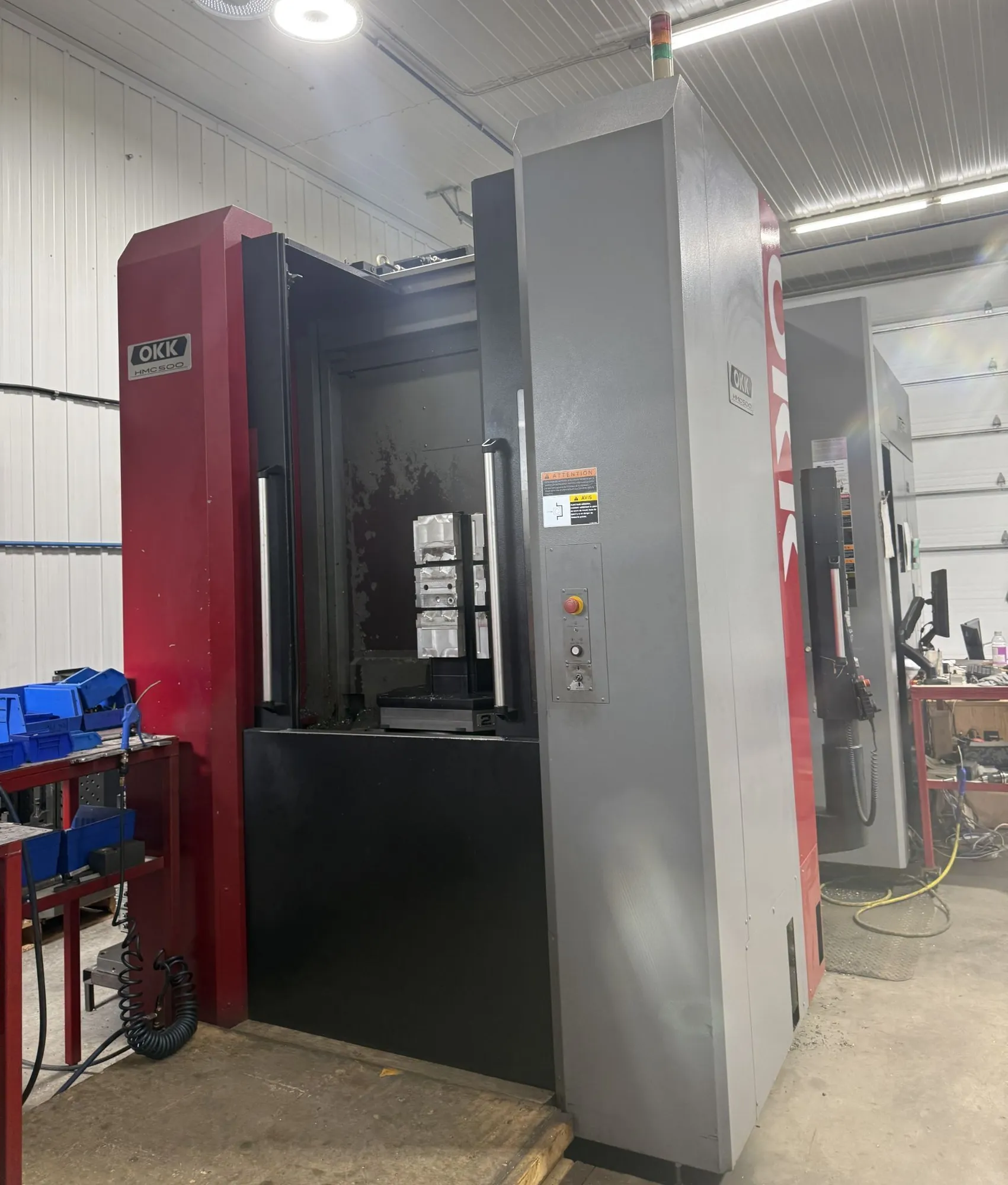

2018 OKK HMC500 CNC Horizontal Machining Center, 15K RPM, 50 HP, CAT-40, 120 ATC, Fanuc F31iB, X/Y/Z travel: 29.92/29.92/31.5, 4-axis, 1,543 lb pallet capacity, 13533 hours, cutting time: 3591 hours.
Specs
2018 OKK HMC500 CNC Horizontal Machining Center, with Fanuc F31iB control
Manufacturer: OKK
Model: HMC 500 (4 Axis)
Year: 2018 (INSTALLED IN 2019)
X-Axis Travel 29.9"
Y-Axis Travel 29.9"
Z-Axis Travel 31.5"
Rapid Traverse Rate (X/Y/Z) 2,480 ipm
Pallet Width 19.7"
Pallet Length 19.7"
Pallet Capacity 1,543 pounds
Pallet Indexing (B-Axis) 0.001°
EQUIPPED WITH:
15,000RPM 50HP CAT40 Spindle BIG Plus
BRT (Rotary Table)
Rear Discharge Lift Up Chip Conveyor for Steel
Lift-up chip conveyor LNSTurbo MF2 Dual hinge and drag belt with filter drum
116 tool magazine retrofit from 60 at the customer
1000psi coolant the spindle
T1-B Renishaw OMP60 & Metrol pop up ATLM
NCOP Package for F31iB
Data server with Ethernet interface - 1.0 Gigabyte
POWER ON: 13533 HOURS
CUTTING TIME: 3591 HOURS
Approx. Dimensions: 191" x 108" x 142" - TO BE CONFIRMED!
Weight 23,200 LBS - TO BE CONFIRMED!
EXCELLENT CONDITION! VERY LOW HOURS!!!
