Used 14,000 Gallon 316L Stainless Steel Vertical Tank – Erected Steel Products, API-650, Side Agitator

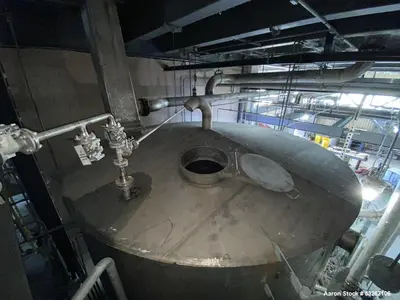

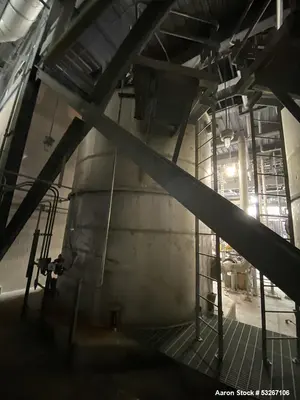

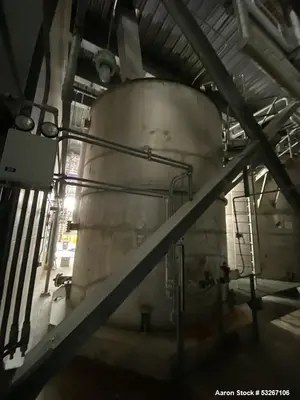

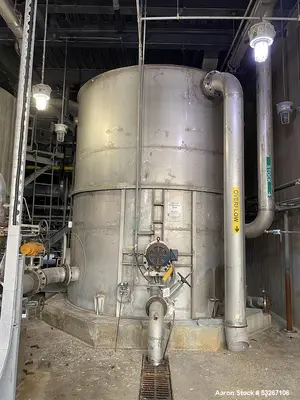

Used Erected Steel Products 316L Stainless Steel Vertical Tank, 14,000 gallons. 13' diameter X 15' high straight side. Rated ATMOS @ 20 to 160 F. S/N 1172. API-650 standard. Slight cone top, flat bottom with ramped side opposite the agitator. Top fittings: 20" manway, (1) 6" vent, (1) 2", and (1) 16" X 16" feed inlet. 24" side bottom manway, (1) 2.5", (2) 10", (1) 3", and (1) 6" side inlet and outlets. (2) 8" side bottom outlets. Built 2012.

Used Equipment Facts About This Machine
🏭 Manufacturer

Erected Steel Products
A trusted U.S. manufacturer of atmospheric and pressure-rated storage tanks built to API, ASME, and sanitary standards for industrial and chemical use.

📝 Description

This Erected Steel Products vertical tank, built in 2012, features a 14,000-gallon capacity and is constructed of 316L stainless steel, offering excellent corrosion resistance. It conforms to API-650 standards and is rated for atmospheric pressure (ATMOS) at 20°F to 160°F. The tank has a 13' diameter with a 15' straight side height, making it ideal for large-volume storage needs in chemical, food, and water processing industries.

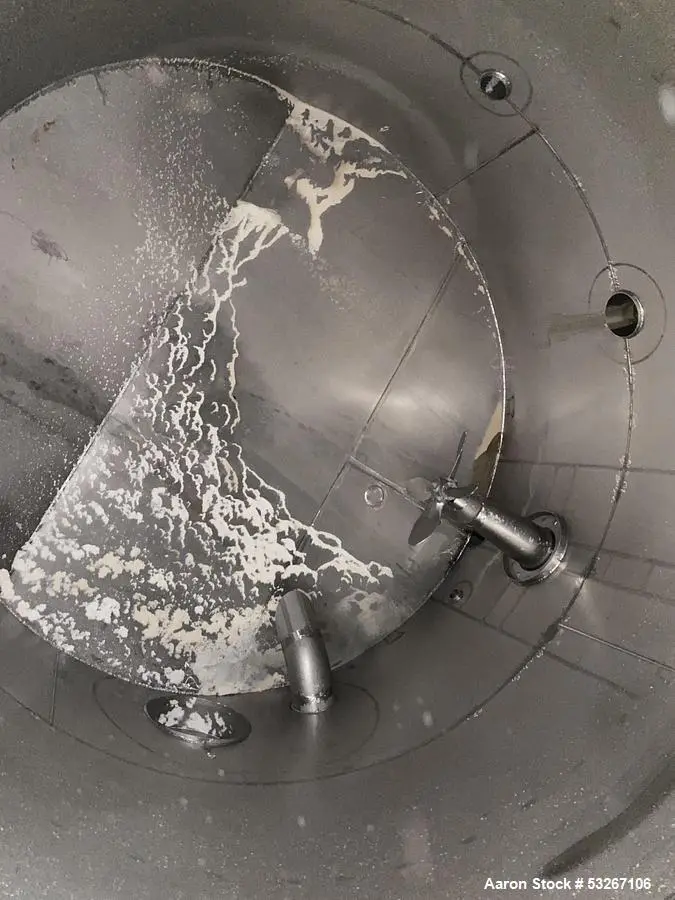

The tank includes a slightly coned top, flat bottom, and a ramped side opposite the agitator for effective drainage. A Sulzer Model STF-30.20 side-entering agitator, driven by a 20 HP motor (3-phase, 460V), ensures efficient mixing. The tank is fully equipped with a variety of top and side fittings, including manways, vents, inlets, and outlets for maximum utility and integration.

⚙️ Specifications

Manufacturer: Erected Steel Products

Capacity: 14,000 gallons

Material: 316L Stainless Steel

Design Standard: API-650

Shape: Vertical tank with cone top and flat bottom

Straight Side Height: 15 feet

Diameter: 13 feet

Pressure Rating: Atmospheric (ATMOS) @ 20°F to 160°F

Top Fittings:

20" manway

(1) 6" vent

(1) 2" fitting

(1) 16" x 16" feed inlet

Bottom/Side Fittings:

24" side bottom manway

(1) 2.5", (2) 10", (1) 3", (1) 6" side inlets/outlets

(2) 8" side bottom outlets

Agitator:

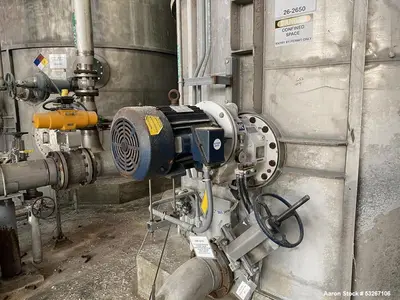

Sulzer STF-30.20 side-entry mixer

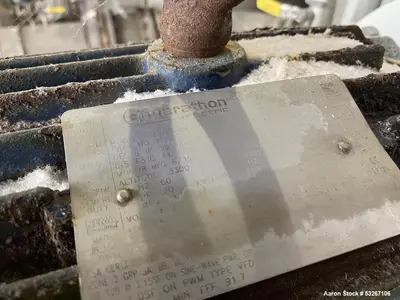

Powered by 20 HP motor (3/60/460V)

Serial Number: 1172

Year Built: 2012

🧩 Applications

Excellent for storage and mixing in:

Chemical batch and blending operations

Beverage or liquid food ingredient processing

Biotech and pharmaceutical fluid storage

Cosmetic and personal care formulations

Industrial wastewater and effluent treatment

Large-scale clean water holding

Sanitary process and transfer buffer tanks

Mixing of bulk liquid fertilizers

Food-grade or pharmaceutical CIP tanks

Brewing or fermentation support tanks

🔧 What Might This Be Used For?

Blending food or beverage ingredients with agitation

Holding large volumes of chemical solutions

Buffer tank for purified water in pharmaceutical production

Mixing cosmetic emulsions or surfactants

Staging tank for fertilizer or ag product storage

Cooling or holding heated product between batch steps

Treating wastewater with internal side mixing

Storing liquid sanitizers or cleaning solutions

Fermentation or ingredient prep in food & beverage plants

General-purpose stainless tank for sanitary operations
