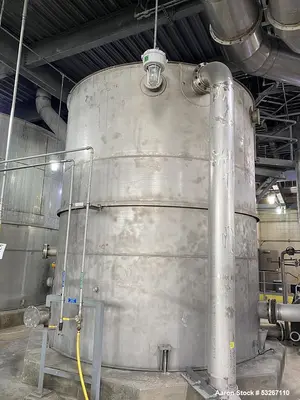

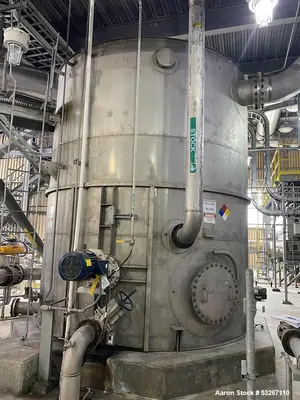

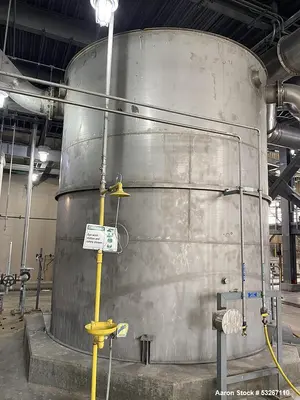

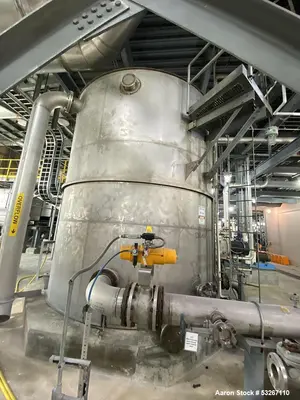

Used 14,000 Gallon 316L Stainless Steel Vertical Tank – Erected Steel Products, API-650, Agitated, Built 2012

Used 14,000 gallon Erected Steel Products 316L Stainless Steel Vertical Tank. 13' diameter X 15' high straight side. Rated ATMOS @ 20 to 160 F. S/N 1169. API-650 standard. Slight cone top, flat bottom with ramped side opposite the agitator. Top fittings: 20" manway, and (1) 6" vent. 24" side bottom manway. (1) 12" and (1) 24" side top inlets. (1) 6" , (1) 8", and (1) 10" side inlets. (1) 2.5", (2) 8", (1) 3", and (1)4" side bottom outlets. Built 2012.

Used Equipment Facts About This Machine
🏭 Manufacturer

Erected Steel Products
An established manufacturer of heavy-duty stainless steel storage tanks built to API-650 standards, specializing in tanks for food, chemical, pharmaceutical, and industrial processing.

📝 Description

This 14,000-gallon vertical tank, built in 2012 by Erected Steel Products, is constructed of 316L stainless steel and complies with API-650 design standards. It features a 13-foot diameter and 15-foot straight side height, with a slightly coned top, flat bottom, and ramped side opposite the agitator—a design that aids in optimal drainage and mixing.
Rated for atmospheric pressure at 20°F to 160°F, the tank is equipped with a Sulzer Model STF-30.15 side-entering agitator, powered by a 15 HP motor (3-phase, 460V), making it ideal for mixing and blending applications. A comprehensive array of top and side fittings, including multiple inlets, outlets, and manways, offers excellent process integration and service access.

⚙️ Specifications

Manufacturer: Erected Steel Products

Capacity: 14,000 gallons

Material: 316L Stainless Steel

Construction Standard: API-650

Shape: Vertical with slight cone top, flat bottom, ramped side

Diameter: 13 feet

Straight Side Height: 15 feet

Pressure Rating: Atmospheric @ 20°F to 160°F

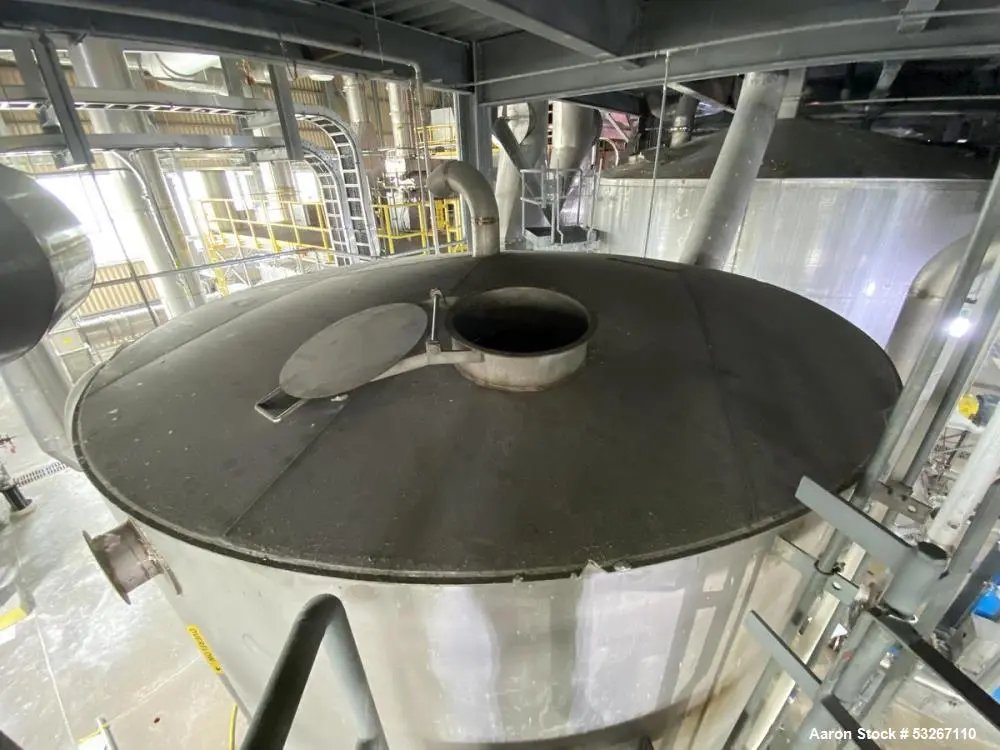

Top Fittings:

20" manway

(1) 6" vent

Side Top Inlets:

(1) 12"

(1) 24"

Side Inlets:

(1) 6"

(1) 8"

(1) 10"

Side Bottom Outlets:

(1) 2.5"

(2) 8"

(1) 3"

(1) 4"

Side Bottom Manway: 24"

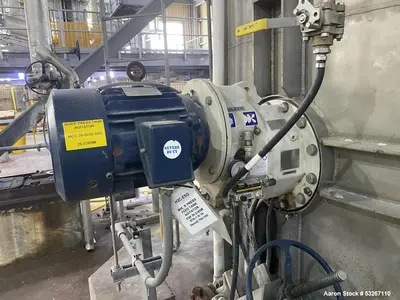

Agitator:

Sulzer STF-30.15 side-entering

15 HP, 3/60/460V motor

Serial Number: 1169

Year Built: 2012

🧩 Applications

Excellent for storage and agitation of:

Food and beverage ingredients

Chemicals and intermediate products

Liquid fertilizers or ag-chemicals

Pharmaceutical or cosmetic liquids

Cleaning or sanitation fluids (CIP)

Water or wastewater processing

Biotech nutrient or media preparation

Syrup, concentrate, or oil blending

Nutraceutical or vitamin solutions

Industrial brine or rinse water tanks

🔧 What Might This Be Used For?

Blending and storage of process liquids

Holding and agitating ingredients for food or beverage production

Maintaining temperature-sensitive liquids at atmospheric pressure

Mixing chemical batches with controlled shear

CIP rinse storage with motorized agitation

Industrial storage and agitation of viscous liquids

Pre-treatment tank in water processing operations

Supporting manufacturing processes that require constant mixing

Feeding downstream processes with well-mixed solutions

Ingredient staging in sanitary processing environments
