Used 14,000 Gallon 316L Stainless Steel Vertical Tank – Erected Steel Products, API-650, Built 2012

Used 14,000 gallon Erected Steel Products 316L Stainless Steel Vertical Tank. 13' diameter X 15' high straight side. Rated ATMOS @ 20 to 160 F. S/N 1168. API-650 standard. Slight cone top, flat bottom with ramped side opposite the agitator. Top fittings: 20" manway, (1) 6" vent, and (1) 12". 24" side bottom manway, (1) 2" (1) 3", (1) 6", (3) 8", (3) 10" and (1) 12" side top inlets (2) 8" side bottom outlets. Built 2012.

Used Equipment Facts About This Machine
🏭 Manufacturer

Erected Steel Products
A leading manufacturer of high-capacity, API-compliant stainless steel storage tanks for industrial, chemical, and sanitary applications.

📝 Description

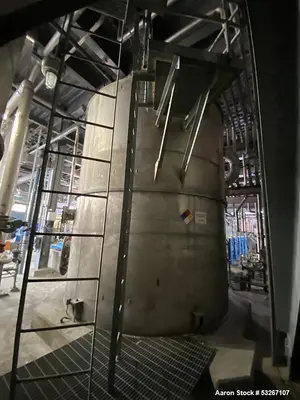

This 14,000-gallon vertical storage tank, manufactured by Erected Steel Products in 2012, is built to API-650 standards and fabricated from durable 316L stainless steel. Designed for atmospheric service (ATMOS) at temperatures ranging from 20°F to 160°F, the tank features a 13-foot diameter and a 15-foot straight side height, with a slight cone top and flat bottom construction.
The ramped side opposite the agitator location enables efficient drainage and flow. It includes a robust array of top and side fittings, providing flexibility for integration with piping, transfer lines, or instrumentation. Ideal for high-volume storage of water, food-grade liquids, chemicals, or process fluids.

⚙️ Specifications

Manufacturer: Erected Steel Products

Capacity: 14,000 gallons

Material: 316L Stainless Steel

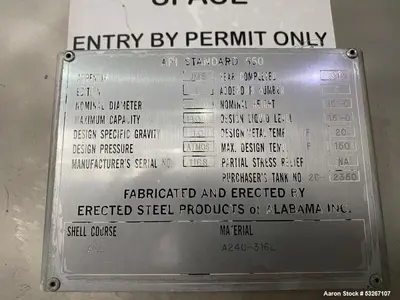

Standard: API-650

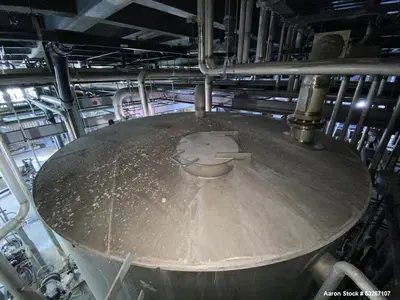

Shape: Vertical with slight cone top and flat bottom

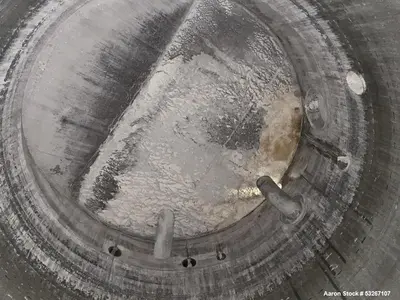

Side: Ramped bottom opposite agitator side

Diameter: 13 feet

Straight Side Height: 15 feet

Pressure Rating: ATMOS @ 20°F to 160°F

Top Fittings:

20" manway

(1) 6" vent

(1) 12" inlet

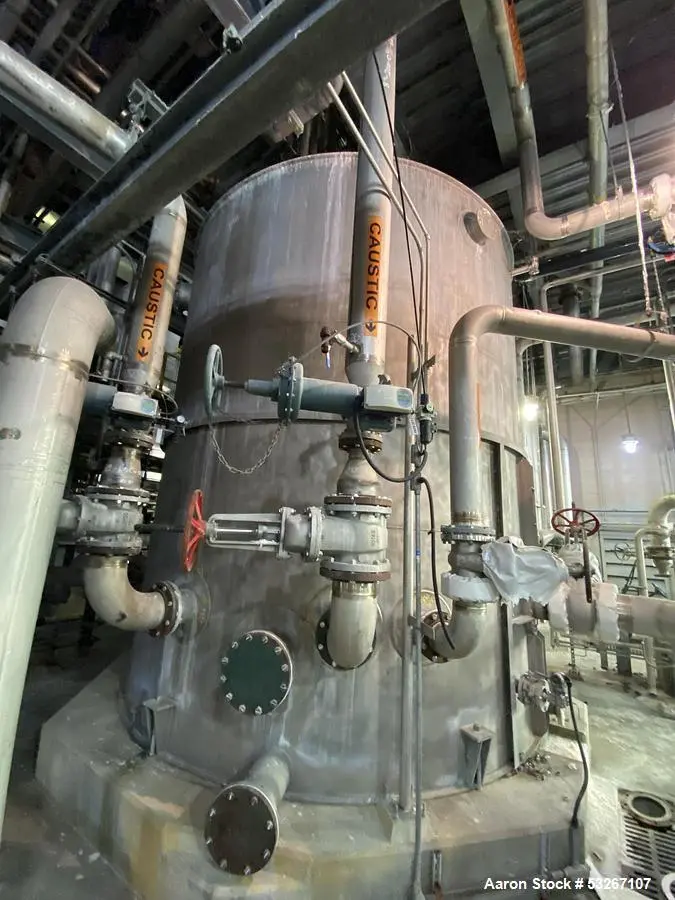

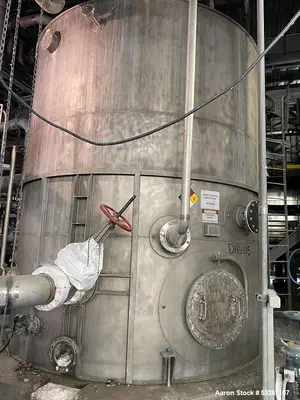

Side / Bottom Fittings:

24" side bottom manway

(1) 2" inlet

(1) 3" inlet

(1) 6" inlet

(3) 8" inlets

(3) 10" inlets

(1) 12" side top inlet

(2) 8" side bottom outlets

Serial Number: 1168

Year Built: 2012

🧩 Applications

Suited for a wide range of storage and processing functions in:

Food and beverage processing

Industrial water storage

Chemical formulation and batching

Cosmetic and personal care manufacturing

Agricultural nutrient and liquid fertilizer tanks

Pharmaceutical and biotech storage

Brewing and fermentation operations

Sanitary process holding

CIP (Clean-In-Place) systems

Environmental and wastewater applications

🔧 What Might This Be Used For?

Holding and transferring water or water-based process fluids

Ingredient storage for food or beverage production

Large-scale chemical mixing and intermediate storage

Tank farm storage in manufacturing or treatment facilities

CIP rinse or sanitation fluid reservoir

Agricultural chemical solution staging

High-volume clean water or nutrient solution tank

Temporary holding for wastewater before treatment

Supporting fermentation or batch processing

Utility water storage in pharmaceutical or cosmetic plants
