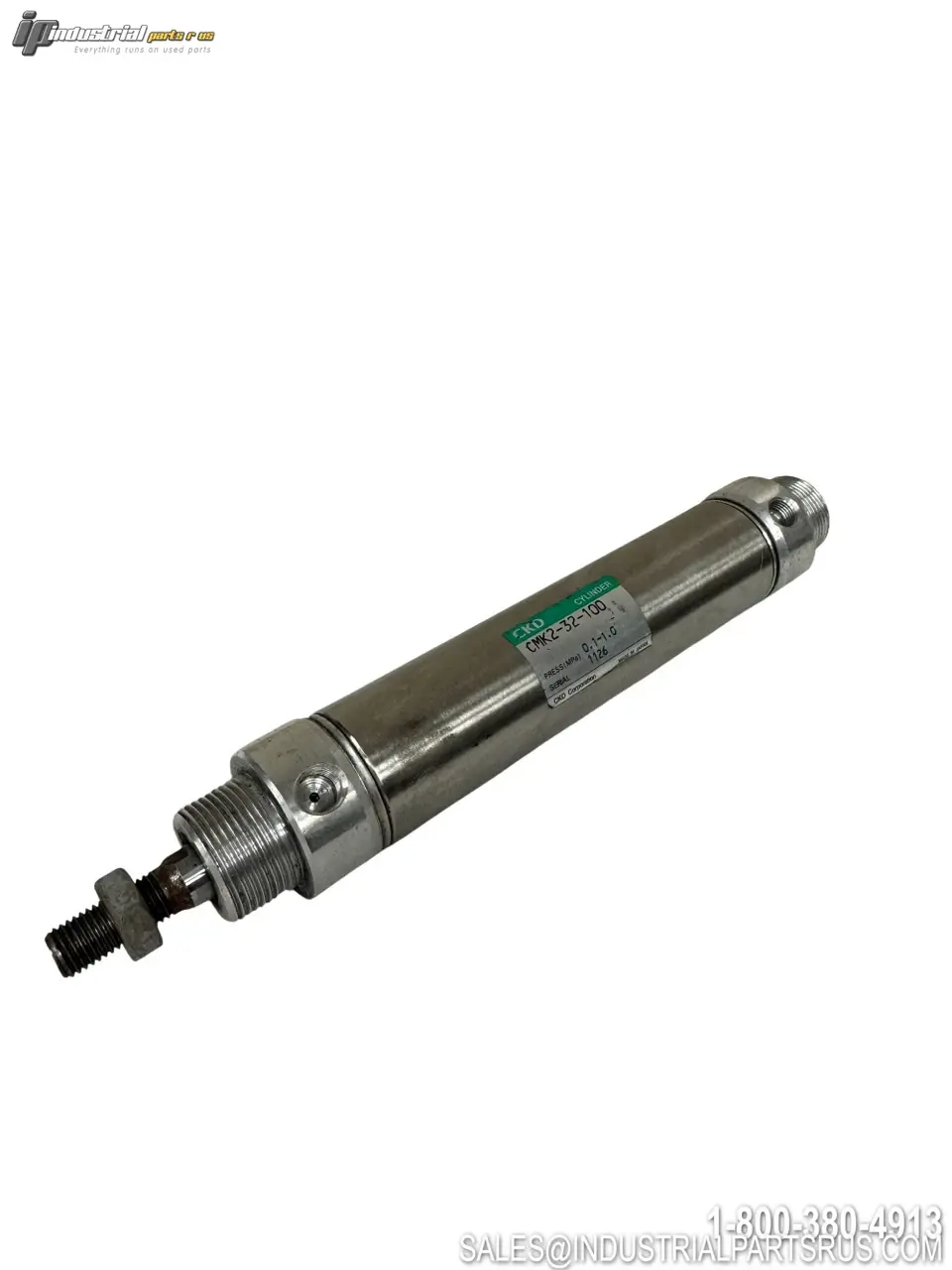

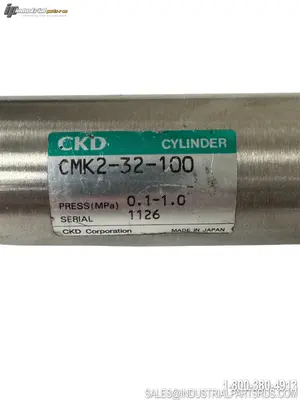

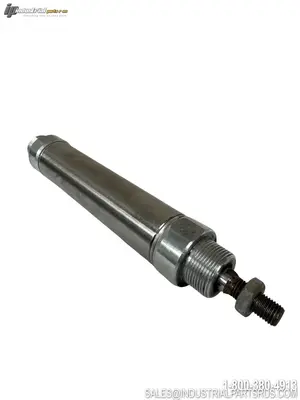

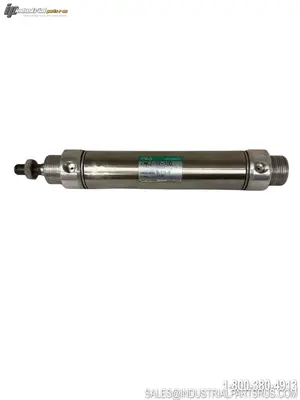

USED CKD CMK2-32-100

The CKD CMK2-32-100 is a medium bore, double-acting single-rod pneumatic cylinder from CKD's CMK2 Series. It features a 32mm bore diameter and 100mm stroke length in the basic (00) mounting configuration, designed for general-purpose pneumatic automation applications. The CMK2 Series is engineered for high corrosion resistance and long service life, utilizing a stainless steel cylinder tube and rubber cushion end stops.
Specification
Value
Brand
CKD
Model / Part Number
CMK2-32-100
Series
CMK2
Product Type
Pneumatic Cylinder
Actuation
Double Acting
Rod Type
Single Rod
Bore Diameter
32 mm (ø32)
Stroke Length
100 mm
Mounting Style
Basic Type (00)
Working Fluid
Compressed Air
Max. Working Pressure
1.0 MPa (approx. 145 PSI)
Min. Working Pressure
0.1 MPa
Withstanding Pressure
1.6 MPa
Ambient Temperature Range
-10°C to 60°C (no freezing)
Port Size
Rc1/8
Stroke Tolerance
+2.0 / 0 mm (strokes up to 200 mm)
Working Piston Speed
50 to 500 mm/s
Cushion Type
Rubber Cushion
Lubrication
Not Required (if lubricating: Turbine Oil Class 1 ISO VG32)
Allowable Energy Absorption
0.424 J (for ø32 bore)
Rod Diameter
12 mm
Rod End Thread
M10 x 1.25
Cylinder Tube Material
Stainless Steel
Head/Cap Material
Aluminum
Standard Stroke Options (series)
25, 50, 75, 100, 150, 200, 250, 300 mm
Max. Stroke Length
750 mm
Min. Stroke Length
5 mm
Switch Compatibility
Optional (Reed T0/T5, Proximity T2/T3/T1, T8 series)
We warranty all items for 30 days from date of purchase.
