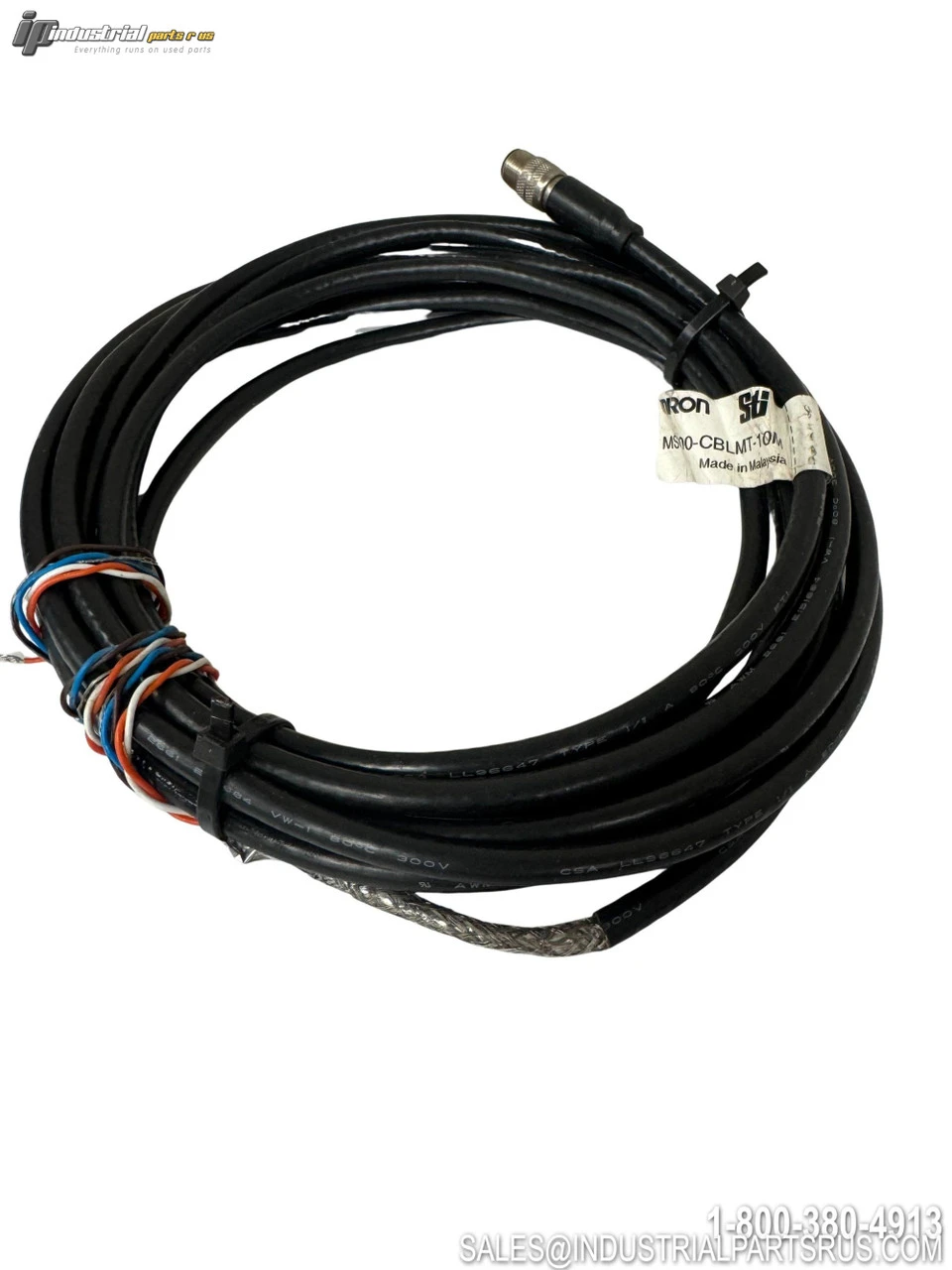

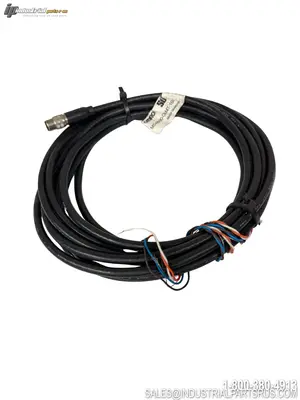

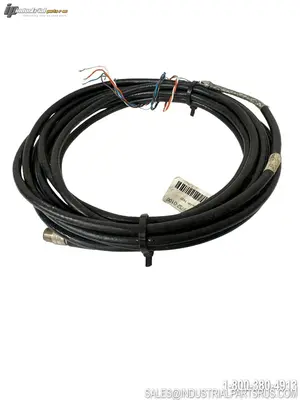

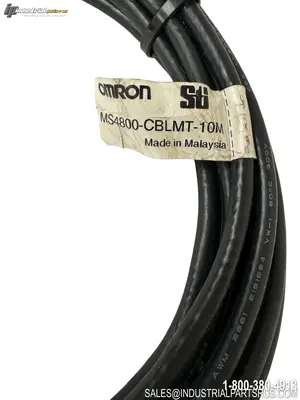

USED OMRON MS4800-CBLMT-10M

This listing is for the RECEIVER ONLY. The emitter is NOT included.
The Omron MS4800-CBlmt-10m (MS4800-CBLMT-10M) is an RM-6 mute cable accessory designed for the MiniSafe MS4800 Series Safety Light Curtain system. This cable connects the MSF4800A receiver assembly to the MS4800-RM6 Resource Module, enabling the muting function in safety light curtain installations. It is a dedicated 10-meter (33 ft.) cordset rated for industrial environments and complies with CE, UL, and CSA safety standards.
Specification
Value
Brand
Omron
Model / Part Number
MS4800-CBlmt-10m
Canonical MPN
MS4800-CBLMT-10M
Product Type
Safety Light Curtain Mute Cable
Series
MS4800 / MSF4800 MiniSafe
Cable Function
MSF4800 Receiver to MS4800-RM6 Muting Module
Cable Length
10 m (33 ft.)
Maximum Voltage Rating
300V
Wire Size
22 AWG
IP Rating
IP65
Maximum Operating Temperature
80°C
Compatible Equipment
MSF4800A Receiver, MS4800-RM6 Muting Module
Safety Standards
CE, UL Listed, CSA Certified
Manufacturer
Omron Automation & Safety (formerly Omron STI)
We warranty all items for 30 days from date of purchase.
