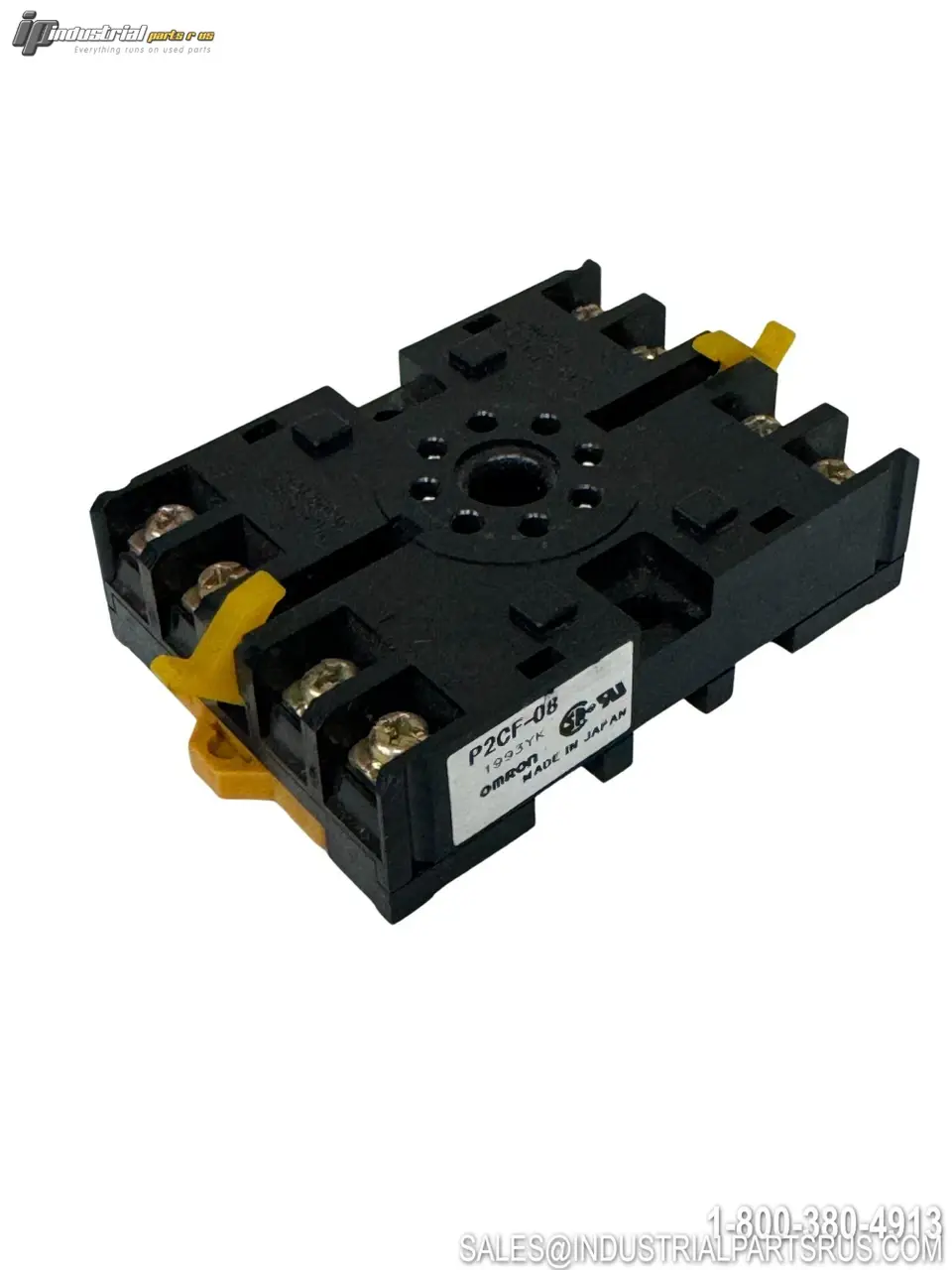

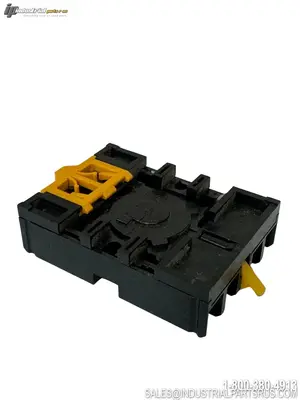

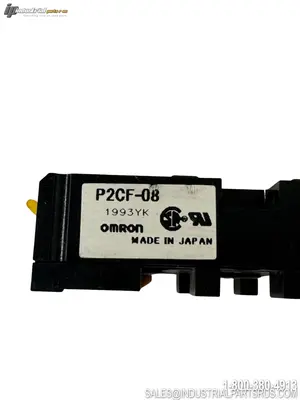

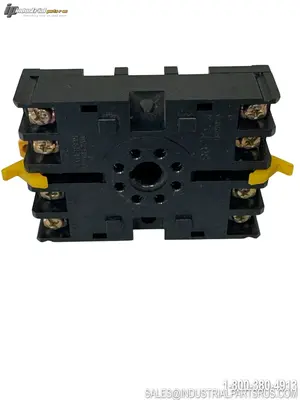

USED OMRON P2CF-08

The Omron P2CF-08 is an 8-pin octal relay socket designed for plug-in relay and timer mounting in industrial control panels and automation systems. It features screw terminals for secure wiring and supports both DIN rail and panel surface mounting. The socket uses a 2PDT (Double Pole Double Throw) contact configuration with silver alloy contacts and provides finger protection on pin sockets for added safety. It is compatible with Omron's H3CR-F solid-state twin timers, MY2 series relays, MK series relays, H2C motor timers, H7CR, H5CN, and H5CX timers, and is constructed from high-grade plastic with RoHS compliance.
Specification
Value
Brand
Omron
Model / Part Number
P2CF-08
Product Type
Relay Socket
Series
P2CF
Number of Pins
8
Socket Type
Octal (8-Pin)
Number of Poles
2
Voltage Rating
240VAC
Current Rating
6A
Terminal Type
Screw Terminals
Mounting Type
DIN Rail / Panel (Front Mounting)
Compatible Relays/Timers
H3CR-F, MY2, MK Series, H2C Motor Timers
Body Material
High-Grade Plastic
Color
Black
Width
70 mm
Height
31.2 mm
RoHS Compliant
Yes
Lifecycle Status
Active / In Production
We warranty all items for 30 days from date of purchase.
