USED ALLEN-BRADLEY 509-TOD

The Allen-Bradley 509-TOD is a NEMA Size 00 magnetic motor starter assembly designed for motor control and overload protection applications. This unit combines a 3-pole magnetic contactor with a 3-pole thermal overload relay and manual reset mechanism. The starter is an open-type assembly intended for panel mounting.

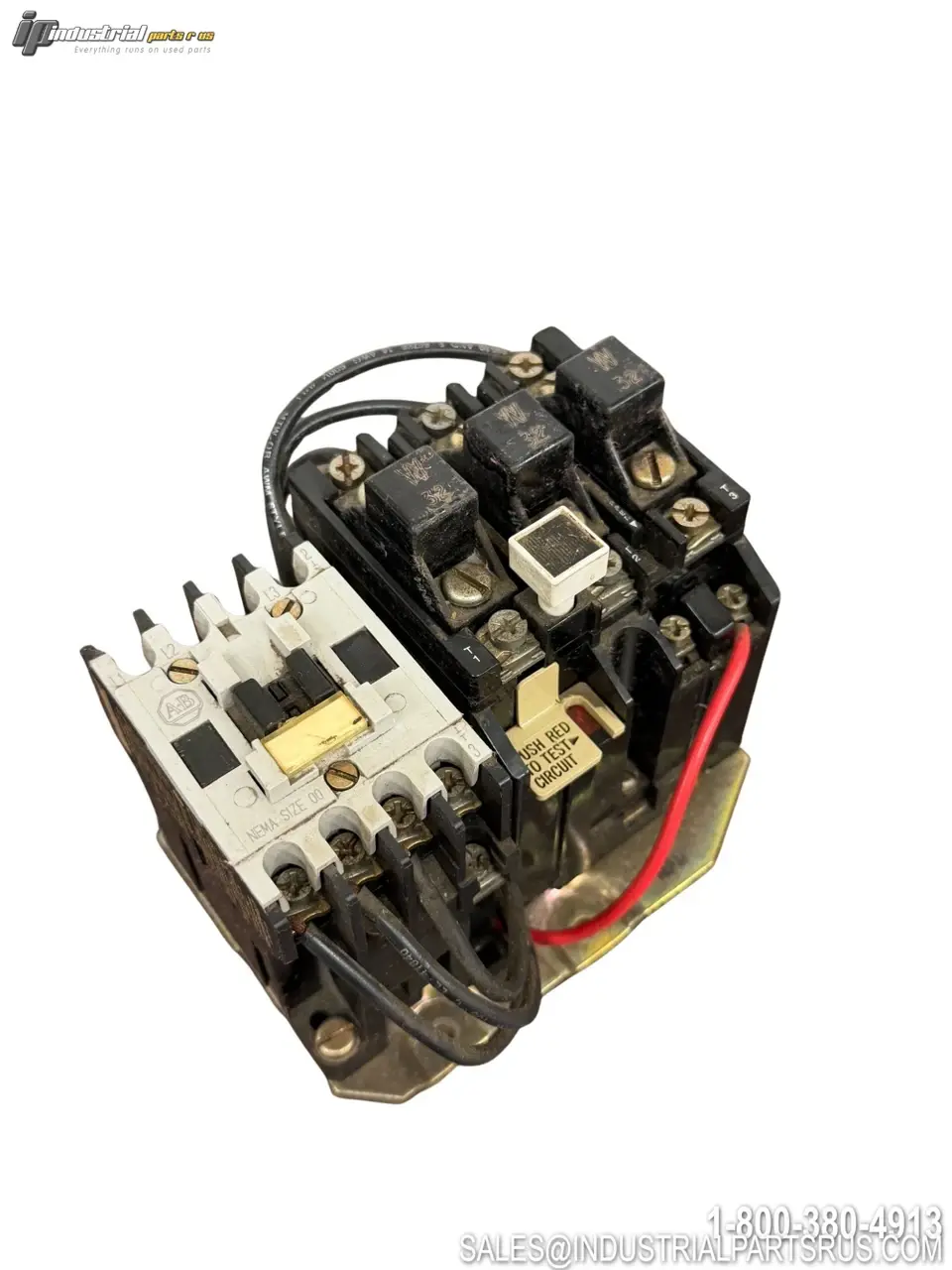

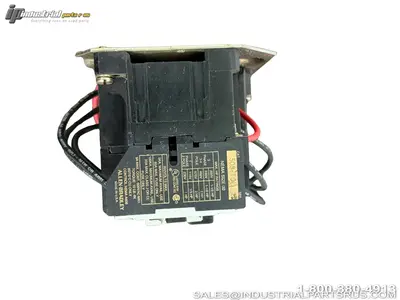

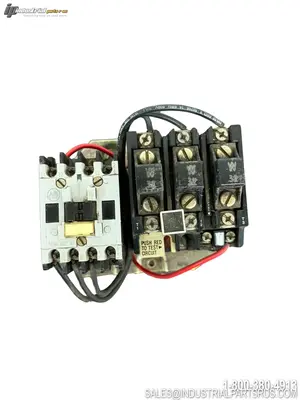

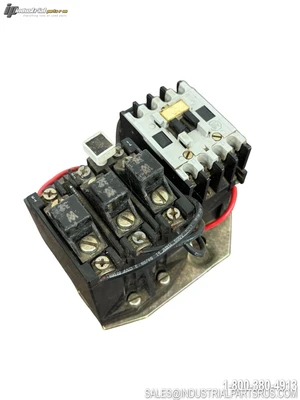

This unit includes three Allen-Bradley W32 overload heater elements, as shown in the photos. Please verify the installed heater element rating and motor application requirements before installation.
Specification
Value
Brand
Allen-Bradley
Catalog Number
509-TOD
Product Type
Magnetic Motor Starter
NEMA Size
00
Number of Poles
3
Maximum Voltage
600 VAC
Maximum Continuous Current
9 A
Maximum Fuse
20 A
Maximum Circuit Breaker
30 A
3-Phase Motor Rating @ 200V
1.5 HP
3-Phase Motor Rating @ 230V
1.5 HP
3-Phase Motor Rating @ 460V
2 HP
3-Phase Motor Rating @ 575V
2 HP
Single-Phase Motor Rating @ 115V
1/3 HP
Single-Phase Motor Rating @ 230V
1 HP
Overload Protection
3-Pole Thermal Overload Relay
Installed Heater Elements
3 × Allen-Bradley W32
Reset
Manual Reset
Enclosure
Open Type
Mounting
Panel Mount
Terminal Type
Screw Terminal
Manufacturer
Allen-Bradley
Included:
Allen-Bradley 509-TOD motor starter assembly with three W32 overload heater elements installed, as pictured.
We warranty all items for 30 days from date of purchase.
