USED 2005 CHEVALIER FSG-3A1224H
Overview

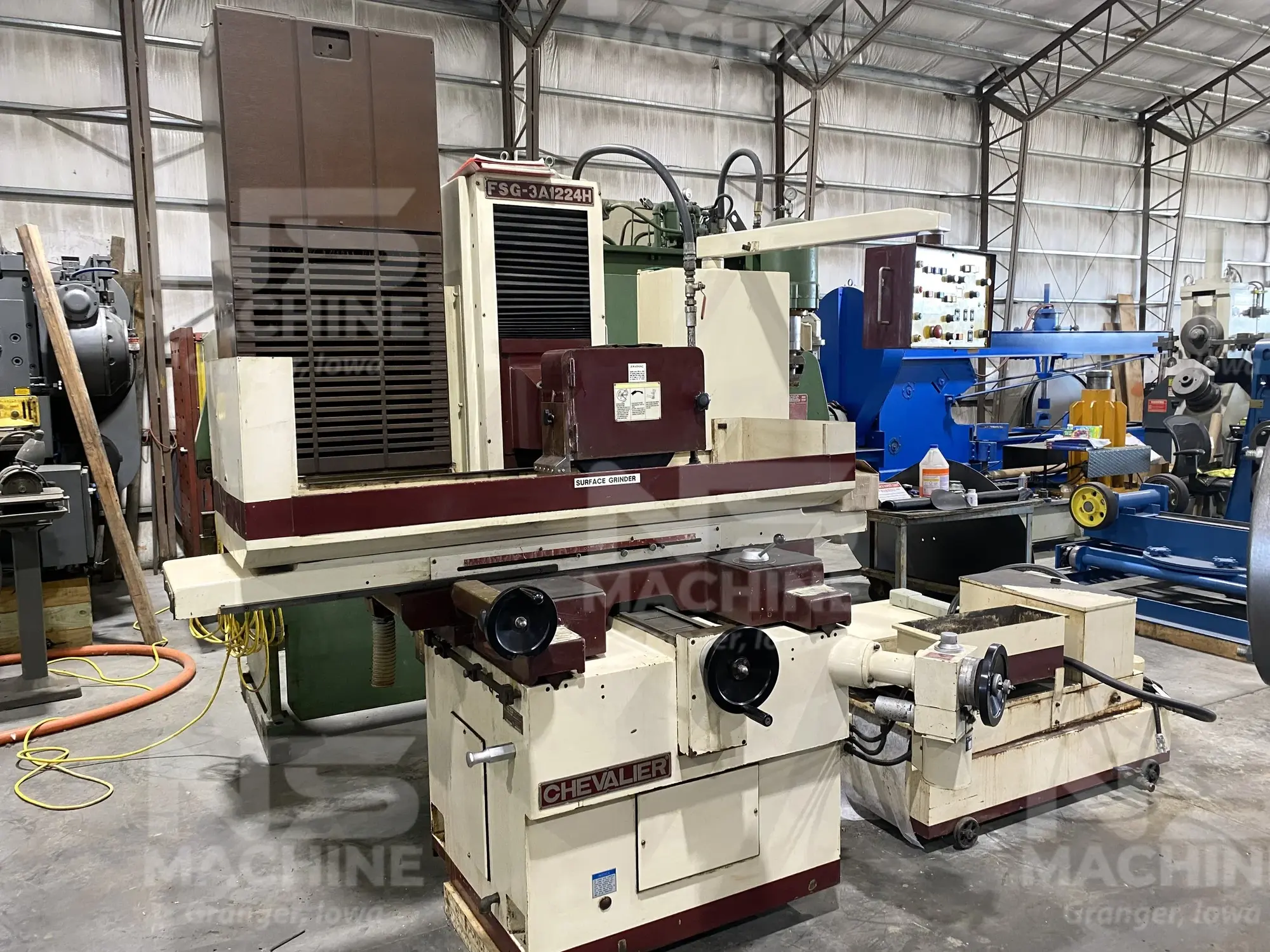

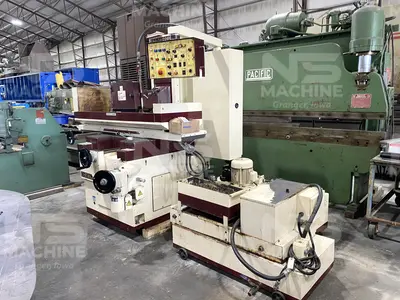

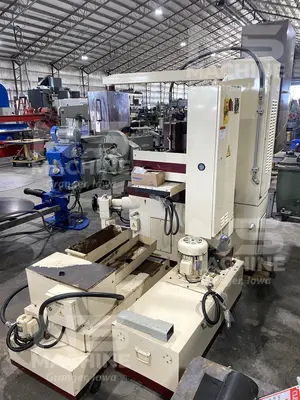

This 12” x 24” Chevalier FSG-3A1224H Hydraulic Surface Grinder is a 3-axis fully automatic grinder.
For questions or to schedule an inspection of this 12” x 24” Chevalier FSG-3A1224H Hydraulic Surface Grinder, please call 515-999-2999 or email your request to [email protected]. To request a quote for this 100 ton Enerpac H-Frame Press, use the “Request Quote” button on this page.
- High precision cartridge type spindle equipped with 4 pieces of class 7 angular contact ball bearings, suitable for heavy duty grinding
- 3-Axis fully automatic with surface and plunge grinding cycles
- Separate hydraulic system prevents vibration and reduces heat transference
- Saddle travels on Turcite-B coated and hand scraped double V guideways
- Meehanite cast iron
- Wheel head rises up automatically and table parks at left or right side after cycle is completed
Specs
Table Working Surface: 12" x 24"
Grinding Width Capacity, Maximum: 12"
Grinding Length Capacity, Maximum: 24"
Height Spindle Centerline To Table, Max: 24.75"
Grinding Wheel Diameter, Standard: 14"
Grinding Wheel Width, Standard: 2"
Grinding Wheel Hole Diameter: 5"
Table Longitudinal Travel Hydraulic: 25.37"
Table Longitudinal Travel Manual: 27.5"
Table Cross Travel, Automatic: 14.17"
Table Cross Travel, Manual: 14.5"
Table speed: 16 to 82 FPM
Table Cross In-Feeds, Range: 0.125 to 2 IPR
Cross Rapid Travel, Approx.: 56 IPM
Spindle Vertical Feeds, Automatic: 0.0001 to .002 IPR
Power Rapid Vertical Traverse: 13 IPM
Grinding Wheel Spindle Motor: 5 HP
Hydraulic Drive Motor: 2 HP
Cross Feed Drive Motor: 1/2 HP
Elevating Drive Motor: 1/4 HP
Coolant Pump Motor: 1/8 HP
Approximate Dimensions: 106" x 70" x 91" high
Approximate weight: 4,630 lbs
