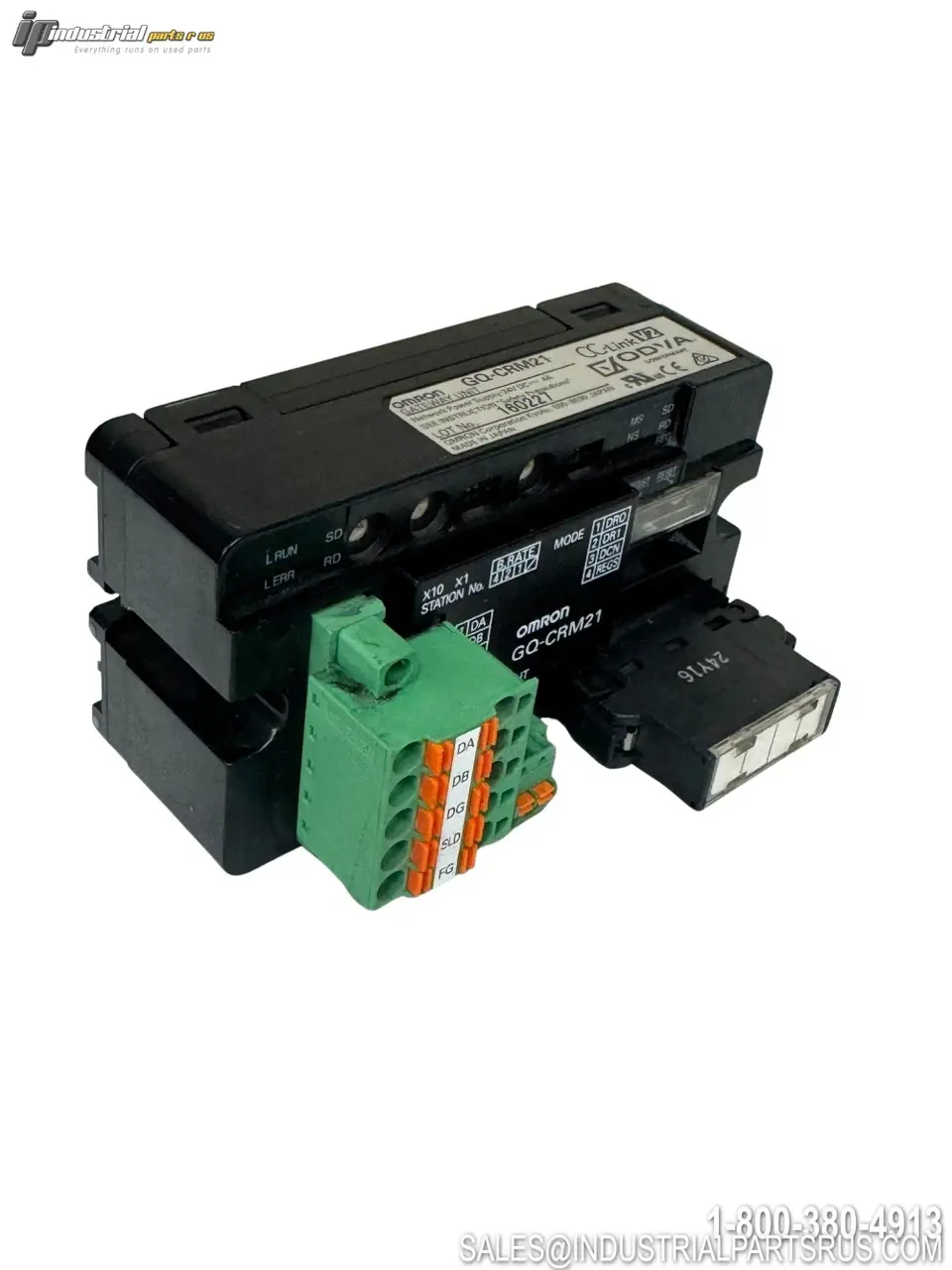

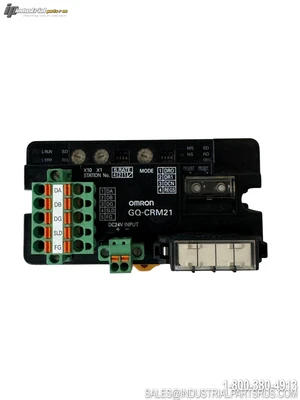

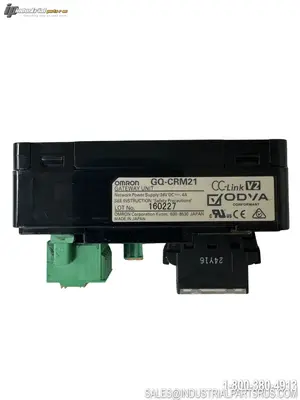

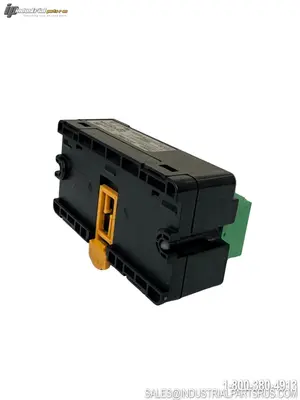

USED OMRON GQ-CRM21

The
Omron GQ-CRM21
is a
CompoNet Gateway Unit for CC-Link
designed to connect CompoNet slave devices to a CC-Link master network. The unit provides one CC-Link port and one CompoNet port and cyclically transfers I/O data between CompoNet Slave Units and the CC-Link Master Unit.
The GQ-CRM21 operates as a
CC-Link remote device station occupying four stations
and supports
CC-Link Version 1.10 and Version 2.00
, selectable using the unit's mode switch. It supports remote I/O communications with a maximum capacity of
2,048 I/O points for Word Slave Units
(1,024 inputs and 1,024 outputs) or
512 I/O points for Bit Slave Units
(256 inputs and 256 outputs).
A built-in
seven-segment display
provides convenient on-site monitoring and error indication. The gateway is designed to simplify system expansion and wiring by allowing CompoNet devices to be integrated into existing CC-Link networks. {"fallbackMarkdown":"([Omron](https://assets.omron.eu/downloads/latest/datasheet/en/p056_componet_datasheet_en.pdf?v=21&utm_source=chatgpt.com))","reference":{"matched_text":"","prefix":null,"start_idx":1248,"end_idx":1282,"safe_urls":["https://assets.omron.eu/downloads/latest/datasheet/en/p056_componet_datasheet_en.pdf?v=21","https://assets.omron.eu/downloads/latest/datasheet/en/p056_componet_datasheet_en.pdf?v=21&utm_source=chatgpt.com","https://www.omron-ap.com/data_pdf/cat/gq-crm21_p067-e1-01.pdf?id=2892","https://www.omron-ap.com/data_pdf/cat/gq-crm21_p067-e1-01.pdf?id=2892&utm_source=chatgpt.com"],"refs":[],"alt":"([Omron](https://assets.omron.eu/downloads/latest/datasheet/en/p056_componet_datasheet_en.pdf?v=21&utm_source=chatgpt.com))","prompt_text":null,"type":"grouped_webpages","style":null,"fallback_items":null,"status":"done","items":[{"title":"MEMO","url":"https://assets.omron.eu/downloads/latest/datasheet/en/p056_componet_datasheet_en.pdf?v=21&utm_source=chatgpt.com","attribution":"Omron","pub_date":1776207536,"snippet":"","attribution_segments":null,"supporting_websites":[{"title":"CompoNet GQ-CRM21","url":"https://www.omron-ap.com/data_pdf/cat/gq-crm21_p067-e1-01.pdf?id=2892&utm_source=chatgpt.com","pub_date":null,"snippet":"","attribution":"Omron AP"}],"refs":[{"turn_index":0,"ref_type":"search","ref_index":12},{"turn_index":0,"ref_type":"search","ref_index":14}],"hue":null,"attributions":null}],"error":null},"showLoginRequiredCard":false}
Specification
Value
Brand
Omron
Model / Part Number
GQ-CRM21
Product Type
CompoNet Gateway Unit for CC-Link
CC-Link Port
1
CompoNet Port
1
CC-Link Station Type
Remote Device Station
CC-Link Stations Occupied
4
CC-Link Version
Version 1.10 / Version 2.00
CC-Link Communication
Remote I/O Communications
Maximum Word Slave I/O
2,048 points total (1,024 inputs / 1,024 outputs)
Maximum Bit Slave I/O
512 points total (256 inputs / 256 outputs)
CC-Link Baud Rates
156 kbps, 625 kbps, 2.5 Mbps, 5 Mbps, 10 Mbps
CompoNet Communication
CompoNet Protocol
CompoNet Baud Rates
93.75 kbps, 1.5 Mbps, 3 Mbps, 4 Mbps*
Unit Power Supply
21.6–26.4 VDC (24 VDC ±10%)
Communications Power Consumption
3.80 A at 24 VDC
Internal Power Consumption
0.13 A at 24 VDC
Display
Seven-segment display
Installation
DIN rail or M4 screws
Operating Temperature
0–55 °C
Operating Humidity
10–90% RH, non-condensing
Storage Temperature
−25–65 °C
Weight
110 g maximum
Noise Immunity
IEC 61000-4-4, 2.0 kV
Dielectric Strength
500 VAC
*4 Mbps CompoNet communication is not supported on branch lines and therefore cannot be used with Slave Units connected using cables.
{"fallbackMarkdown":"([manualslib.com](https://www.manualslib.com/manual/720995/Omron-Gq-Crm21.html?utm_source=chatgpt.com))","reference":{"matched_text":"","prefix":null,"start_idx":5696,"end_idx":5728,"safe_urls":["https://www.manualslib.com/manual/720995/Omron-Gq-Crm21.html","https://www.manualslib.com/manual/720995/Omron-Gq-Crm21.html?utm_source=chatgpt.com","https://www.omron.com.au/products/family/2892/specification.html","https://www.omron.com.au/products/family/2892/specification.html?utm_source=chatgpt.com"],"refs":[],"alt":"([manualslib.com](https://www.manualslib.com/manual/720995/Omron-Gq-Crm21.html?utm_source=chatgpt.com))","prompt_text":null,"type":"grouped_webpages","style":null,"fallback_items":null,"status":"done","items":[{"title":"OMRON GQ-CRM21 OPERATION MANUAL Pdf Download | ManualsLib","url":"https://www.manualslib.com/manual/720995/Omron-Gq-Crm21.html?utm_source=chatgpt.com","attribution":"manualslib.com","pub_date":null,"snippet":"","attribution_segments":null,"supporting_websites":[{"title":"GQ-CRM21 CompoNet Gateway Unit for CC-Link/Specifications | OMRON Industrial Automation Australia","url":"https://www.omron.com.au/products/family/2892/specification.html?utm_source=chatgpt.com","pub_date":null,"snippet":"","attribution":"omron.com.au"}],"refs":[{"turn_index":0,"ref_type":"search","ref_index":3},{"turn_index":0,"ref_type":"search","ref_index":2}],"hue":null,"attributions":null}],"error":null},"showLoginRequiredCard":false}
Note:
Omron currently identifies the GQ-CRM21 as having reached end of ordering in
June 2026
. {"fallbackMarkdown":"([Omron](https://www.fa.omron.co.jp/products/family/2892/specification/?utm_source=chatgpt.com))","reference":{"matched_text":"","prefix":null,"start_idx":5865,"end_idx":5884,"safe_urls":["https://www.fa.omron.co.jp/products/family/2892/specification/","https://www.fa.omron.co.jp/products/family/2892/specification/?utm_source=chatgpt.com"],"refs":[],"alt":"([Omron](https://www.fa.omron.co.jp/products/family/2892/specification/?utm_source=chatgpt.com))","prompt_text":null,"type":"grouped_webpages","items":[{"title":"GQ-CRM21 CC-Link対応CompoNetゲートウェイユニット/定格/性能 | オムロン制御機器","url":"https://www.fa.omron.co.jp/products/family/2892/specification/?utm_source=chatgpt.com","attribution":"Omron","pub_date":null,"snippet":"","attribution_segments":null,"supporting_websites":[],"refs":[{"turn_index":0,"ref_type":"search","ref_index":0}],"hue":null,"attributions":null}],"fallback_items":null,"status":"done","error":null,"style":null},"showLoginRequiredCard":false}
Warranty:
All items are covered by a 30-day warranty from the date of purchase.
