Used 23,000 Gallon Fiberglass Storage Tank – Fabricated Plastics, Derakane 510A, Built 2009

Used Fabricated Plastics Limited Vertical Fiberglass Storage Tank, 23,000 Gallon. 14' diameter X 20' high straight side. Rated =/- 0.25 PSIG, S. G. 1.1 -1.2. S/N 101441. Corrosion Liner: 2-Nexus Veil and 3-Mat. Resin: Derakane 510A/411 Cure: BPO/DMA. Flat bottom, dished top. Top fittings: 20" manway with an 8" nozzle, and (2) 6". 8" side top inlet. 30" side bottom manway. (1) 1" and (4) 3" side bottom outlets. Built 2009. Stored Sodium Hypochlorite. Weight 8700#.

Used Equipment Facts About This Machine
🏭 Manufacturer

Fabricated Plastics Limited
A Canadian manufacturer specializing in fiberglass-reinforced plastic (FRP) tanks and equipment for the chemical processing, water treatment, and industrial storage sectors.

📝 Description

This 36,400-gallon vertical fiberglass storage tank, manufactured by Fabricated Plastics Limited in 2009, is built to store highly corrosive liquids such as sodium hypochlorite, which it previously contained. Constructed with 2-Nexus veil and 3-mat corrosion liner and reinforced with Derakane 510A/411 epoxy vinyl ester resin (BPO/DMA cured), this tank offers superior chemical resistance, mechanical strength, and longevity in aggressive service conditions.

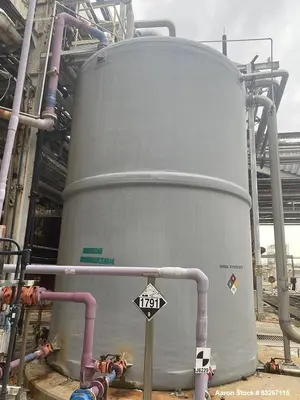

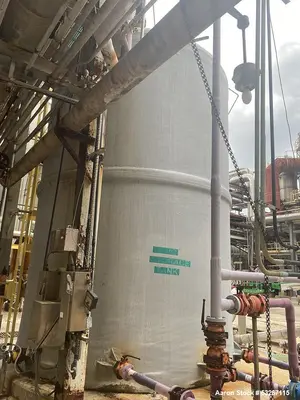

The tank features a 14-foot diameter and 20-foot straight side height, with a dished top and flat bottom. Rated for ±0.25 PSIG and a specific gravity (S.G.) of 1.1–1.2, it includes extensive top and side fittings for integration into plant systems. Manways on both the top and side allow for easy inspection and maintenance access.

⚙️ Specifications

Manufacturer: Fabricated Plastics Limited

Year Built: 2009

Capacity: 36,400 gallons

Material: Fiberglass (FRP)

Corrosion Liner:

2 layers Nexus veil

3 layers chopped strand mat

Resin System: Derakane 510A/411

Cure: BPO/DMA

Shape: Vertical with dished top and flat bottom

Dimensions:

Diameter: 14 feet

Straight Side Height: 20 feet

Weight: Approx. 8,700 lbs

Pressure Rating: ±0.25 PSIG

Specific Gravity Rating: 1.1–1.2

Top Fittings:

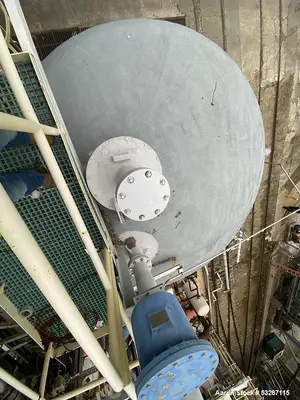

20" manway with 8" nozzle

(2) 6" nozzles

Side Top Inlet: 8"

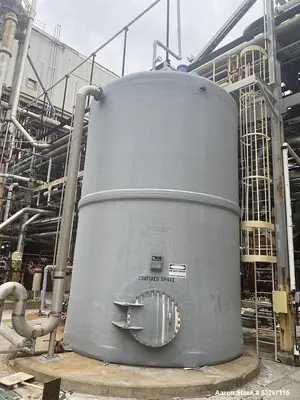

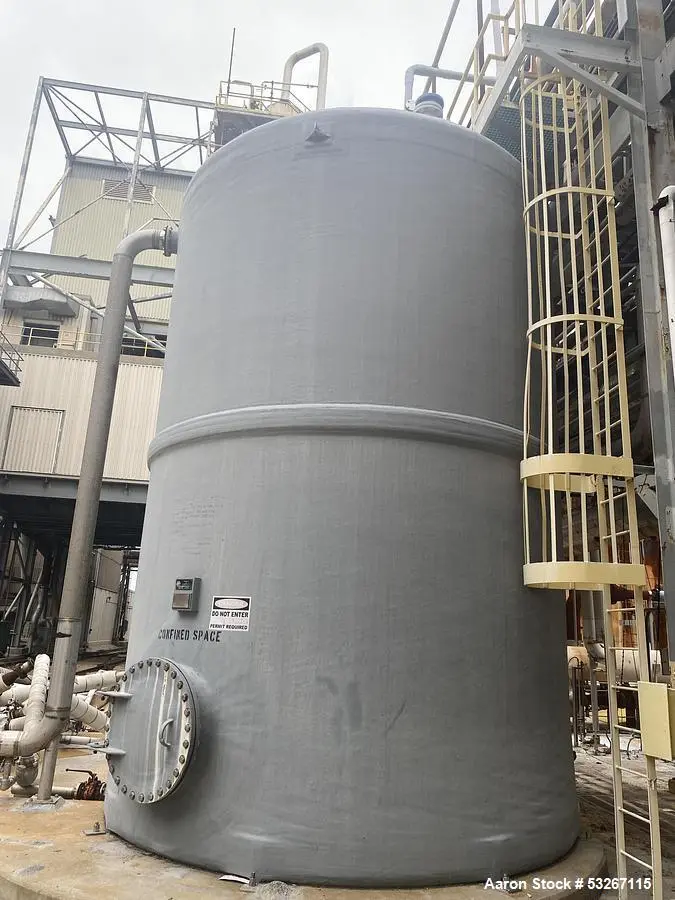

Side Bottom Manway: 30"

Side Bottom Outlets:

(1) 1" outlet

(4) 3" outlets

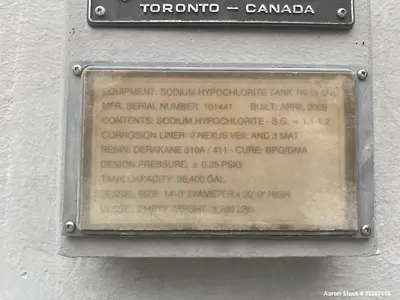

Serial Number: 101441

Previous Service: Sodium Hypochlorite

🧩 Applications

This corrosion-resistant tank is ideal for:

Sodium hypochlorite storage

Sodium hydroxide or caustic soda storage

Sulfuric acid dilution systems

Bleach or chlorine storage

Industrial wastewater treatment systems

Chemical feed or neutralization tanks

Brine or saline storage in water treatment

Corrosive liquid containment for pulp and paper plants

Fertilizer or ag-chemical bulk storage

Municipal or industrial disinfectant storage systems

🔧 What Might This Be Used For?

Safely storing corrosive chemicals like bleach or caustics

Holding sodium hypochlorite for water or wastewater treatment

Providing buffer storage in chemical dosing systems

Serving as a containment vessel in chlorination systems

Acting as a large-capacity tank in chemical or food processing plants

Housing harsh fluids in industrial CIP or sanitation setups

Long-term storage of fertilizers or pH modifiers

Integrating into modular skids for water purification

Chemical storage in paint, pulp, or dye industries

Environmental containment for hazardous materials
