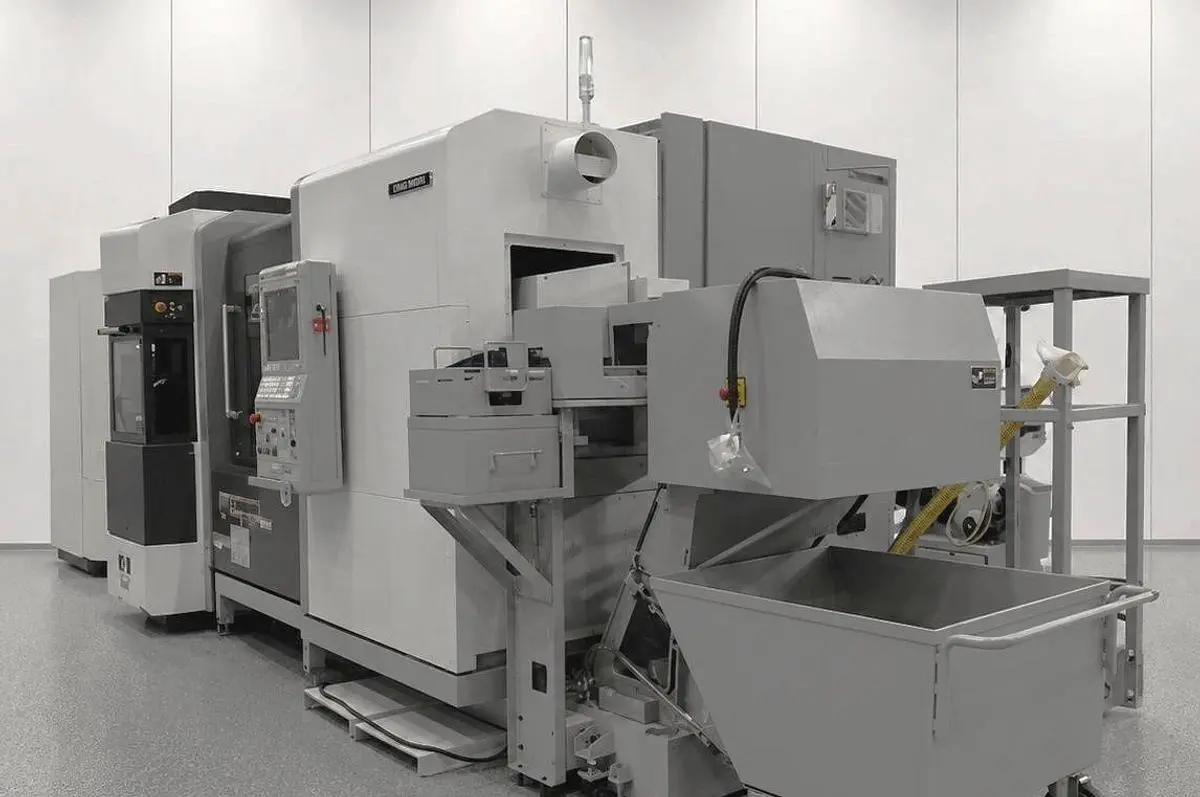

USED 2014 DMG MORI NTX2000-1500S
Overview
Pendulum Style B Axis Head
Full C Axis Spindle Rotation - Both Spindles
Milling/Drilling Capability
Subspindle
Y Axis Capability
76 Station Tool Changer
10 Station Lower Turret Option
Chip Conveyor
8" 3 Jaw Kitagawa Hydraulic Chucks on Both Main & Subspindle
Spindle Chiller Unit
High Pressure Coolant
Coolant System with Tank & Pump
Wired 220V Electrics
RS 232 Port Interface
The 2014 DMG Mori NTX2000-1500S is a versatile mill/turn center designed for precision machining. With a Fanuc Series 31i-B5 Control, it offers robust operational capabilities. Both spindles are equipped with 8-inch hydraulic chucks, supporting a maximum turning diameter of 25.9 inches on the upper turret and 10.7 inches on the lower turret. The machine can handle a maximum turning length of 60.6 inches and features a bar capacity of 2.5 inches, making it suitable for various applications.
Travel capabilities include X-axis travel of 19.5 inches, Y-axis travel of ±4.9 inches, and Z-axis travel stretching to 61.4 inches. The B-axis allows for pendulum movement of ±120 degrees, complemented by .0001-degree resolution on the C axis spindles. The main and sub spindles operate at a max speed of 5,000 RPM, driven by a 30 HP motor. A Capto C6 taper mill spindle reaches speeds up to 12,000 RPM with a 24.7 HP motor.
This unit is further enhanced by a 76-station automatic tool changer and a 10-station lower turret, providing comprehensive tooling options. Rapid traverse rates reach impressive speeds of 1,574 IPM across several axes. Measuring 161 x 118 x 104 inches and weighing 33,594 lbs, this machine is a substantial asset for high-demand production environments.
Specs
Machine Control: Fanuc Series 31i-B5 Control
Chuck Sizes Main / Subspindle: 8" Hyd Chuck / 8" Hyd Chuck
Maximum Swing Upper Turret / Lower Turret: 25.9" / 11.8"
Maximum Turning Diameter Upper Turret / Lower Turret: 25.9" / 10.7"
Maximum Turning Length: 60.6"
Maximum Bar Capacity: 2.5"
X axis travel: 19.5"
X2 axis lower travel: 6.3"
Y axis travel: +/- 4.9"
Z axis travel: 61.4"
Z2 axis travel: 55.2"
B axis: +/- 120 Degrees
C Axis Spindle Rotation: .0001 Both Spindles
Spindle Nose / Spindle Bore - Both Spindles: A2-6" / 2.9"
Maximum spindle speeds (main & sub): 5,000 RPM
Spindle motor (main & sub): 30 HP
Mill Spindle Taper: Capto C6
Mill Spindle Speed: 12,000 RPM
Mill Spindle Motor: 24.7 HP
Tool magazine: 76 Station Tool Changer
Number of Lower Turret Positions: 10 Station Turret
Rapid Traverse Rates X/X2/Y/Z/Z2: 1574 IPM/1181 IPM/1574 IPM/1574 IPM/1496 IPM
Rapid Traverse Rates A Axis (subspindle): 1181 IPM
Machine Dimensions LxWxH: 161"x118"x104"
Machine weight: 33,594 lbs
