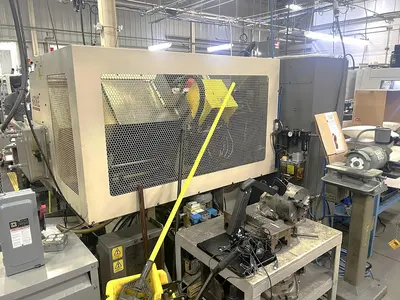

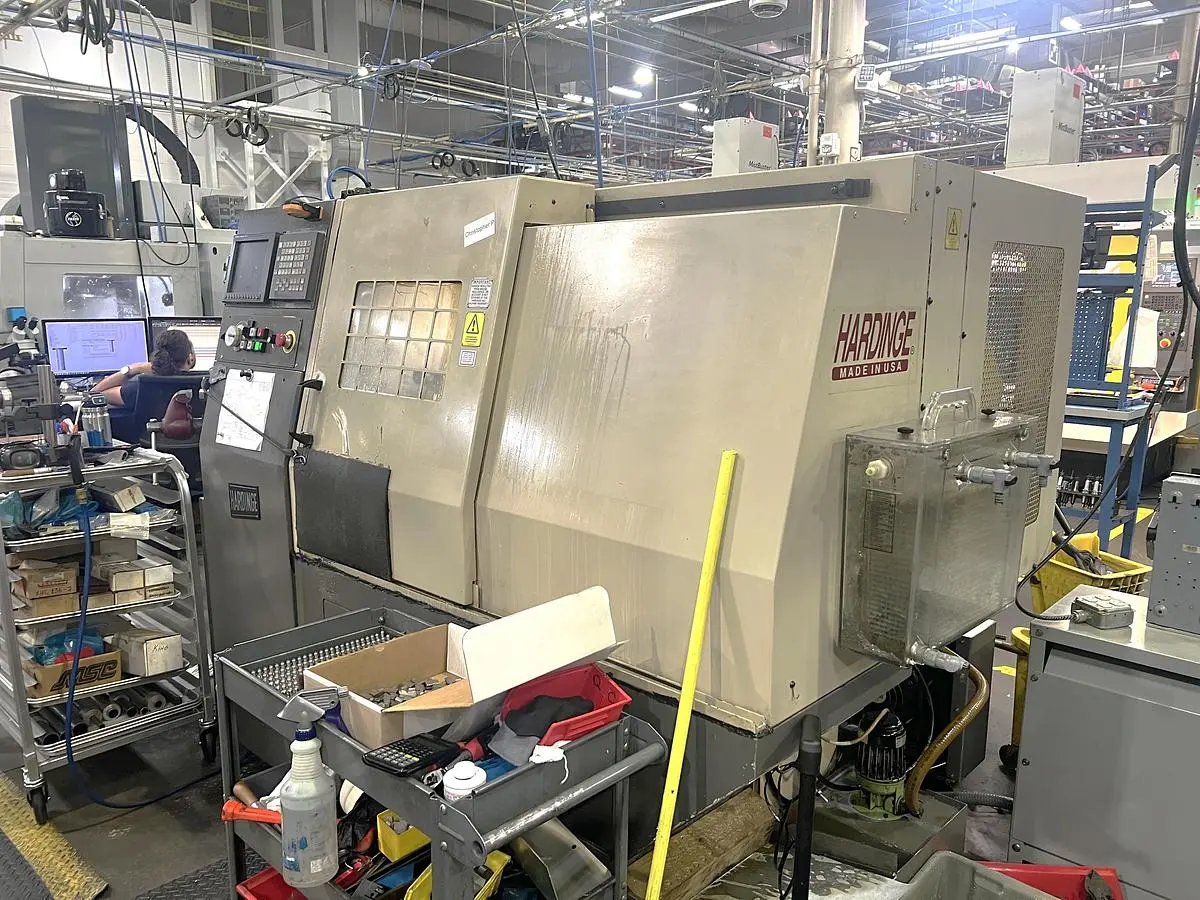

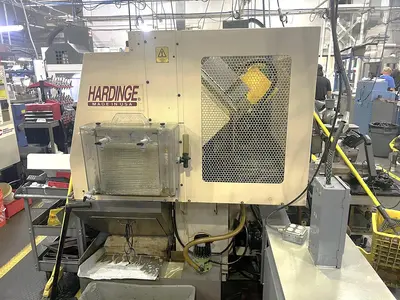

USED 1999 HARDINGE COBRA 51LC

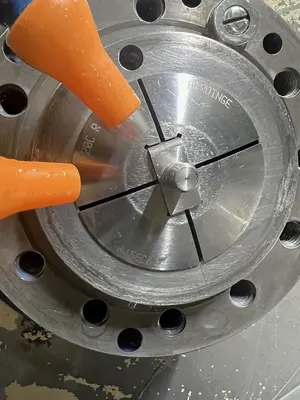

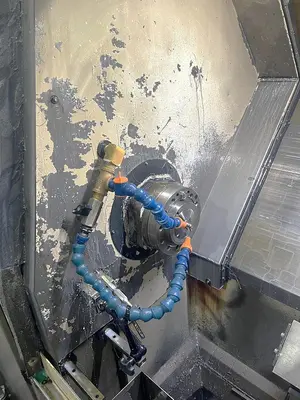

S20 Collet Chuck

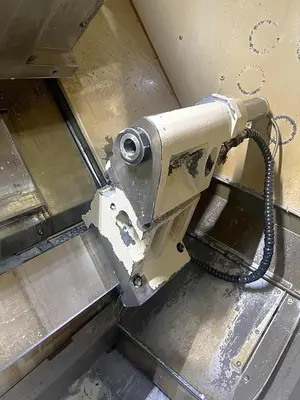

Tailstock with Hydraulic Quill

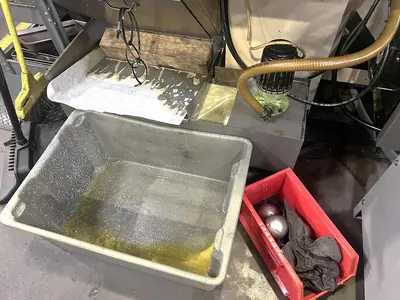

Coolant System with Self Contained Tank & Pump

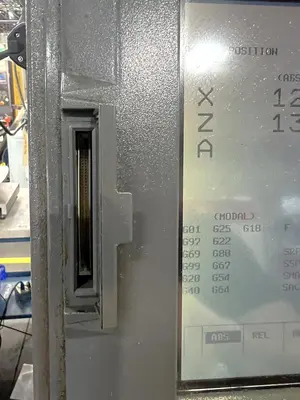

Card Interface
RS-232C Port for DNC Interface

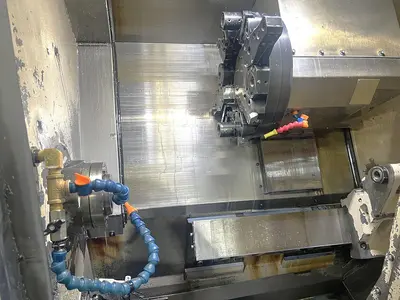

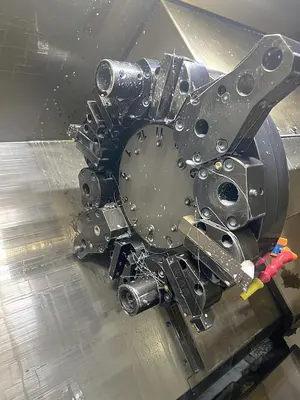

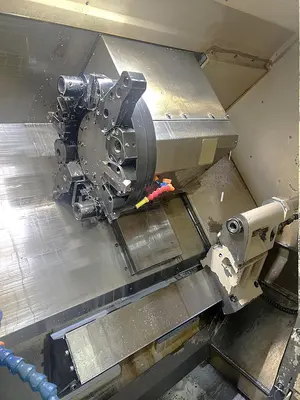

All Tool Holders seen on Turret
Nice Collection of Collets for S20 Collet Chuck

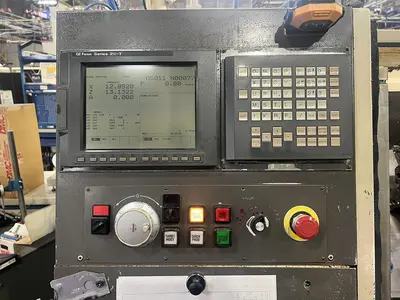

The 1999 Hardinge Cobra 51LC CNC Lathe features a reliable Fanuc 21i-T Series Control, offering precise operation and ease of use. Equipped with an S20 collet chuck and a hydraulic quill tailstock, this machine is designed for effective machining of various materials. The lathe includes a 12-position turret and multiple tool holders, supported by manuals for seamless setup and operation.

The Cobra 51LC offers a maximum swing of 22 inches and can handle a machining diameter of up to 8.25 inches and a length of 14 inches. With a spindle speed of up to 4500 RPM powered by a 20 HP motor, the machine delivers high-performance machining. Rapid traverse rates are 472 IPM on the X-axis and 787 IPM on the Z-axis, ensuring efficient production cycles.

Built with a robust structure, the machine weighs approximately 8,100 pounds and occupies a footprint of 93" x 68" x 73". This well-maintained unit, benefiting from its solid construction and advanced controls, is suitable for shops requiring consistent and precise operations for a variety of projects.
