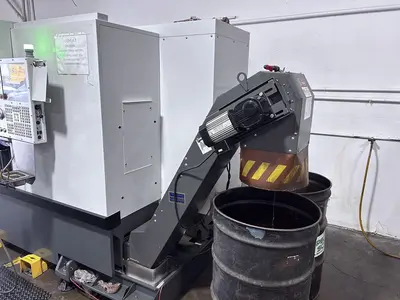

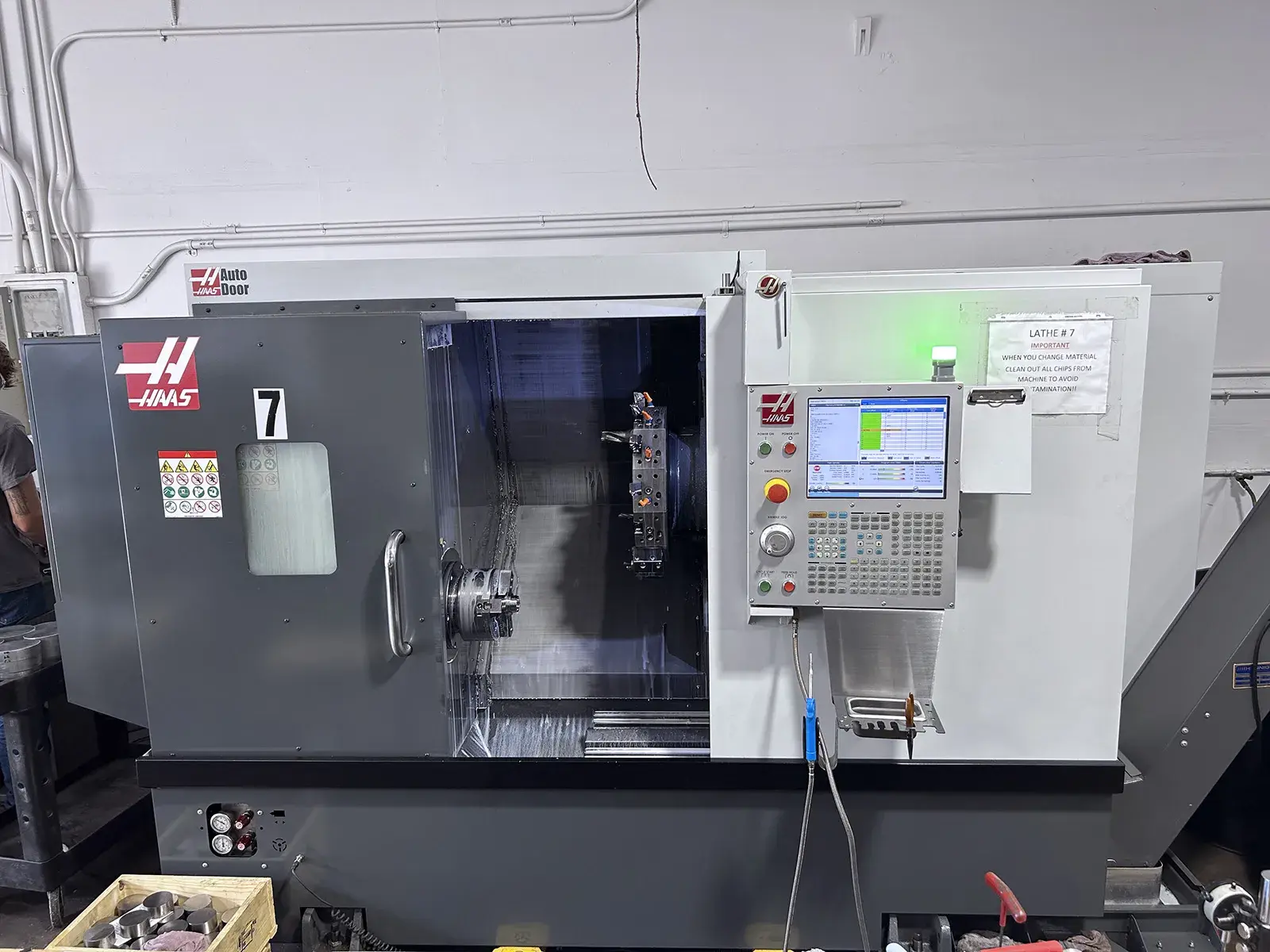

USED 2019 HAAS ST20T
Overview
The Haas ST-20T (2019) is a versatile CNC lathe designed for high-precision turning, facing, boring, drilling, and threading of metal or plastic components. Ideal for aerospace, automotive, oil & gas, medical, and general manufacturing, it delivers reliable, repeatable production of shafts, bushings, fittings, fasteners, and other cylindrical parts.
Specs
Haas Next Generation Control (NGC)
With 15" Color LCD
Samchully 8" hydraulic 3-jaw chuck
USB/Ethernet
Haas Auto Door
Programmable hydraulic tailstock with live center
12-station BOT turret
Hennig-type chip conveyor
Coolant tank 55 gal
Max cutting capacity: 15" x 21" (381 x 533 mm)
Swing over front apron / cross slide: 31.75" (806 mm) / 20.75"
Chuck Size: 8.3" (210 mm)
Bar Capacity: 2.0" (51 mm)
Spindle Bore: 3.0" (76 mm)
Spindle: A2-6/ 20 hp
Spindle RPM: 4,000 rpm
Spindle Torque: ~150 ft-lb
X Travel: 9.3"
Z Travel: 21.0"
Rapids X / Z: 945 ipm / 945 ipm
Max thrust X / Z: 4,100 lbf / 5,100 lbf
Footprint: ~143" x 90" x 92"
Weight: 10,500 lb
Equipped With
Haas Next Generation Control (NGC)
With 15" Color LCD
Samchully 8" hydraulic 3-jaw chuck
USB/Ethernet
Haas Auto Door
Programmable hydraulic tailstock with live center
12-station BOT turret
Hennig-type chip conveyor
Coolant tank 55 gal
