USED HOMAG EDGETEQ
Overview
Specs

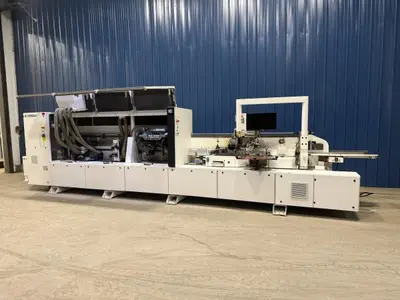

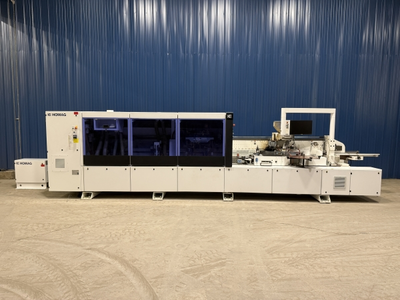

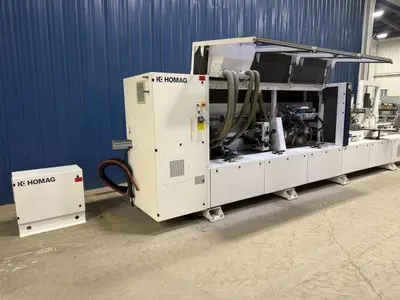

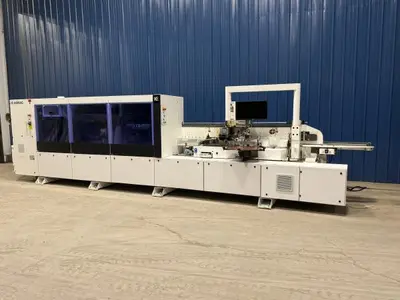

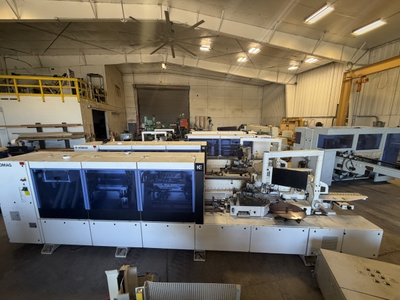

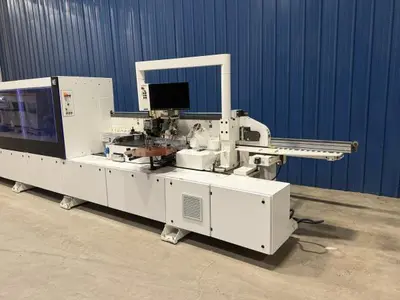

HOMAG Edgebanding Machine Tape Rocket 2.0 Left-Hand, 2021!
Edge Thickness Capacity: 0.3 - 3mm
Edge Height Capacity: 12 - 64mm
Minimum Workpiece Width: 60mm (w/ Workpiece Thickness 22mm or Less), 100mm (w/ Workpiece Thickness Greater Than 22mm)
Workpiece Thickness Capacity: 8 - 60mm
Release Agent Spraying Unit

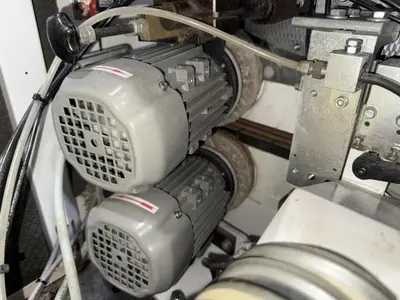

Pre-Milling Unit w/ Two Counter-Rotating 3kW Motors
Panel Pre-Heating

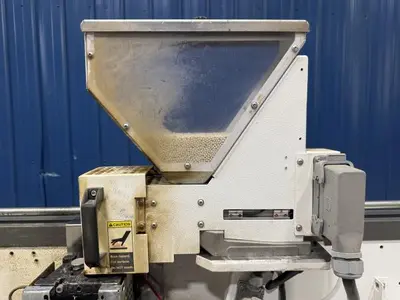

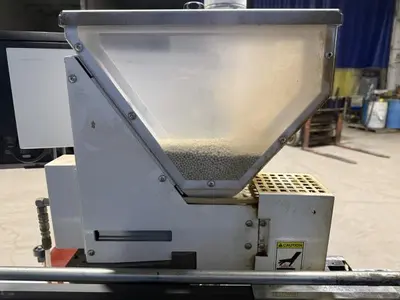

QA-65 P Gluing Unit w/ Quick Melt Pre-Melter
Pneumatic Guillotine
Five-Roll Pressure Section

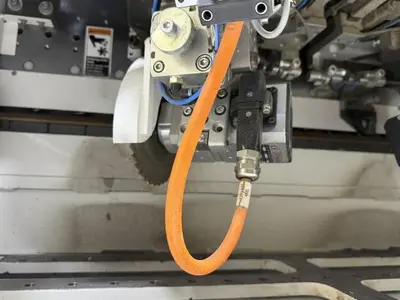

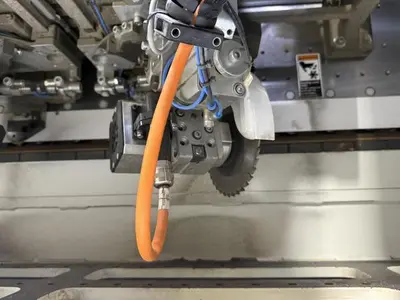

Two-Motor End-Trimming Unit, Programmable Reset from Chamfer to Straight

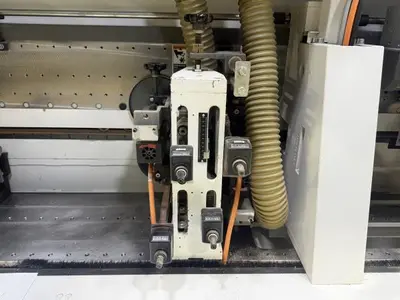

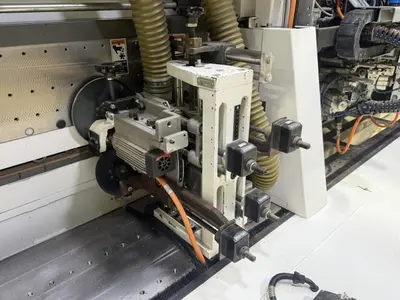

Two-Motor Fine-Trimming Unit, HSK Interface "I" System Tooling
Top & Bottom Profile Scraping Unit, Electro-Pneumatic Positioning, Quick-Change
Top & Bottom Glue-Scraping Unit, Electro-Pneumatic Positioning
Top & Bottom Edge-Buffing
Cleaning Agent Spray Unit

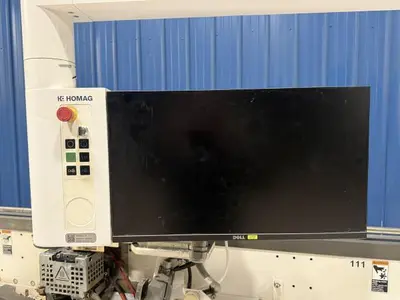

Homag powerTouch Control System w/ 24" Touch-Screen
Windows 10 Professional Operating System
Programmable Thickness Adjustment
Variable Speed Feed: 16 - 25 m/min
Rubber Padded Feed Chain w/ Double-Wide Hold-Down V-Belt
Pneumatically-Actuated Pop-Up Pin for Appropriate Feeding/Spacing of Workpieces

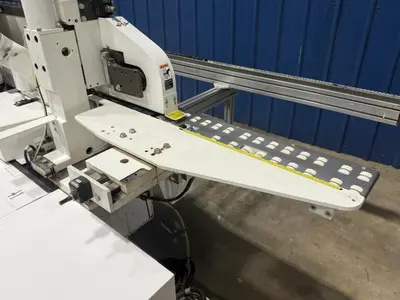

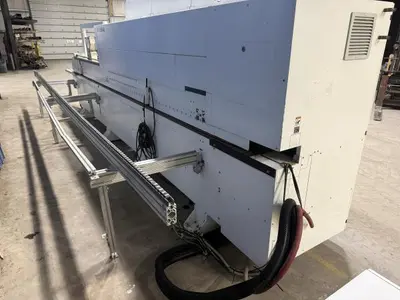

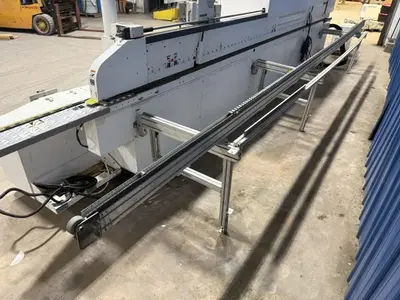

Adjustable Outrigger Support

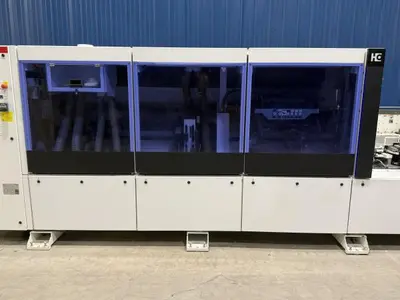

Sound/Safety Enclosure

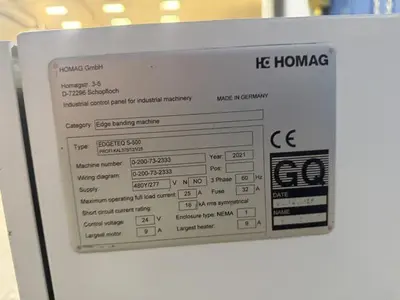

Year: 2021
480v, 3ph
Serial #: 0-200-73-2333
