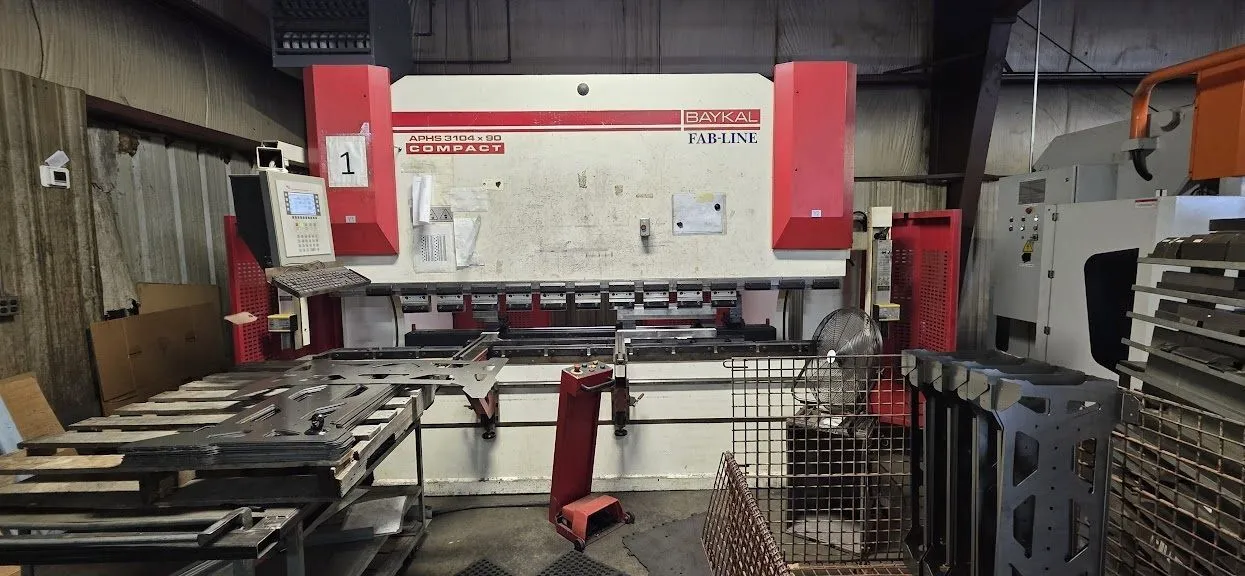

USED 2013 BAYKAL APHS 3104x90

Wisconsin, United States
647Listings|65Followers
Overview
Press Brakes

100 Ton x 10', 4-Axis CNC Hydraulic Press Brake
Y1, Y2, X, R Axis
CNC Motroized Crowning

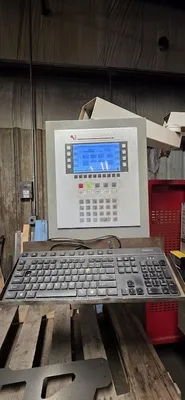

ESA 630 2D CNC Control

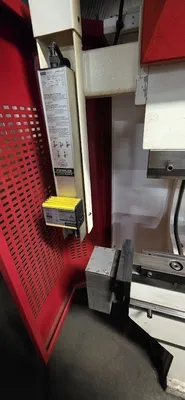

AKAS-II; Motorized Automatic Ram-Mounte Laser Safety
Precision European Clamps, and Riser Block

Specs
Tonnage
100 T
90.719 t
Overall Length
122"
3.1 m
Between Housings
102"
2.6 m
Stroke
9.8"
248.92 mm
# Axis
4
4
Control
CNC
CNC
Equipped With

4-Axis (Y1, Y2, X, R)
ESA 630 2D CNC Control
CNC Motorized Crowning
Motorized AKAS II Ram Mountd Laser Safety
Precision European Clamps & Riser Block
