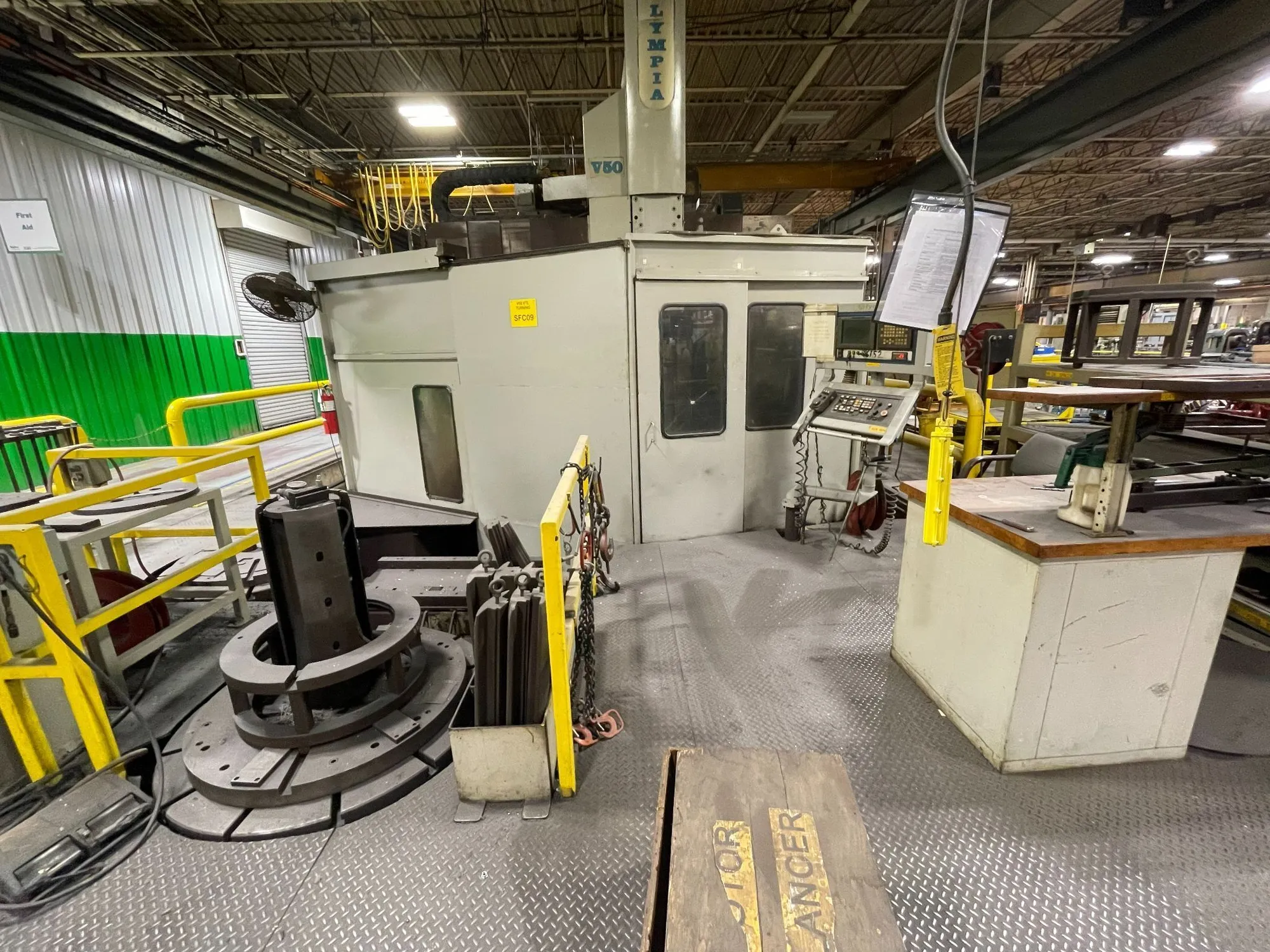

USED 2001 OLYMPIA V-50LP

Olympia V-50LP CNC Vertical Boring Mill with Live Milling

Capacity & Workpiece Dimensions

Table Diameter: 44" (1,120 mm)
Maximum Turning Diameter / Swing: 57.1" (1,450 mm)
Maximum Workpiece Height (Under Rail): 62" (1,575 mm)
Maximum Workpiece Height (Under Tool Block): 50" (1,270 mm)
Maximum Workpiece Weight: 22,000 lbs (10,000 kg) [1] , [2]
Spindle & Drive System
Main Drive Motor: 80 HP (60 kW)
Table Speeds: 1 – 450 RPM
Maximum Table Torque: 20,650 ft-lbs (28,000 Nm)
Travel & Axis Specifications
Ram Travel (Z-Axis): 39.4" (1,000 mm)
Head Travel (X-Axis): -4" to +43.9" (-100 mm to +1,115 mm)
Cross Rail Vertical Travel: 39.4" (1,000 mm)
Ram Cross-Section Size: 8.27" x 8.27" (210 mm x 210 mm)
Maximum Uninterrupted Cutting Force: 11,240 lbs (50,000 N) [1] (
Tooling & Tool Changer
Standard Automatic Tool Changer (ATC): 12-tool capacity (Single-column baseline models)
Optional ATC Upgrades: Available with expanded capacities from 16 to 60 tools
Machine Footprint & Dimensions
Floor Space Required (Length x Width): 165" x 200" (4,190 mm x 5,080 mm)
Overall Machine Height: 215" (5,460 mm)
Total Machine Weight: Approx. 62,000 lbs (28,150 kg) [1]
