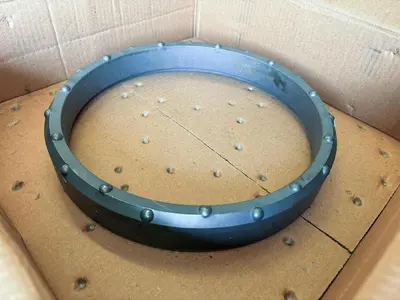

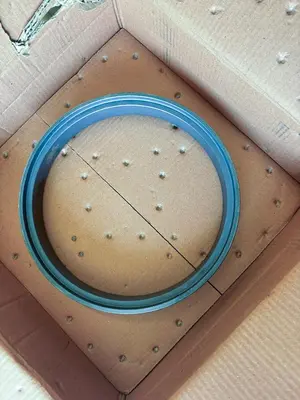

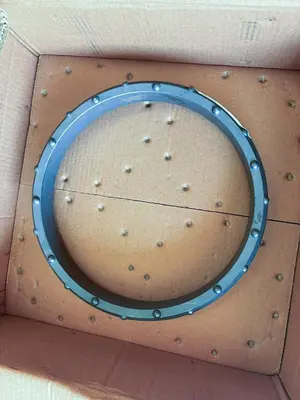

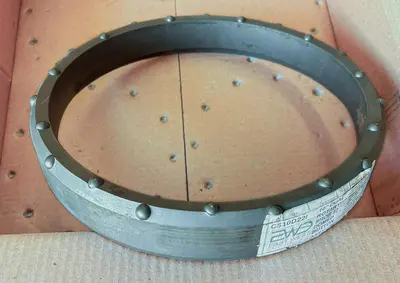

USED AFTERMARKET 10" DUAL ROTARY CASING SHOE – 22 DOMED BUTTONS ASSEMBLY

10" New - Dual Rotary Casing Shoe – 22 Domed Buttons Assembly
11 units in stock

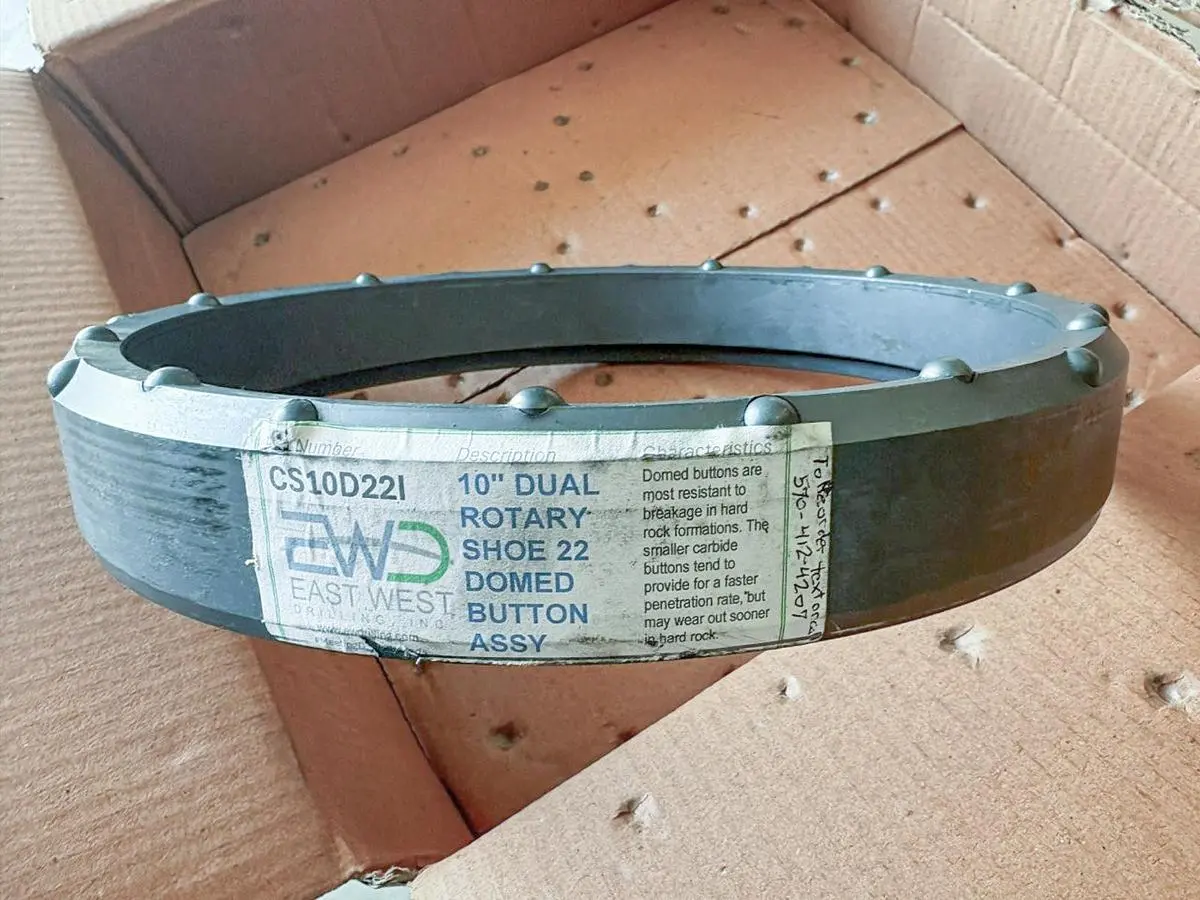

Part Number: CS10D22I
Casing Size: 10"

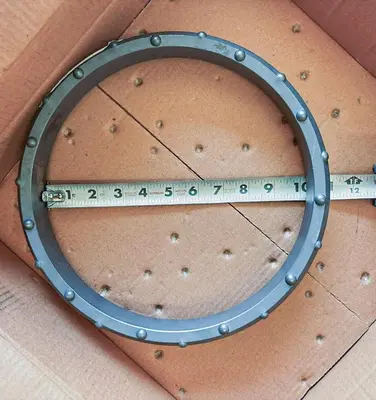

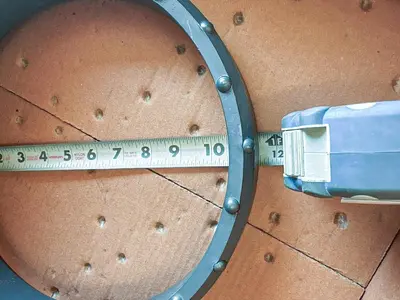

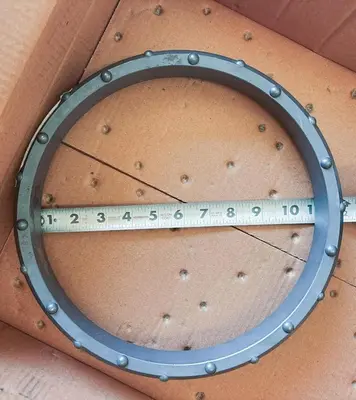

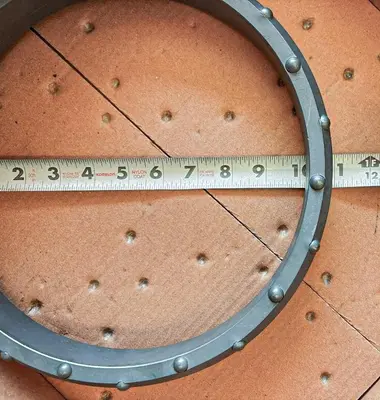

Bit Pass-Through Id: 10 -1/8"
Cutting Structure: 22 Domed Buttons
Designed For Dual Rotary Drilling:
Dual Rotary Drilling Proves to Be a Swift and Reliable Method for The Toughest Jobs, utilizing 2 Rotary Drive Mechanisms, Including A Lower Drive That Rotates the Casing.
Benefits include:
Rapid penetration through boulders, ledge, and bedrock
Reduced sidewall friction on the casing
Greater achievable depths
Protection against casing splits and damage
Ballistic Button Advantages:
Ballistic Buttons Have the Highest Penetration Rate in Medium-Hard Rock Formations.
Domed Button Advantages:
Smaller Carbide Buttons Tend to Provide Faster Penetration but May Wear Out Sooner in Hard Rock
Larger buttons give more surface area per carbide and will last longer in hard rock.
Ideal For Long Life in Abrasive Formations
Optional Customization:
·      Side Buttons Can be Added to Increase Borehole Reaming and Greater Longevity Through Difficult Formations.
·      Flutes (Available on Request)
·      Provide Relief for Hydrostatic and Formation Pressure When Pulling Casing
Assist With Screen Placement and Well Abandonment Operations
Located in Mifflinburg, PA USA
