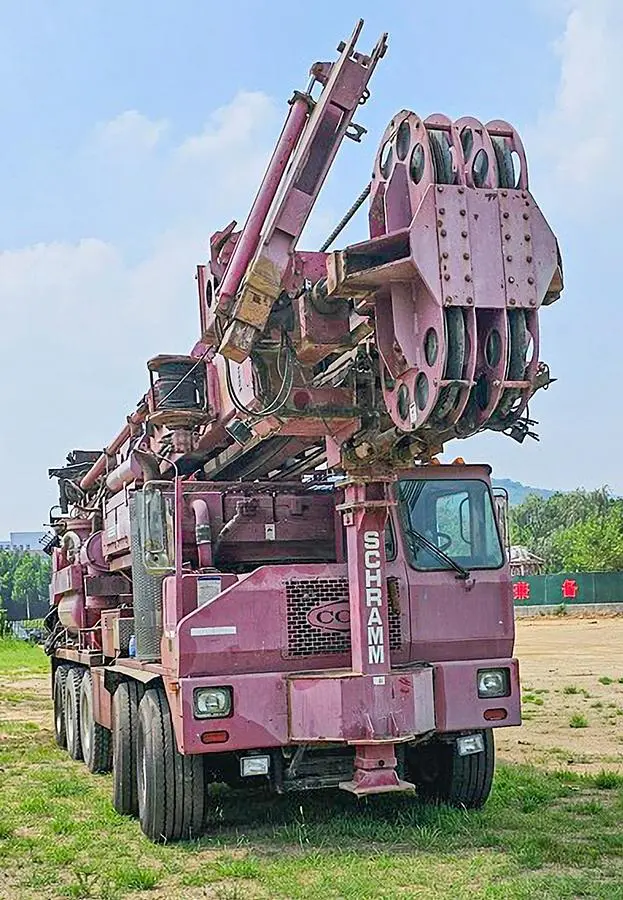

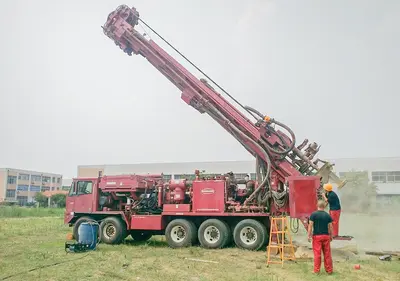

USED 2006 SCHRAMM T130XD DRILL RIG

2006 Schramm T130XD Drill Rig
Serial Number: J130-0158
Onboard Drill Compressor Selectable Air at 1,150 cfm @ 500 psi or 1,350 cfm @ 350 psi (32.6 m3/min @ 35.5 bar or 38 m3/min @ 24.1 bar)
Equipped with Schramm Patented Telemast® For Easy Portability And Fast Set Up (Telemast Design Offers Range III Tubular Capability In A Fully Portable Over The Road Package That Can Be Set Up In A Matter Of Hours Upon Arrival To The Drilling Site. )
Up to 130,000 lbf ( 578 kN) Pullback and Range III tubular capability
Precise Hydraulic Weight On Bit Control
Compact 43 ft (13.1 m) Transport Length With Less Than 6 - 8 ft (1.8 – 2.4 m) overhang
DECK ENGINE:
Detroit Diesel DDC/MTU 12V-2000TA DDEC
760 bhp (567 kw) @ 1800 rpm
2 X 110 Gallon (415 L) Fuel Tanks
Electric Start
AIR COMPRESSOR:
Variable Volume Two-Stage, Oil Flooded Rotary Screw Compressor
Selectable air: 1,150 cfm @ 500 psi or 1,350 cfm @ 350 psi (32.6 m3/min @ 35.5 bar, 38 m3 min @ 24.1 bar)
Schramm Patented Air-Control
COOLING:
Three Core, Side By Side Heat Exchanger With Variable Speed Cooling Fan
117°F (47°C) Ambient Design Temperature
CARRIER:
CCC 8 x 4 carrier
Cummins Engine Rated 425 hp @ 2,100 rpm
44,000 lb (19,955 kg) Front Axle
21,500 lb (9,750 kg) Pusher Axle
52,000 lb (23,587 kg) Full Locking Rear Axle
117,500 lb (53,298 kg) GVWR
 VIN: 1CYDGV6877TO47573

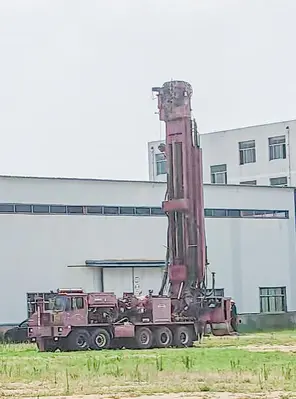

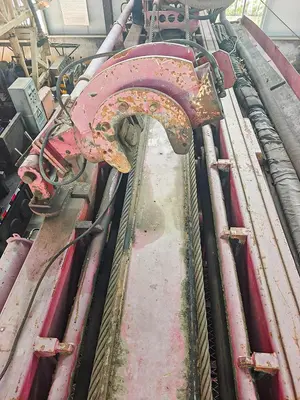

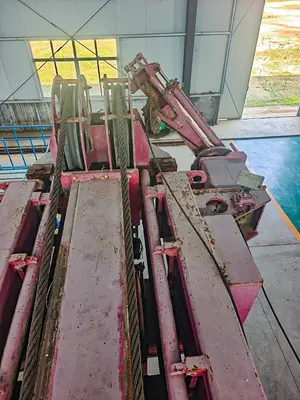

MAST:
Telescoping Mast Design Permits Long Head Travel And Working Height, Yet Short Overall Length In Transport Position
Free-Standing Mast Design
Hydraulically Operated Adjustable Mast Feet
69 Ft 9 Inches (21.25 M) Overall Height Fully Extended
42 ft 9 inches (13 m) Overall Height Retracted For Transport

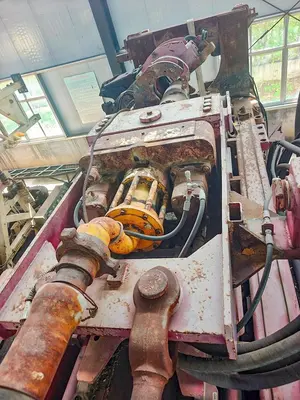

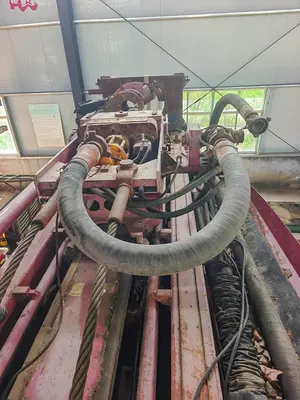

TOP HEAD DRIVE:
Heavy Duty, Single Reduction Gearbox With Multiple Disc Valve Type Hydraulic Motors
Infinitely Variable Rotation Speed via HRC Control
Maximum Torque: 8,884 ft-lbs (12,045 N-m)
Rotation Speed: 0-143 RPM
Maximum Operating Pressure: 3,000 psi (208 bar)
FEED SYSTEM:
50 ft (15.24 m) Head Travel
130,000 lbf (578 kN) Pullback
125 fpm (38.1 m/min) Pullback Speed
32,000 lbf (142 kN) Pulldown
270 fpm (82.3 m/min) Pulldown Speed

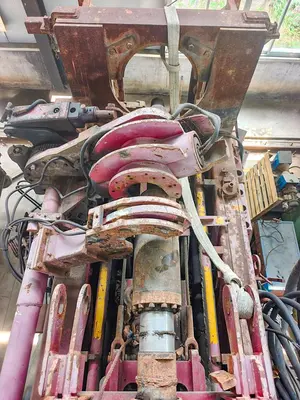

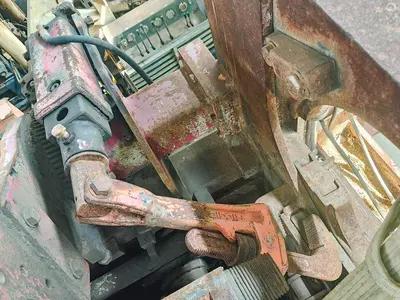

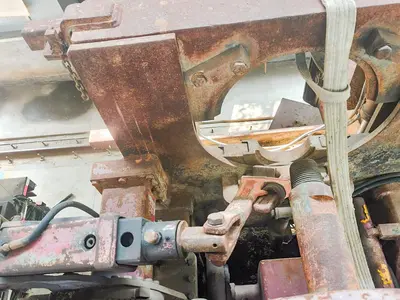

DRILL TABLE:
Table Opening: 20 inches (508 mm) or 28 inches (711 mm) with Table Retracted
OUTRIGGERS:
Single Front - 5 inch (127 mm) bore x 41 inch (1.04 m) Stroke
Dual Rear - 5 inch (127 mm) bore x 41 inch (1.04 m) Stroke

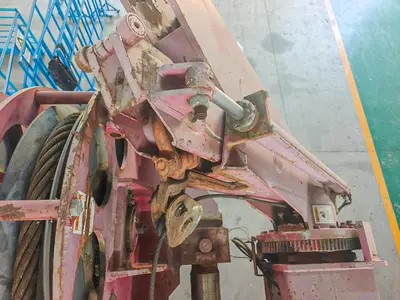

WINCH
Planetary Design With Spring Applied Hydraulic Release Brake
9,600 lbf (42.7 kN) Bare Drum Line Pull
150 fpm (46 m/min) Bare Drum Line Speed
HYDRAULIC SYSTEM:
Open Loop Load Sensing System
200 gallon (760 l) System Capacity
7 Micron Filtration
WATER INJECTION SYSTEM:
25 gpm (95 lpm) Water Pump
Electric Foam Pump
TOOL LUBRICATOR:
 Positive Displacement, Air Operated Piston Type Pump
Oil flow: 0 - 5.0 g/hr (0 – 19 l/hr)
LIGHTING & ELECTRICAL SYSTEM:
24 Volt DC Electrical System
Mast - (4) 60 Watt Floodlights
Control Panel - (2) 60 Watt Gauge Floodlights
Work - (3) 70 Watt Halogen
RIG WEIGHT AND DIMENSIONS:
OA Length, Transport: 42 ft 9 inches (13 m)
Front Mast Down Transport Overhang Ranges 6 - 8 ft (1.8 – 2.4 m)
OA width: 8 ft 6 inches (2.6 m)
OA Height, Transport: 13 ft 6 inches (4.1 m)
Typical GVWR: 100,000 - 110,000 lbs (45,359 - 49,895 kg)
DRILL PIPE AND CASING:
Range III Tubular Capability
28 inch (711 mm) Maximum Diameter Through The Slip Box
