2008 Schramm TXD200 Drill Rig
Key Features
2008 Schramm TXD 200
Approximately 8,580 Original Hours
One-Owner Machine
Only Drilled 4 Wells Since New
Stored Indoors for The Past Several Years
Schramm Telemast® Telescoping Mast
Loadsafe® Automated Pipe Handling System
200,000 Lb. Hoist Capacity
32,000 Lb. of Pulldown
50 Ft Head Travel
Range III Tubular Capability
Heavy-Duty Tilting Top Head Drive
Recently Serviced & Refurbished
An Extensive Refurbishment Has Recently Been Completed, Including:

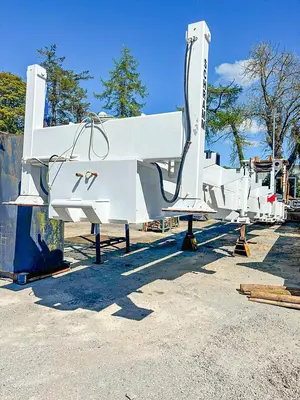

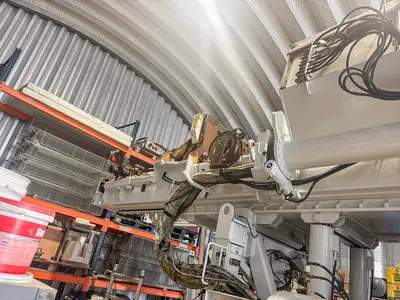

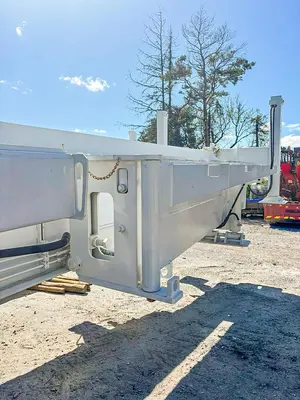

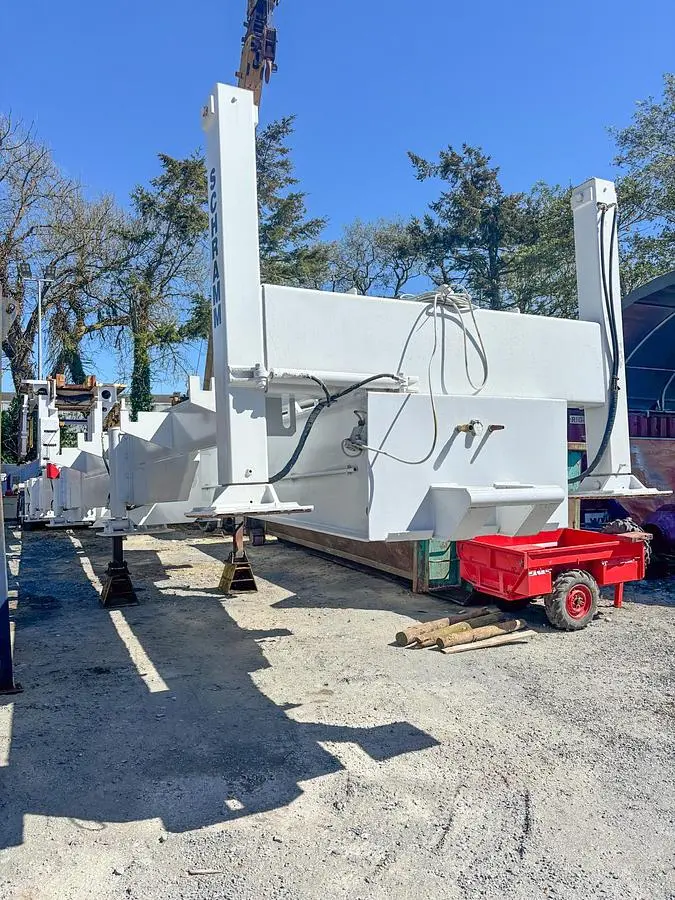

Rig And Loadsafe Loader Primed and Painted

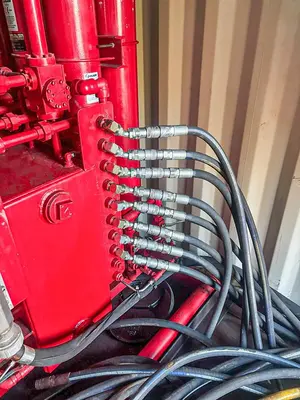

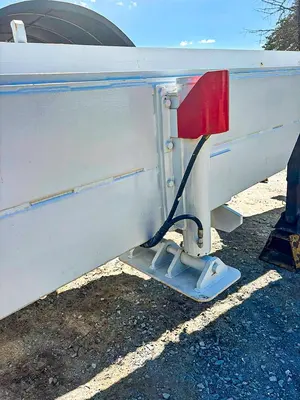

(10) New Loadsafe Jack Leg Cylinders

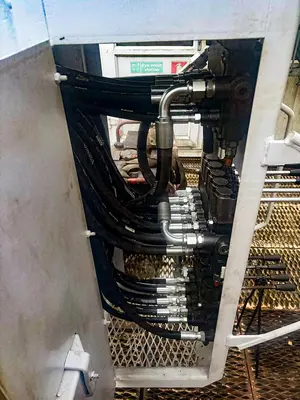

Loadsafe Control Panel Rebuilt and Rehosed With 3 New Spool Blocks

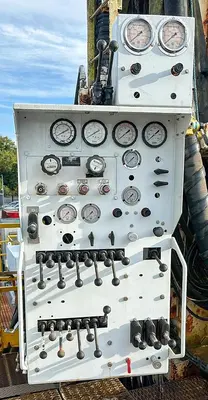

Complete Rig Control Panel Rebuild
New Gauges

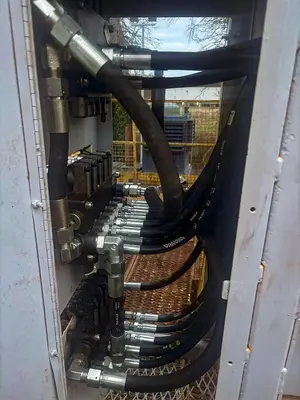

New Pilot Control Valves
New Pressure Regulators
New Flow Regulators
New Parker Shut-Off Valves
New Handle Kits on Spool Blocks
New Engine Radiator
New Engine Coolant Piping

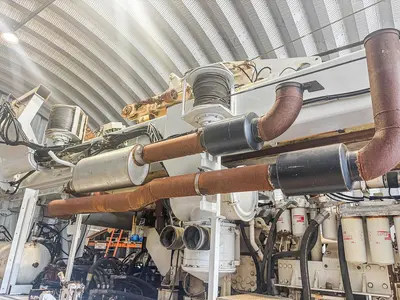

Complete New Exhaust System
New Exhaust Boxes
New Doosan Spark Arrestors
New Slave ECU For Deck Engine
Deck Engine Turbocharger Rebuilt
New Genuine Schramm Steel Hydraulic Pipes to Mast

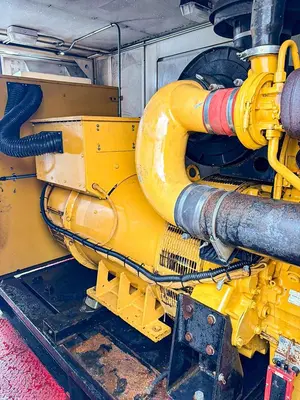

Deck Engine

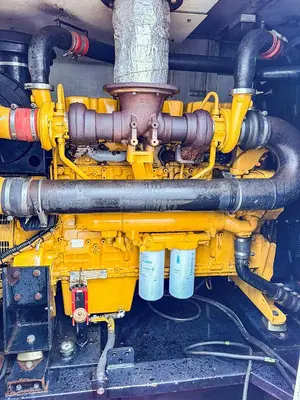

• Detroit Diesel DDC/MTU 12V-2000TA DDEC Engine
• Rated 760 BHP (567 KW) @ 1800 RPM

General Specifications:

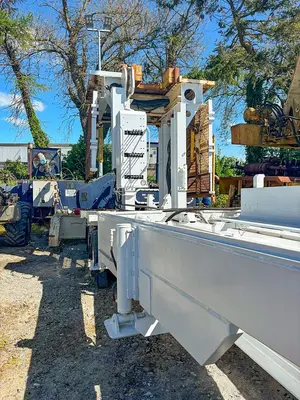

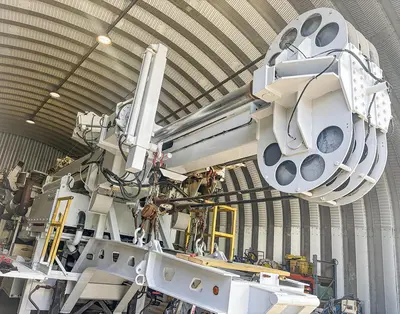

• Schramm Patented Telemast® for Easy Portability
And Fast Set Up
• Up To 200,000 LBF (890 KN) Hoist Capacity
• Up To 32,000 LBF (142 KN) Pulldown
• Range III Tubular Capability
• Loadsafe® Automated Pipe Handling System Included
• Telescoping Mast Design Permits Long Head Travel And
Working Height, Yet Short Overall Length in Transport Position
• Free-Standing Mast Design
• Hydraulically Operated Adjustable Mast Feet and Slip Box

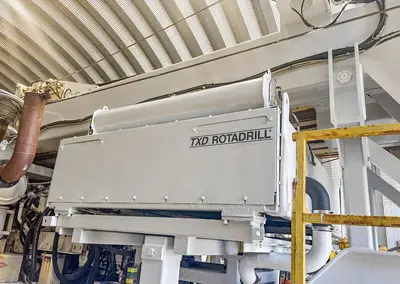

Tilting Top Head Drive
• Heavy Duty, Single Reduction Gearbox With 4 Two-Speed Disc
Valve Type Hydraulic Motors
• Infinitely Variable Rotation Speed Via HRC Control
• Torque: 0-100 Rpm @ 18,700 Ft-Lbs (24,404 N-M) & 0-160
Rpm @ 12,500 Ft-Lbs (16,269 N-M)
• Rotation Speed: 0 - 160 RPM
• Maximum Operating Pressure: 5,000 PSI (344 BAR)

Feed System
• 50 Ft (15.24 M) Head Travel
• 200,000 LBF (890 KN) Hoist Capacity
• 100 Fpm (30.5 M/Min) Hoist Speed
• 32,000 LBF (142 KN) Pulldown
• 200 Fpm (61 M/Min) Pulldown Speed

Drill Table
• Table Opening: 30 Inches (762 MM) Diameter with Table
Retracted
• Hydraulically Retractable Slip Box

Drill Pipe and Casing
• Range Iii Tubular Capability
• 30 Inch (762 MM) Maximum Diameter Through the Slip Box

Loadsafe® Automated Pipe Handling System

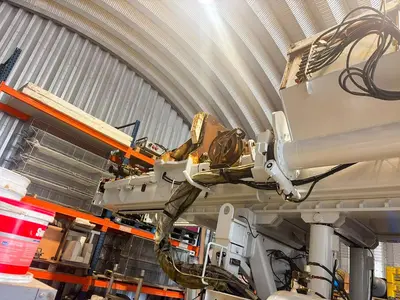

• Lifts Drill Pipe and Casing from Horizontal Position Into
Alignment With Tilting Top Head
• Racks And Stores Tubulars

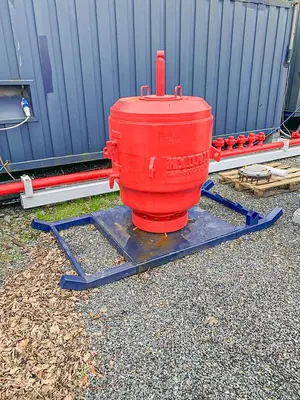

• Positions Blowout Preventer
• 47 Ft (14.3 M) Maximum Tubular Length, Range III
• 30 Inch (0.76 M) Maximum Diameter Casing Capability
• 5,000 Lb. (2,268 KG) Tubular Lift Capacity

Winch
• Planetary Design with Spring Applied Hydraulic Release Brake
• 9,600 LBF (42.7 KN) Bare Drum Line Pull
• 150 Fpm (46 M/Min) Bare Drum Line Speed
• Hydraulic Jib Boom Swing and Extend
• Auxiliary Winch Available

Outriggers
• Dual Front - 5 Inch (127 MM) Bore X 36 Inch (0.91 M) Stroke
• Dual Rear - 5 Inch (127 MM) Bore X 41 Inch (1.04 M) Stroke

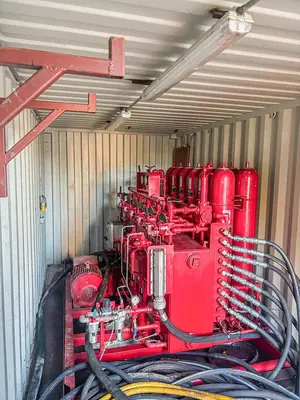

Hydraulic System
• Open Loop Load Sensing System
• 210 Gallon (795 L) System Capacity
• 7 Micron Filtration

Electrical System
• 24 Volt DC Electrical System

Backyard Also Available

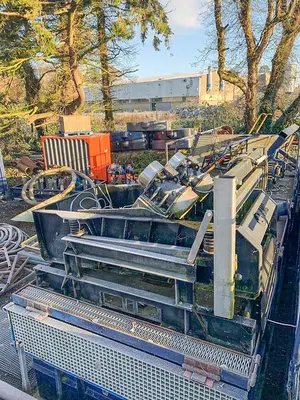

Machinery List as Follows:

Description                                                   Weight    Load     Dimensions
                                                                                                    W.       H.

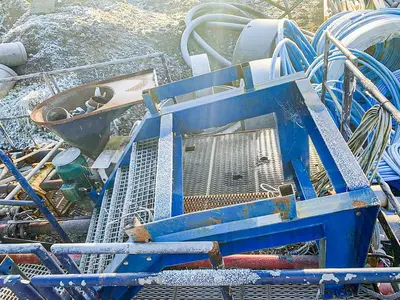

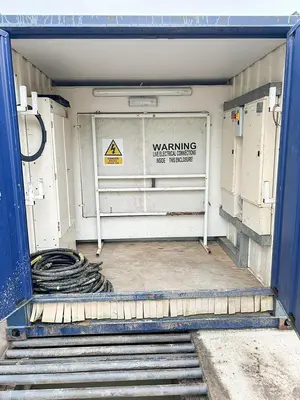

Mechanic Workshop/Hot Works Roof    9t        20'      8'        8'6"     Checked
Parts Store 1/ Rig & Filter Store            9t        20'      8'        8'6"     Checked
Parts Store 2 / Mud Pump Spares         9t        20'      8'        8'6"     Checked
Toilet Block/Shower Block                      5t        32'      9'        8'6"     Checked

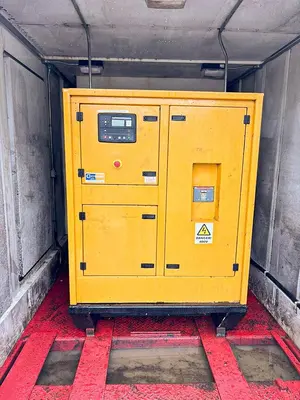

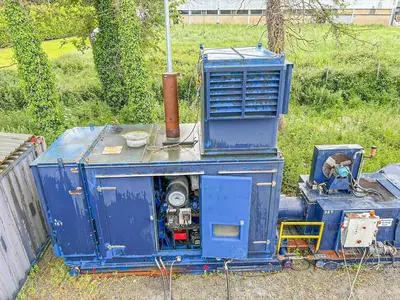

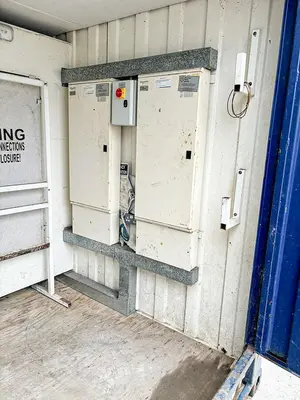

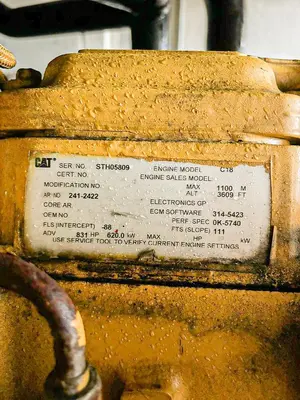

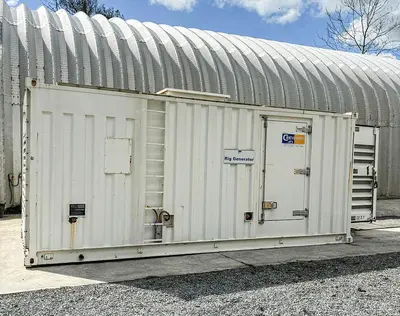

Rig Generator 650KVA                           10t      20'      8'        10'      Checked

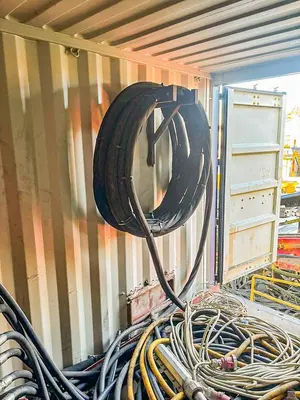

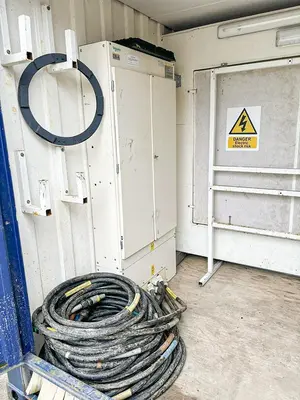

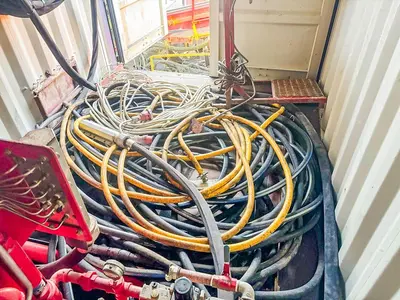

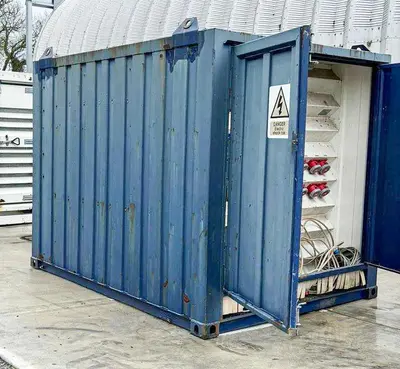

Electrical Distribution Room & Cables    2.5t     10'      8'        8'6"     Checked

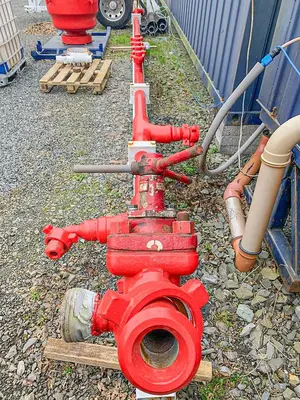

Kommey Unit, Choke Manifold,

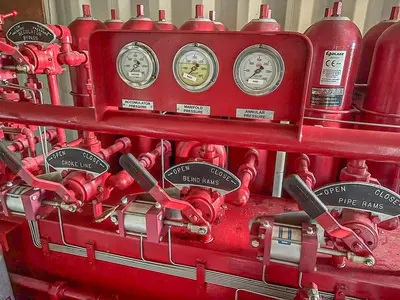

Annular & Bop                                        7t        20'      8'        8'6"     Checked

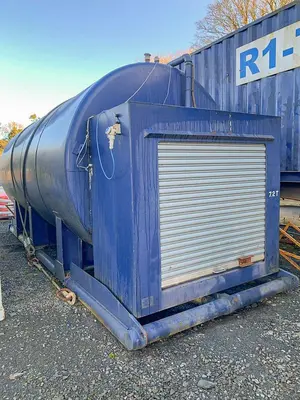

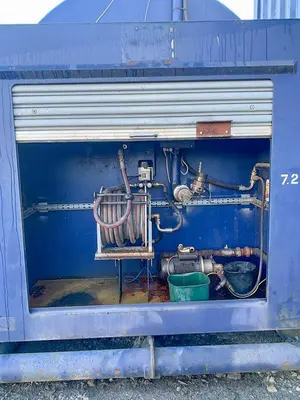

Fuel Bowser                                           10t      26'      9'        10'7"   Checked
Drill Water                                              5t        14'      9'        10'7"   Checked
Fire Water                                               8t        27'      9'        10'7"   Checked

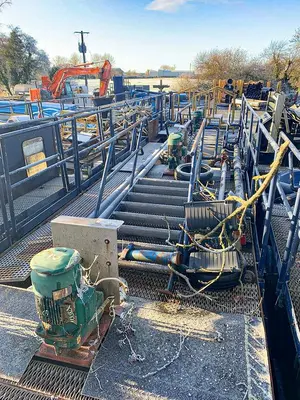

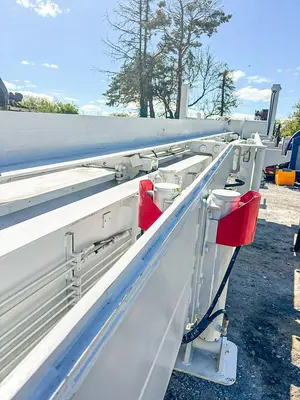

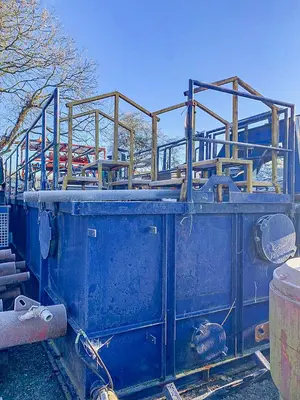

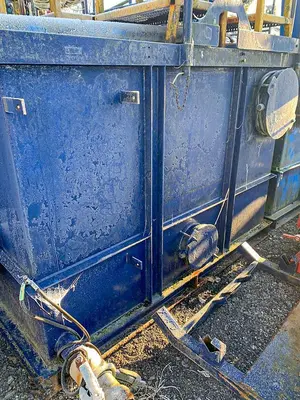

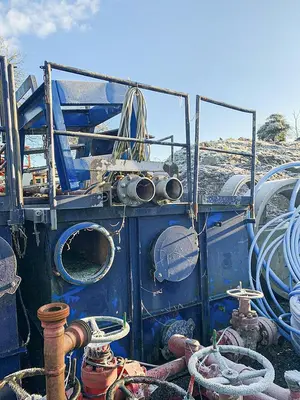

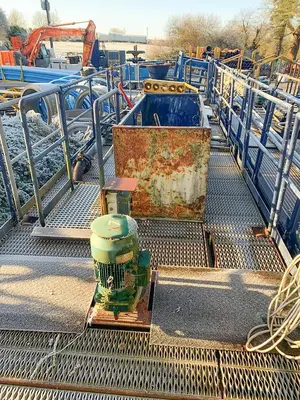

Shaker Tank & Shakers                          7t        30'      8'        9'        Checked

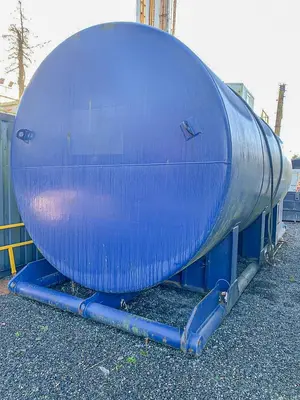

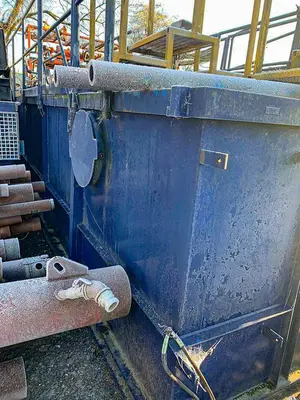

Active Tank                                             14t      40'      8'        9'        Checked

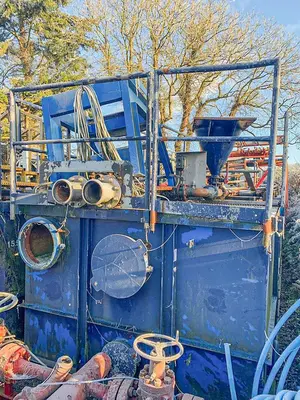

Mix Tank                                                 14t      40'      8'        9'        Checked
Trip Tank                                                                                             Checked
Charge Pumps & Transfer Pumps                                                       Checked

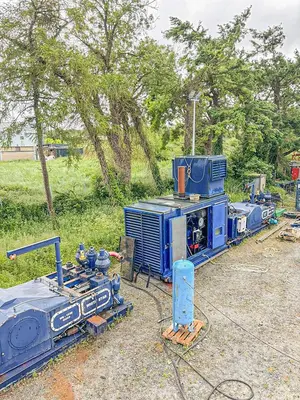

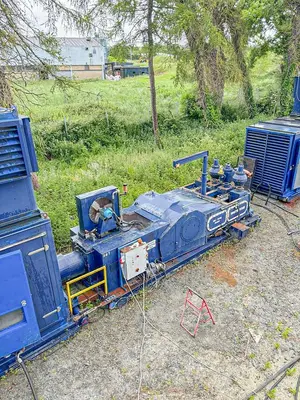

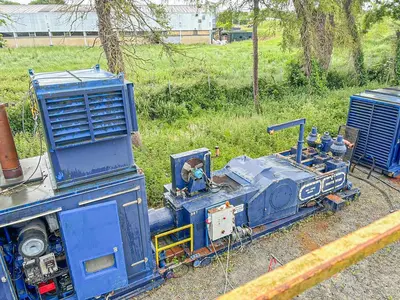

Mud Pump 1                                            35.5t   24'      8'        10'      Checked
Mud Pump 2                                            35.5t   24'      8'        10'      Checked
Mud Pump Engine 1                               16.5t   18'      8'                    Checked
Mud Pump Engine 2                               16.5t   18'      8'                    Checked

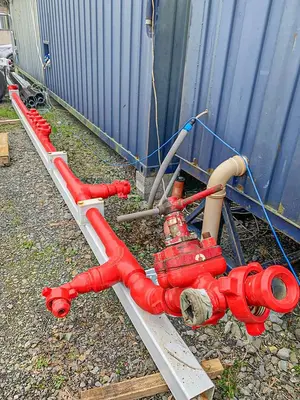

LP & HP Manifolds                                                                                Checked
Junk Basket 1                                          12t      20'      8'        3'        Checked
Junk Basket 2                                          10t      18'      6'6"     2'        Checked

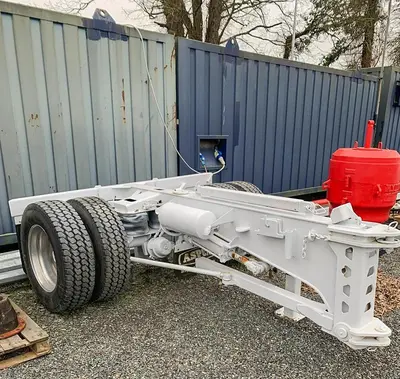

TXD Rig                                                51.5t   52'11" 9'9"     13'5"   Checked
TXD Load Safe                                        19t      61'1"   9'2"     12'5"   Checked

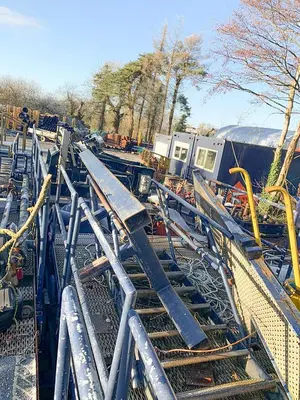

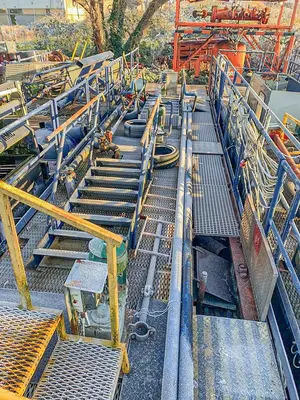

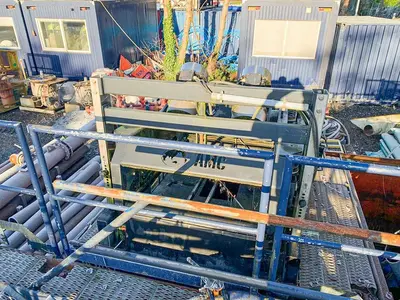

Sub Base                                                 22t      45'      9'10"    5'        Checked
Sub Base Ramp                                       4t       12'      9'10"    3'        Checked
Bop Rail                                                   1t        12"      4"        2"       Checked
Dog House Trailer Including Container                                                Checked
Muster Station                                                                                      Checked

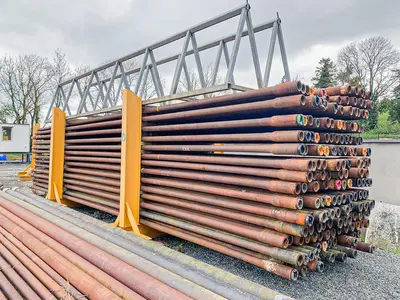

3 1/2" Drill Pipe (6500ft)                                                                       Checked
3 1/2" HW (X11)                                                                                   Checked
4 3/4" Spiral Collars (X13)                                                                    Checked
5" HW (X12)                                                                                          Checked
6 1/2" Drill Collars (X4)                                                                          Checked
8" Drill Collars (X4)                                                                                Checked
Small Parts Basket with Sub Savers                                                     Checked

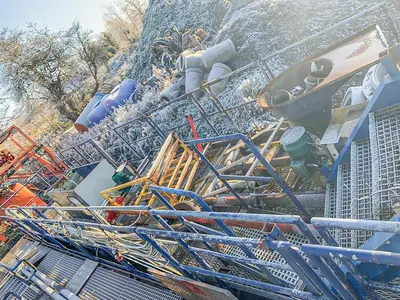

Handrails & Misc Stepovers                                                                  Checked
2 X Septic Tanks                                                                                    Checked
Drill Spools, Bell Nipples & 2 X Strainer Boxes                                                                                                     Checked
Located in Northern Europe
