USED 2003 GUS PECH 1300 BRAT SERIES AUGER DRILL

2003 Gus Pech 1300 Brat Series Auger Drill
Per the Seller: Single Owner, Purchased New From Factory, Rig In Good Working Condition And Ready For Work Immediately, Used Primarily As A Very Powerful Auger For Geotechnical And Environmental Drilling Applications, Also Used For Some Water Well Work
Mounted To A 2003 Sterling 6 X 4 Truck
CAT Engine – PTO Driven From Truck Engine
13,000 Ft Lbs Torque
18,400 Lbs Pulldown
24,500 Lbs Pullback
Rig Has 18,200 Hours – New Engine At 12,900 Hrs – (5300 Hours On Engine)
12" Tube Style Mast
Two Way Cross Top Head Slide
Planetary Top Head Drive Gp-1300 Hydrostatic Top Head Drive 0-65 Rpm @ 13,000 Ft Lbs., 0-145 Rpm @ 5,828 Ft Lbs Torque
24" Stroke, Cable, Hyd Cylinder Actuated Pulldown/Retract Drill System (Pulldown 18,412 Lbs/Retract 24,537 Lbs.)
Bypass Circuit For Rapid Pulldown/Retract System
Pulldown/Holdback Feed Control System
Two Speed Retract
Dual Hydraulic Pump Drive System With Enlarged Gear Pumps For Increased Speed
Oil Cooling System
Standard Lighting (2)
Tower Tool Carrier For Transportation
4 Point Outriggers: 5'X36"X3" Front Behind Cab Hosed Together With One Control And 5'X30"X3" Rear

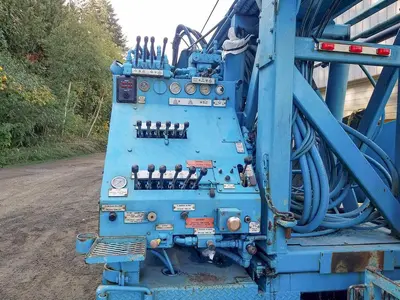

Operator Controls Including Tachometer, Key Ignition Switch, And Gauges Pertinent To The Operation Of The Drill
Angle Drilling Lower Tower Supports
Operator Foot Stand
Hydraulic Slide Base
Hydraulic Lowering Brat E Style Foot Guide With Hydraulic Tool Clamp (Enlarged To Handle 8 1/4" Id Augers)
Hydraulic Swing Around Jib With Hydraulic Extension
2,000# (First Layer) Gp Winch, With Large Dia. Drum, With Headache Ball, 1/4" X 150' Cable With Swivel Hook, On Jib
12,000# (First Layer) Pullmaster Winch With Rapid Reverse, 1/2" X 200' Cable With Swivel Hook Diedrich Sample Hammer System
Stationary Drill Rod Rack (10') With Hammer Holder For NWJ (150'-30 Rods)
Special 5' Rod Rack And 10' Rod Rack For 20 AWJ Rods
Swing Around Auger Racks (2) Under Both Sides Of Rig
Swing Around Auger Rack, Rear Mounted As Per Basil Rig
2 1/2" U-Joint Attachment With 2" Adapter
2 Sets Auger Guide Bushing (8 1/4" Id, Customer Specify)
Cotta Heavy Duty Transfer Case System
Located in Western Region
