USED WERNER & PFLEIDERER UK2000AEL

🏭 Manufacturer Information:

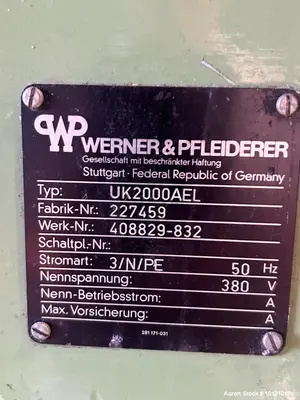

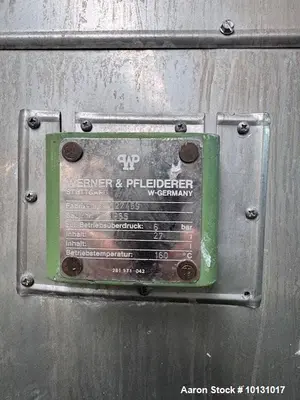

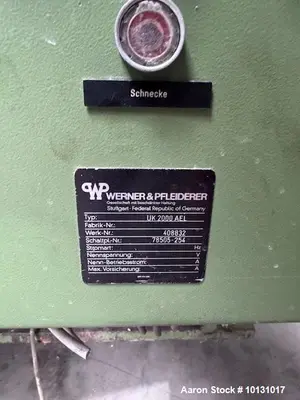

Manufacturer: Werner & Pfleiderer

Type/Model: UK2000AEL

Construction: 316 Stainless Steel

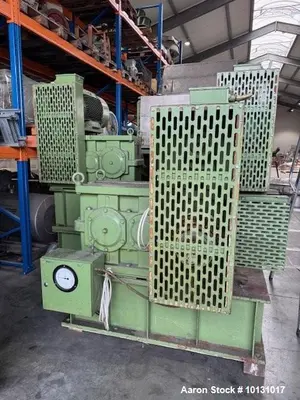

Drive: Motor-driven via gearbox

Weight: 14.8 tonnes (approx. 32,600 lbs)

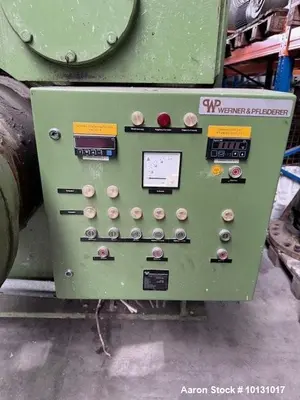

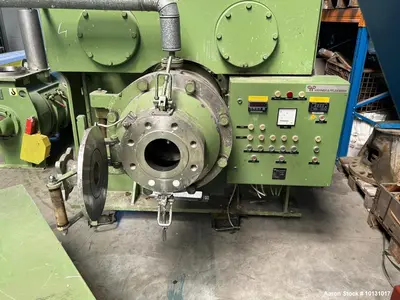

Includes: Integrated control panel

📄 Description:

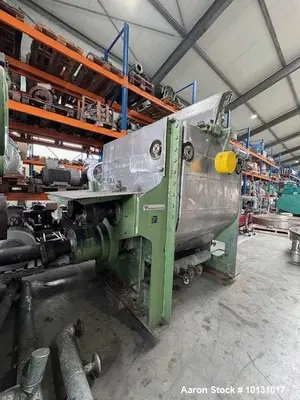

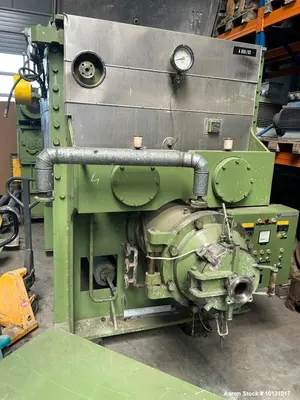

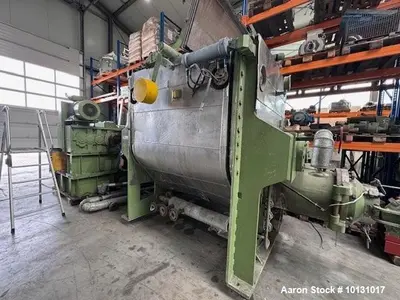

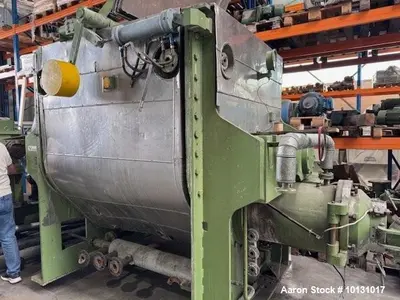

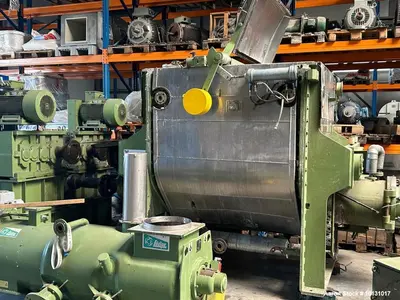

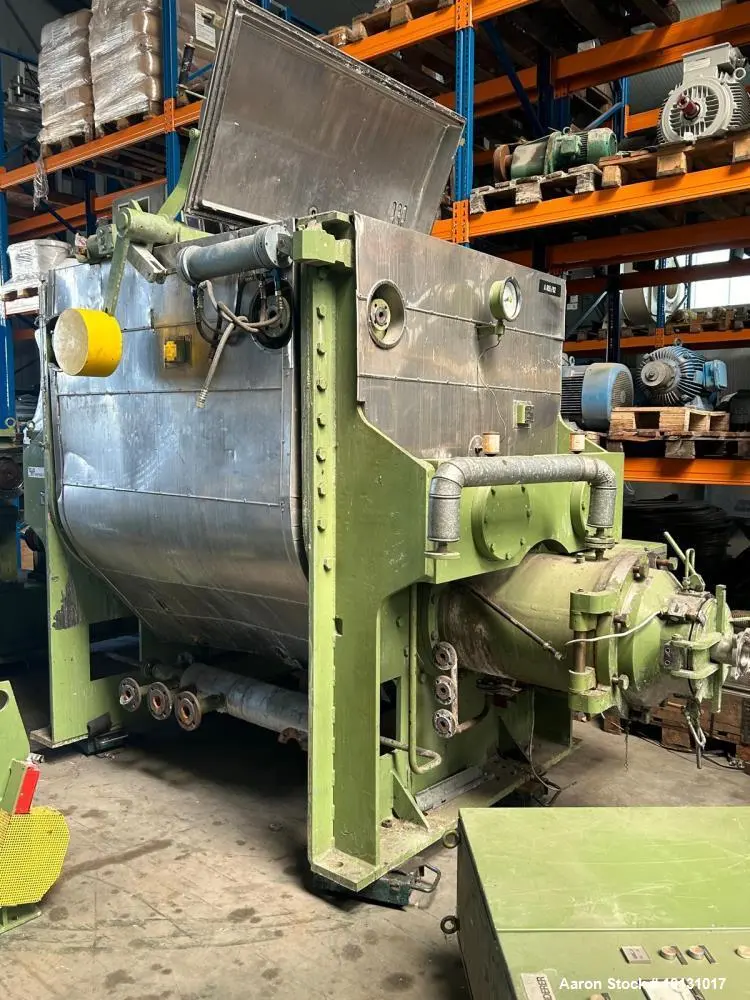

This used Werner & Pfleiderer UK2000AEL mixer/extruder is a heavy-duty industrial mixing system designed for processing highly viscous or dense products. Constructed from 316 stainless steel, it offers excellent resistance to corrosion and contamination—ideal for sanitary, chemical, or high-specification applications.

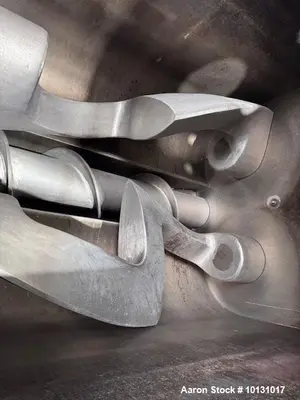

Equipped with sigma-style mixing blades and double jacketed construction for thermal regulation, this machine features robust 7.8" (200 mm) shafts and a large-capacity stainless bowl. The system is driven by a motor through a gear reducer and comes with its own control panel for integrated operation.

🛠️ Specifications:

Total Capacity: 793 gallons (3000 liters)

Working Capacity: 530 gallons (2000 liters)

Bowl Dimensions:

56.6" wide x 65.5" long x 54.6" deep

(1450 mm x 1680 mm x 1400 mm deep)

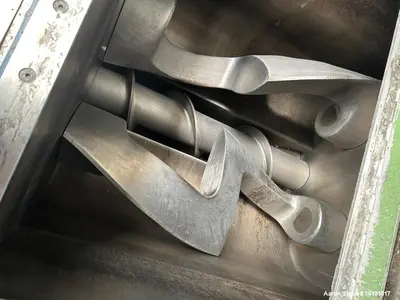

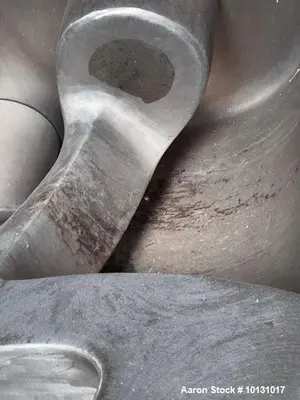

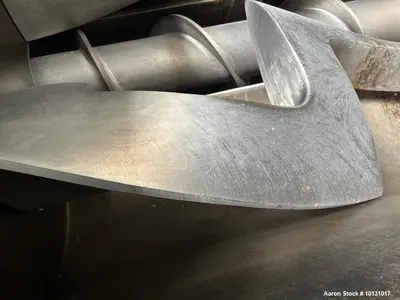

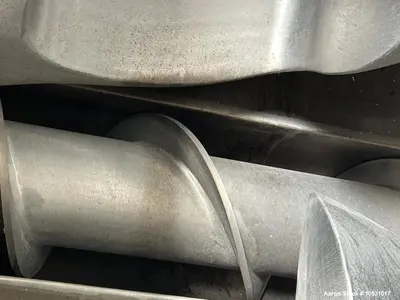

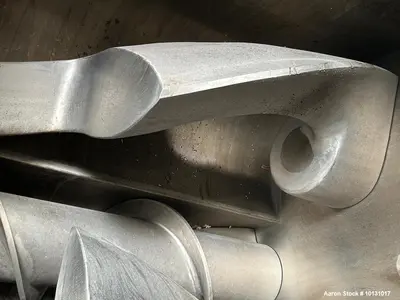

Mixing Blades: Sigma-style

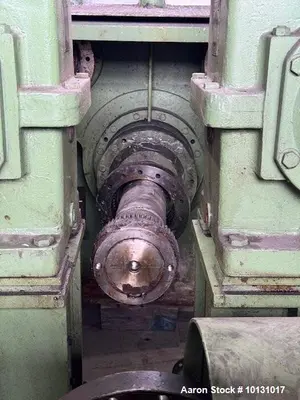

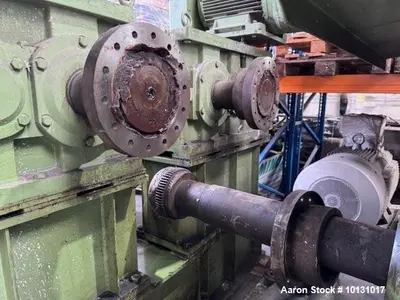

Shaft Diameter: 7.8" (200 mm)

Construction Material: 316 Stainless Steel

Jacket Type: Double jacketed (for heating/cooling)

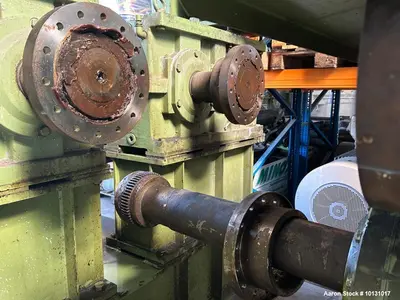

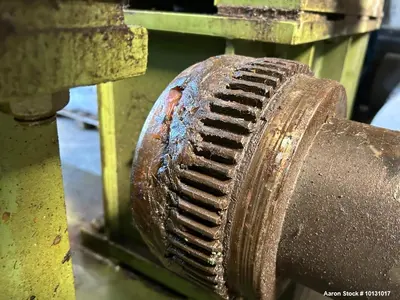

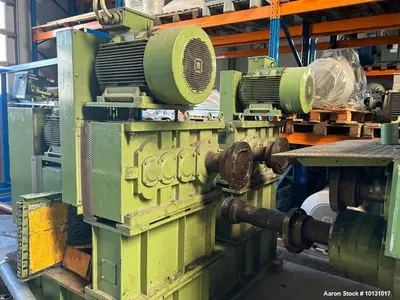

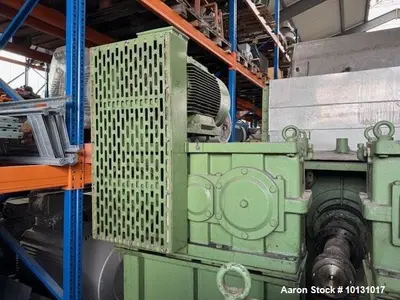

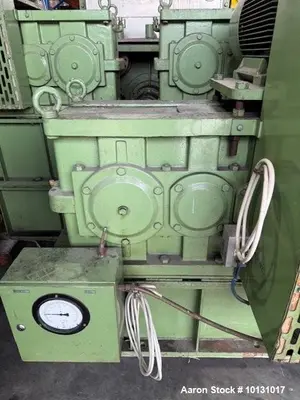

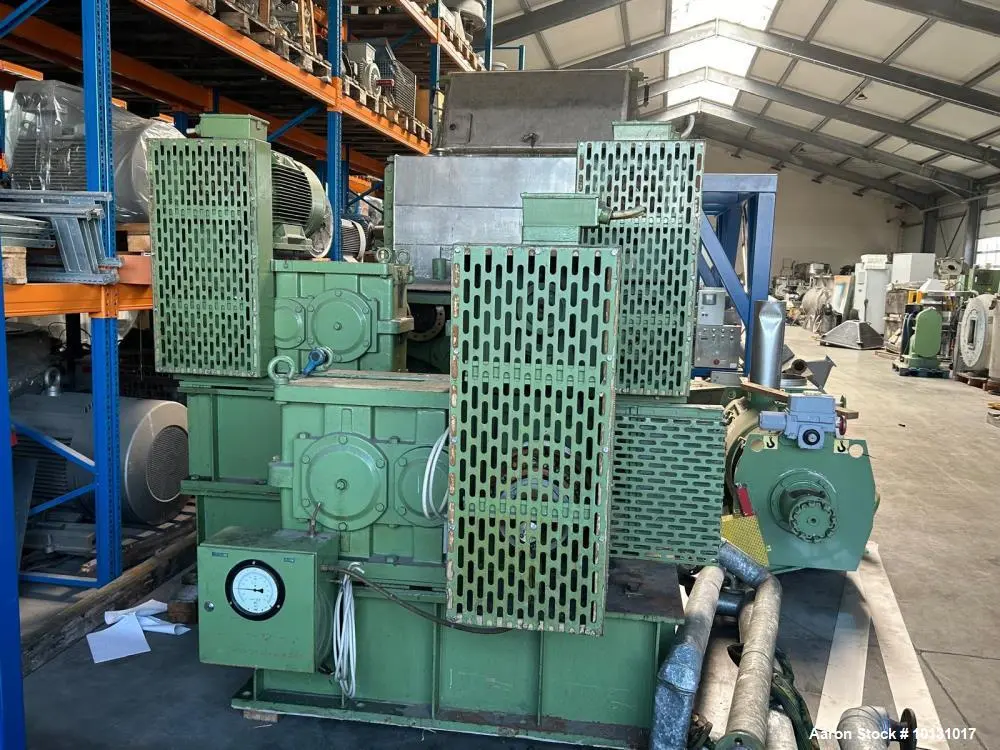

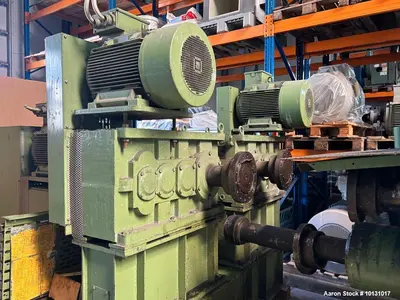

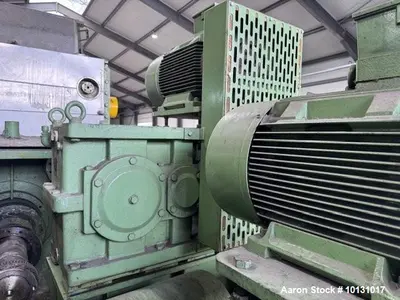

Drive System: Motor with gearbox

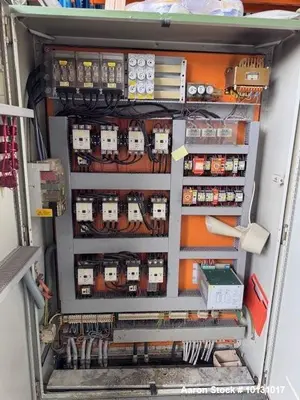

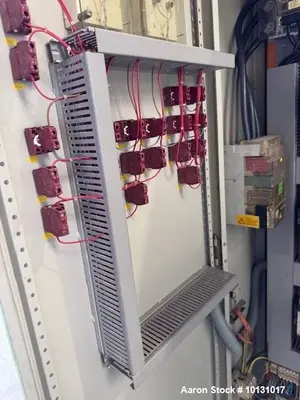

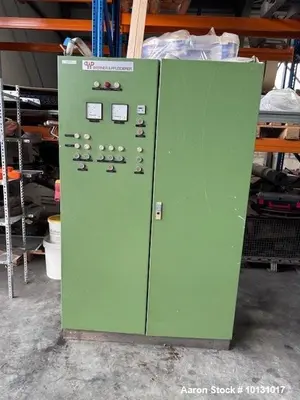

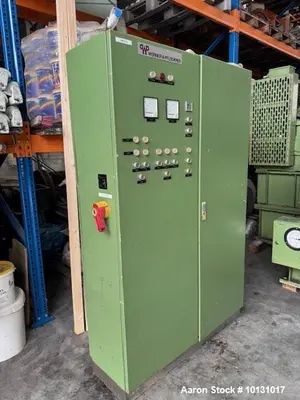

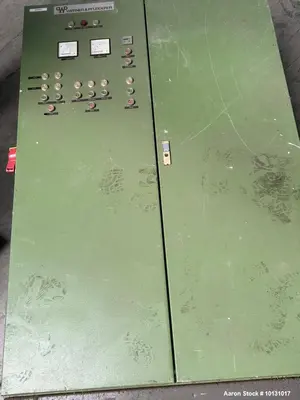

Controls: Electrical control panel included

Total Weight: 14.8 tonnes

🧩 Applications:
The UK2000AEL is ideal for mixing, kneading, or extruding high-viscosity products across several demanding industries:

Rubber and elastomer processing

Plastic compounding and masterbatch blending

High-viscosity adhesives and sealants

Chewing gum and confectionery base production

Ceramic and refractory clay mixing

Thermoplastic and thermoset resins

Pharmaceutical paste and ointment blending

Printing ink and pigment compound processing

Chemical and specialty compound manufacturing

Fireproof or structural compound kneading

🎯 What Might This Be Used For?

Mixing and extruding dense, viscous pastes and solids

Thermally regulated blending via jacketed bowl

Shear-intensive kneading with sigma blades

Producing homogenous compounds from powders, liquids, or polymers

Processing in sanitary or corrosive chemical environments
