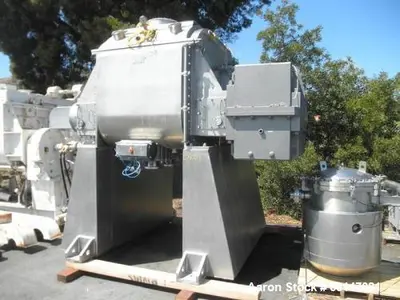

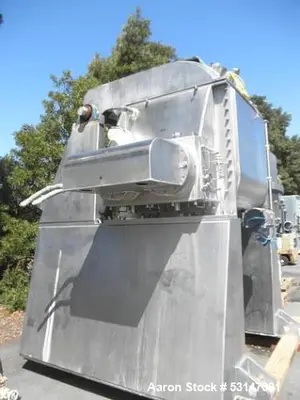

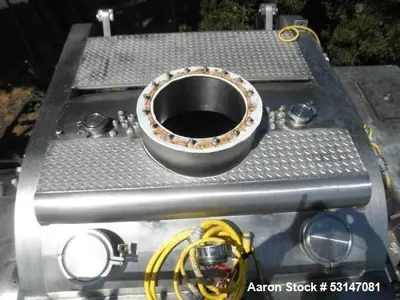

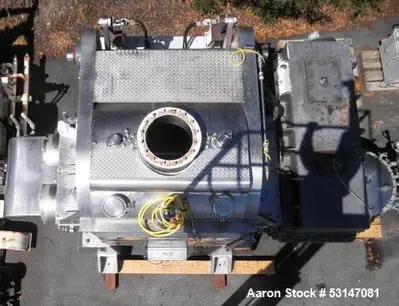

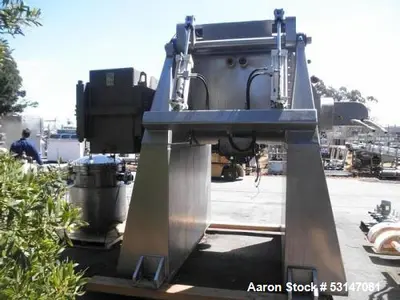

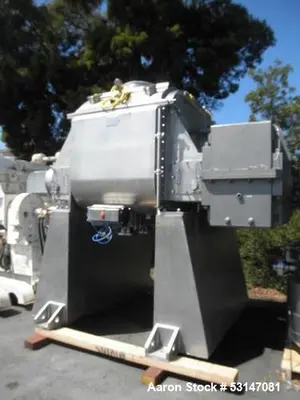

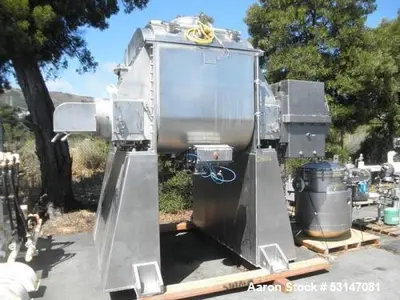

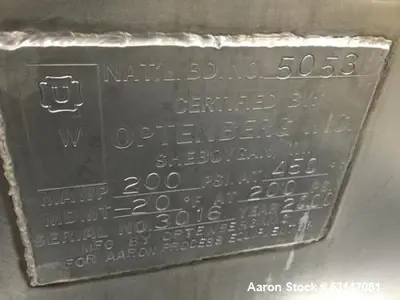

Used Aaron Process 200 Gallon (26.74 cubic feet) capacity Vacuum Drying Sigma Mixer All Stainless, 125 HP, Jacketed, ASME. Cored shafts, jacketed trough, and double nobben blades. Model MBG200-125 All stainless steel construction. All parts are insulated and sheathed with 304 Stainless steel and polished to 150 - 180 grit finish. Mixing/drying chamber includes vacuum cover and is jacketed, rated for 200 PSI at 450 degrees Fahrenheit / negative 20 degrees Fahrenheit, ASME code constructed. Mixing chamber measures 48" x 40" x 44" deep and includes (2) 6" diameter flanged discharges with ball valves. Blades are overlapping double nobben blades and driven by 125 HP motor thru heavy duty gearbox, 160 Amps and 460 volts. Manufactured in 2000. Serial number 00200125643MBG. Previously used in clean room type environment. Complete with control panel and unitized on heavy duty frame. Includes main control panel, power panel with starters and VFD's, steam-to-water heat exchanger for heating of jacket and hydraulic pump/reservoir for opening vessel lid. Also includes top mounted, stainless steel Mikro Pulsaire dust collector, Model 10-2-FV TR.
Used Equipment Facts About This Machine
🔹 Manufacturer:
Aaron Process Equipment Company
A trusted name in industrial mixing and drying systems for high-performance applications in food, chemical, and pharmaceutical industries.
🔹 Description:
This Used Aaron Process MBG200-125 Vacuum Drying Sigma Mixer features a 200-gallon (26.74 cubic foot) capacity with all-stainless steel construction and a heavy-duty double nobben blade design for efficient mixing and drying of viscous or powder materials.
The mixer includes a jacketed and insulated trough, cored shafts, and a vacuum-rated cover, making it ideal for thermal drying under vacuum in a clean room-grade environment. The system is ASME code constructed and rated to 200 PSI at 450°F and -20°F. It includes a 125 HP motor, VFDs, control panels, and a top-mounted stainless Mikro Pulsaire dust collector.
🔹 Specifications:
Model: MBG200-125
Capacity: 200 Gallons (26.74 cu. ft.)
Construction: All parts stainless steel; sheathed/insulated in 304 SS
Finish: 150–180 grit polish

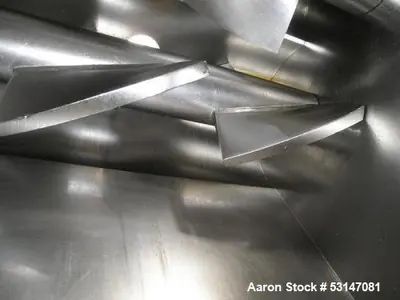

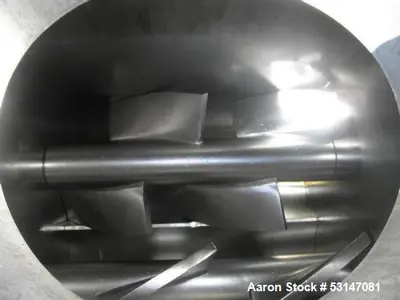

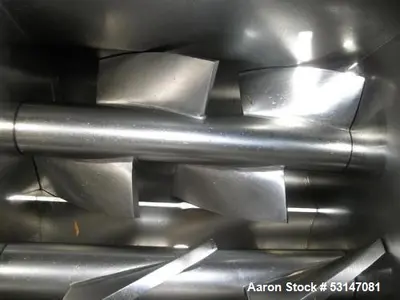

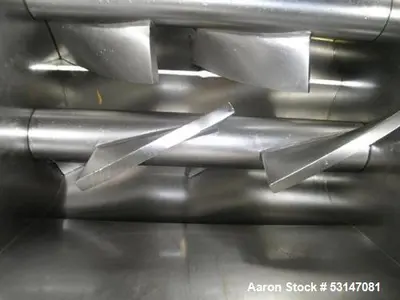

Blades: Overlapping double nobben
Shafts: Cored, jacketed trough

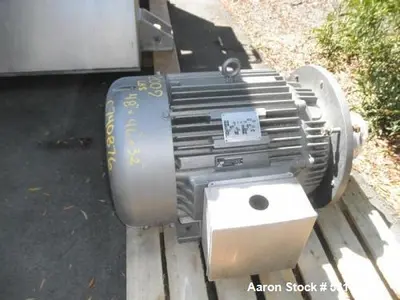

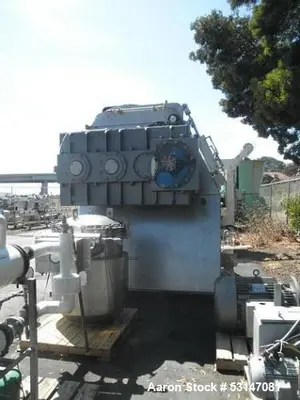

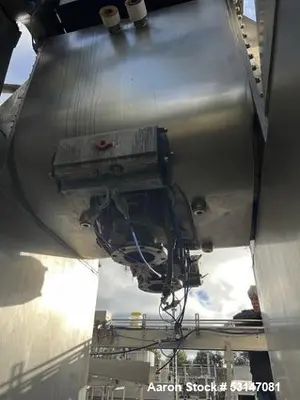

Drive: 125 HP motor via heavy-duty gearbox
Power: 160 Amps, 460 Volts
Chamber Dimensions: 48" L x 40" W x 44" D
Vacuum Jacket Rating: 200 PSI @ 450°F / -20°F

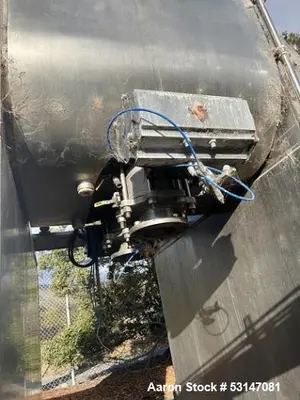

Discharges: Two 6" dia. flanged w/ ball valves
Frame: Unitized heavy-duty base
Controls:
Main control panel
Power panel with starters & VFDs

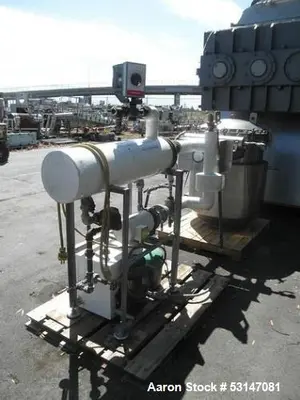

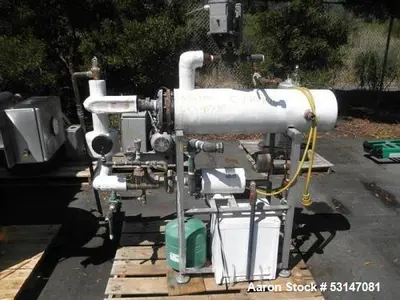

Heating: Steam-to-water heat exchanger

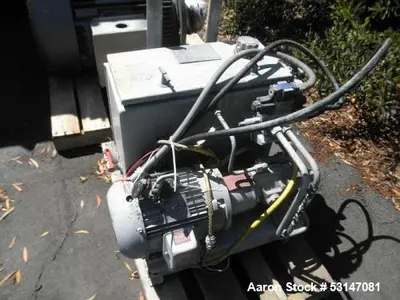

Lid Actuation: Hydraulic pump & reservoir

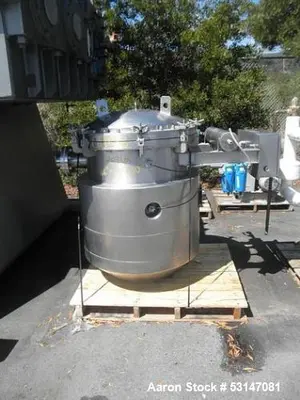

Dust Collector: Mikro Pulsaire, Model 10-2-FV TR
Year: 2000
Serial #: 00200125643MBG
🔹 Applications:
Pharmaceutical powder drying
Food-grade paste or slurry mixing
Resin compounding
Plastic and polymer additive preparation
Thermoset materials mixing and devolatilization
Adhesives and sealants production
Biotech paste formulation
Cleanroom material handling and drying
High-viscosity mixing under vacuum
Drying under controlled temperature and pressure
🔹 What might this be used for?
Vacuum drying of active pharmaceutical ingredients (API)
Paste or compound production in a sanitary environment
Processing of thermally sensitive materials under vacuum
Thick slurry or plasticizer mixing and devolatilization
Preparing cleanroom-grade materials in food or pharma
