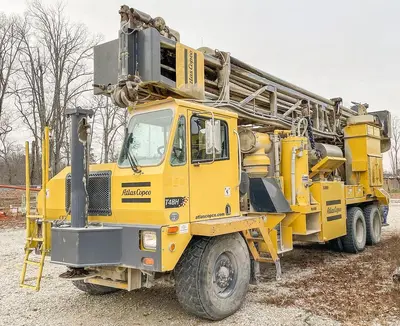

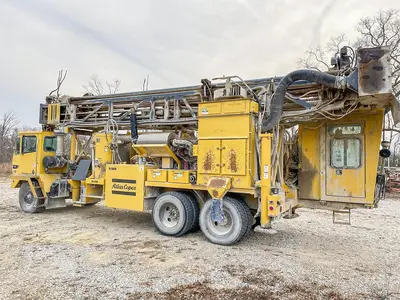

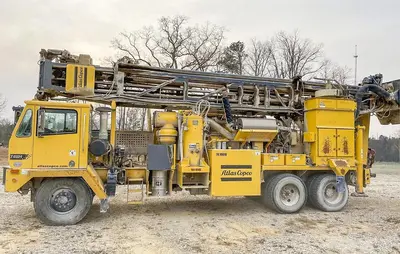

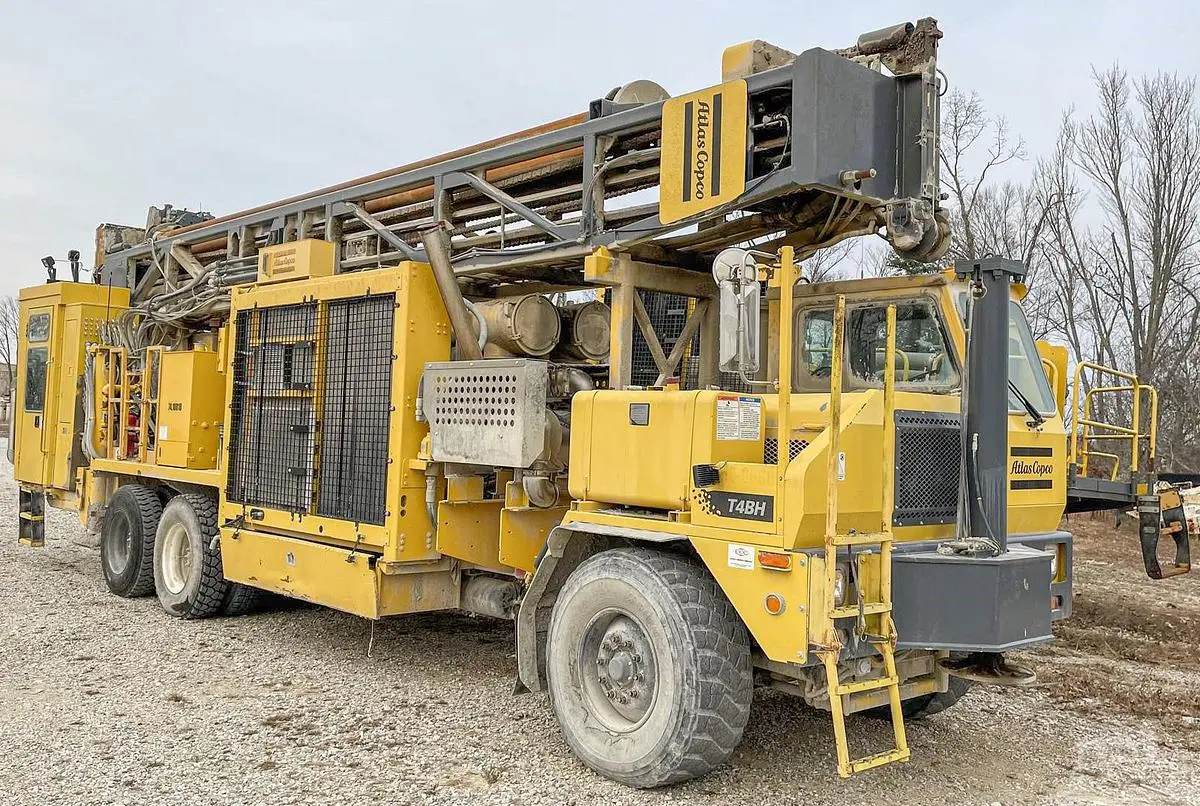

USED 2014 ATLAS COPCO T4BH DRILL RIG

2014 Atlas Copco T4BH Drill Rig – Multi-Pass DTH/Rotary
Key Specs: Blast Hole
Drilling: DTH or Rotary – Multi-Pass
Hole Diameter: 5-5/8" To 9-7/8" (143–251 Mm)
Max Depth W/ 25-Ft Tower: 147 Ft 6 In (45 M)
Set Up For 5" X 25' Drill Rod
225-gallon (852 L) fuel tank
Cooling Package rated to 125°F (52°C)
EARS System

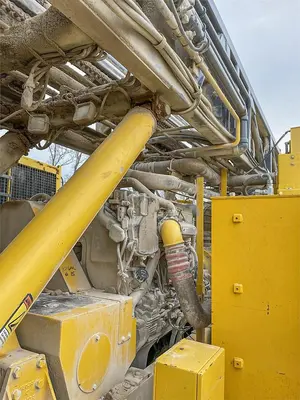

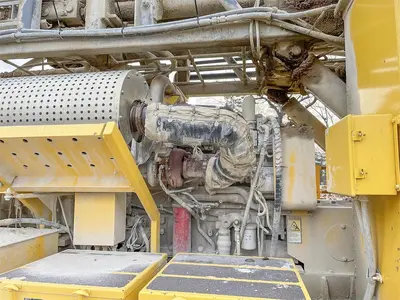

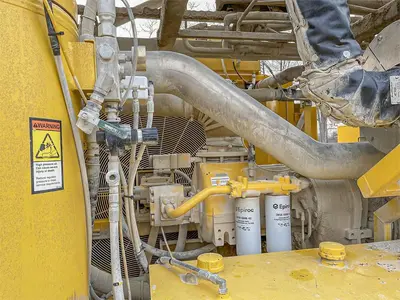

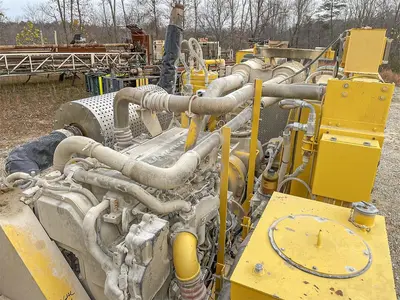

Engine & Air:
Cummins QSX15 Tier 4 Diesel Engine
1070 CFM / 350 PSI Ingersoll-Rand HR2.5 Air Compressor
Separate Air Intake Filtration for Engine & Compressor
Heavy-Duty Engine Silencer / Muffler

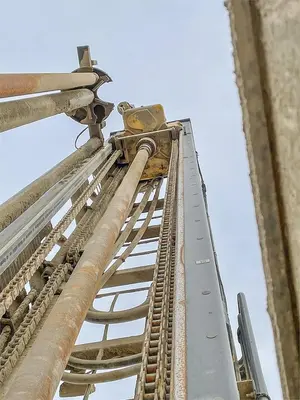

Rotary Head & Feed:
4SV-2-10 Spur-Gear, 2-Motor Rotary Tophead
Speed: 0–160 RPM
Max Torque: 6,000 lb.-Ft
Foremost Cushion Sub
Rebuilt-Ready for Water-Well Conversion Packages (See Upgrade Notes)

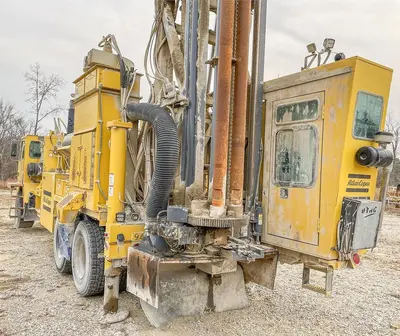

Pipe Handling & Tooling:
5 Rod Carousel – (5" OD x 25')

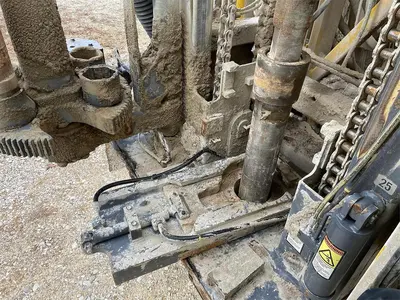

Remote Hydraulic Fork Chuck for Breakout
Auxiliary Hoist for Pipe & Accessories
Hydraulically Powered Auxiliary Chain Wrench
4,000-lb Winch
Hammer Lubricator
Auto-Lube System
Dust Control:
Tipton FC3600 Dust Collector
Rectangular Dust Hood with Skirting Handling Ambient

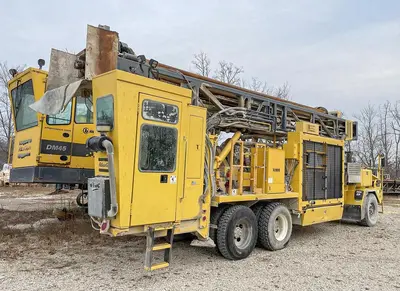

Cab & Lighting:

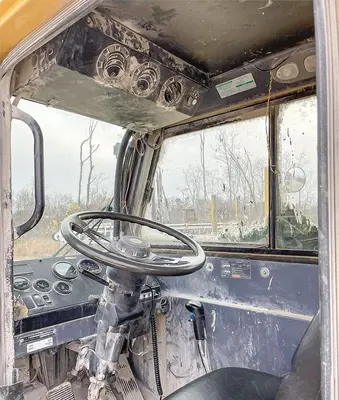

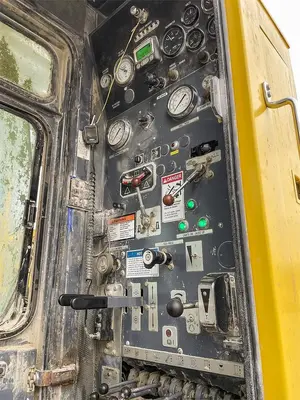

Spacious, Insulated, Sound-Attenuated Cab (Removable)
Can Be Converted to Water-Well Style Control Station
Six Quartz-Halogen Night Work Lights
Leveling:
Three 48-In (1,219 mm) Stroke Leveling Jacks
Upgrade / Conversion Options (Additional Cost):
This Rig Can Be Retrofitted to T4W or T4W DH for water well drilling applications:
Hole Diameters up to 20" (508 mm)
Depths to 2,000 ft (610 m)
Conversion package options
Dust Collector Removal
7-Rod Carousel + 4-Rod Lazy-Susan
Dual Jib Booms
Control Panel Replaced with Water-Well Style Control Station
Platform Instead of Cab
New Chain & Rebuilt Feed Cylinders (50k or 70k Pullback)
Table Reconfigured for Water-Well Drilling
General Repairs & Service to Ensure Ready-To-Work Condition
Location:
·      Eastern Region, USA
