Rubicon Horizontal Heat Exchanger – 8500 Sq. Ft., Stainless Tubes, Heavy-Duty Use
Overview
Description

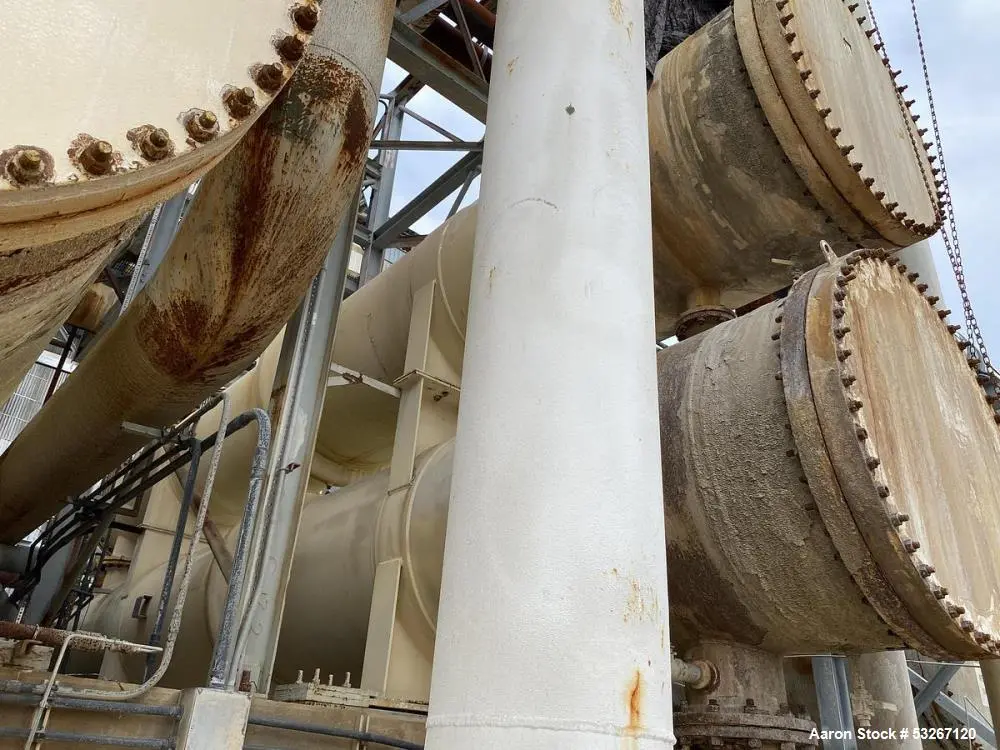

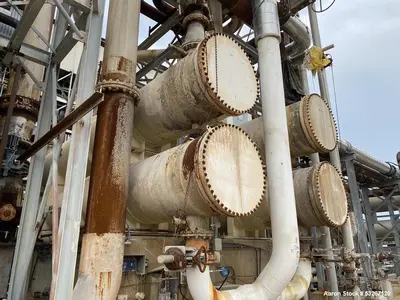

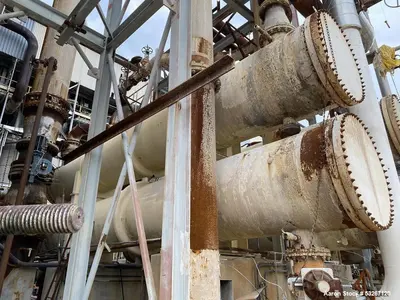

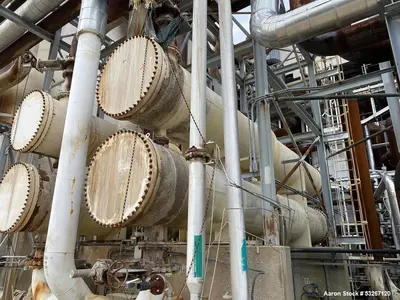

Rubicon Horizontal Heat Exchanger 8500 Sq. Ft., Stainless Tubes, Heavy-Duty Use. 51" diameter X 26' face to face length. Carbon Steel Shell rated 110/FV @ -20 to 650 F. (1294) 304L tubes rated 110/FV @-20 to 550 F. Has 304L tubesheets and carbon steel heads. Fittings: (2) 16" inlet/outlet, (2) 3/4" vent/drain, (1) 18" inlet, (1) 14" outlet, (4) 3/4" vent/drain, (2) 2" acid wash, and (1) 6" flush out. NB# 1959, S/N 3387-1A. Built 2007.
Specifications
Used Equipment Facts About This Machine
🏭 Manufacturer
Rubicon
A known provider of heat exchanger solutions for chemical processing, refining, food, and energy applications. Their systems are widely used in industrial thermal transfer processes.
📝 Description
This Rubicon Horizontal Shell & Tube Heat Exchanger, built in 2007, features a robust carbon steel shell with 304L stainless steel tubes, tubesheets, and multiple ports for enhanced operational flexibility. With a large 8,500 sq. ft. heat transfer area, this unit is engineered for high-efficiency heat exchange in rigorous industrial environments.
Measuring 51 inches in diameter and 26 feet face-to-face, the exchanger is pressure rated at 110 PSI at full vacuum (FV) from -20°F to 650°F on the shell side and -20°F to 550°F on the tube side. It features (1294) 304L stainless tubes, carbon steel heads, and various vent, drain, and cleaning connections, including acid wash ports and a 6" flush out for CIP (clean-in-place) support.
⚙️ Specifications
Manufacturer: Rubicon
Model/Serial Number: 3387-1A

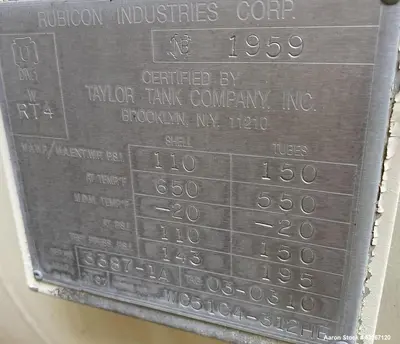

National Board Number (NB#): 1959
Year Built: 2007
Heat Transfer Area: Approximately 8,500 sq. ft.
Shell Material: Carbon Steel
Tube Material: 304L Stainless Steel (1294 tubes)
Tubesheet Material: 304L Stainless Steel
Head Material: Carbon Steel
Shell Rating: 110 PSI / Full Vacuum @ -20°F to 650°F
Tube Rating: 110 PSI / Full Vacuum @ -20°F to 550°F
Shell Diameter: 51 inches
Length (Face-to-Face): 26 feet
Fittings:
(2) 16" inlet/outlet
(1) 18" inlet
(1) 14" outlet
(2) 3/4" vent/drain
(4) 3/4" vent/drain (additional)
(2) 2" acid wash ports
(1) 6" flush out port
🧩 Applications
Designed for demanding process conditions across:
Petrochemical and chemical refining
Fertilizer and acid production plants
Power generation facilities
Oil & gas midstream and upstream operations
Industrial utility systems
Heat recovery and preheating loops
Process water and cooling systems
Pulp and paper mills
Food and beverage thermal exchange
Renewable energy (biofuels, distillation systems)
🔧 What Might This Be Used For?
Transferring heat in a sulfuric acid plant
Cooling hydrocarbon or condensate streams
Preheating boiler feed water in energy systems
Serving as a heat exchanger in chemical reactors
Condensing vapors in distillation processes
Hot oil recovery from industrial thermal systems
Providing thermal regulation in food-grade systems
Waste heat recovery for power generation
Cleaning-in-place using acid wash connections
Multi-stage heat transfer in continuous process lines
