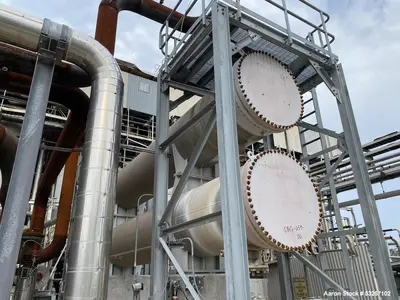

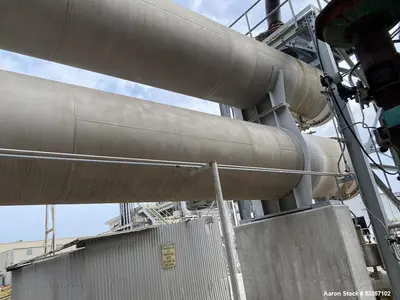

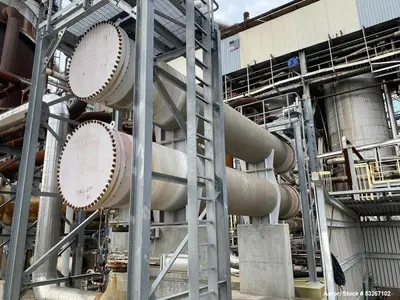

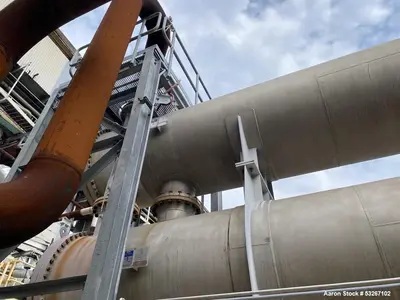

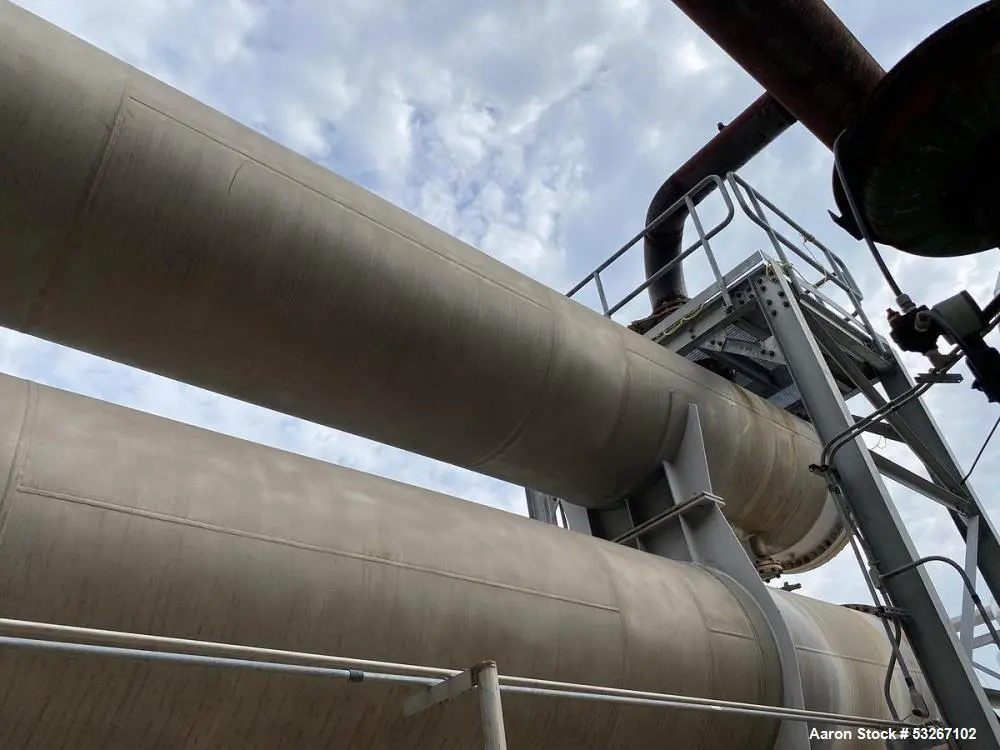

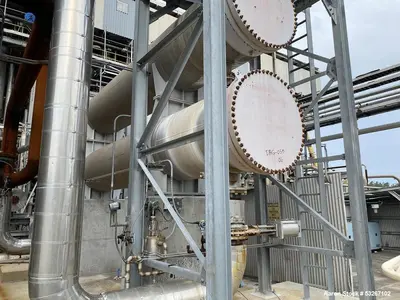

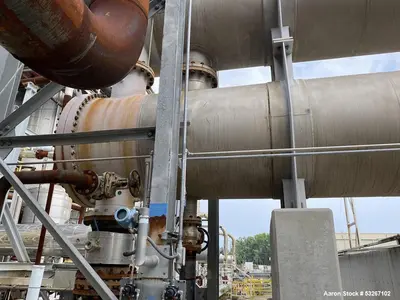

Used Southern Heat Exchanger 8500 Sq. Ft. 304L Stainless Horizontal Heat Exchanger – 51" x 26', Built 2019
Overview
Description
Used Southern Heat Exchanger 8500 Sq. Ft. 304L Stainless Horizontal Heat Exchanger . 51" diameter X 26' face to face length. 304L Shell rated 110/FV @ -20 to 650 F. (1294) 304L tubes rated 110/FV @-20 to 550 F. Has 304L tubesheets and carbon steel heads. Fittings: (2) 16" inlet/outlet, (2) 1" Aux., (2) 1" vent/drain, (2) 18" inlet/outlet, (1) 2" Aux., (1) 1" vent, (1) 6" drain, (1) 2" Aux. NB# 15500, S/N 19-0072. Built 2019.
Specifications
Used Equipment Facts About This Machine
🏭 Manufacturer
Southern Heat Exchanger Corporation (SHECO)
Renowned for manufacturing high-efficiency shell and tube heat exchangers for industrial processing across oil & gas, chemical, and power generation sectors.
📝 Description
This Southern Heat Exchanger Corp. horizontal heat exchanger, built in 2019, features robust 304L stainless steel construction and offers a massive 8,500 sq. ft. heat transfer area. The shell is 51" in diameter with a 26' face-to-face length, built for high-pressure and high-temperature applications. The 304L shell is rated 110 PSI @ full vacuum (FV) and -20°F to 650°F, while the (1294) 304L tubes are rated up to 550°F.
It includes 304L tubesheets and carbon steel heads for performance and durability. The unit comes with multiple connection options, including (2) 16" and (2) 18" inlets/outlets, as well as auxiliary, vent, and drain ports for maximum flexibility.
⚙️ Specifications
Manufacturer: Southern Heat Exchanger Corp.
Year Built: 2019
Heat Transfer Area: ~8,500 sq. ft.
Shell Material: 304L Stainless Steel
Tube Material: 304L Stainless Steel (1294 tubes)
Tubesheet Material: 304L Stainless Steel
Head Material: Carbon Steel
Shell Rating: 110 PSI / Full Vacuum @ -20°F to 650°F
Tube Rating: 110 PSI / Full Vacuum @ -20°F to 550°F
Dimensions:
Shell Diameter: 51"
Length (face-to-face): 26'
Connections/Fittings:
(2) 16" Inlet/Outlet
(2) 18" Inlet/Outlet
(2) 1" Aux.
(2) 1" Vent/Drain
(1) 2" Aux.
(1) 1" Vent
(1) 6" Drain
(1) 2" Aux.

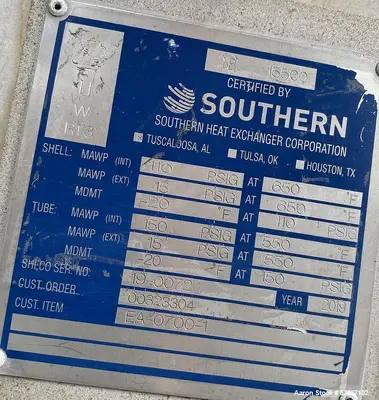

National Board Number (NB#): 15500
Serial Number: 19-0072
🧩 Applications
Ideal for high-efficiency thermal exchange in:
Oil & gas refineries
Petrochemical and chemical plants
Power generation facilities
Biofuel and renewable energy operations
Food and beverage processing
Pharmaceutical heat transfer systems
HVAC and industrial utility systems
Process cooling and heating circuits
Steam condensing systems
Waste heat recovery systems
🔧 What Might This Be Used For?
Heat recovery from industrial flue gas streams
Thermal exchange in a high-volume chemical reactor
Cooling of hydrocarbon streams in refineries
Heating process liquids using steam or thermal oil
Condensation of vaporized process media
Heat transfer in clean steam pharmaceutical lines
High-pressure liquid-to-liquid heat recovery
Replacement unit in existing power plant heat loops
Temperature regulation in food-grade thermal systems
Supporting continuous production in chemical distillation
