USED PFAUDLER 08-060-BEM-26

🏭 Manufacturer

Pfaudler Inc.

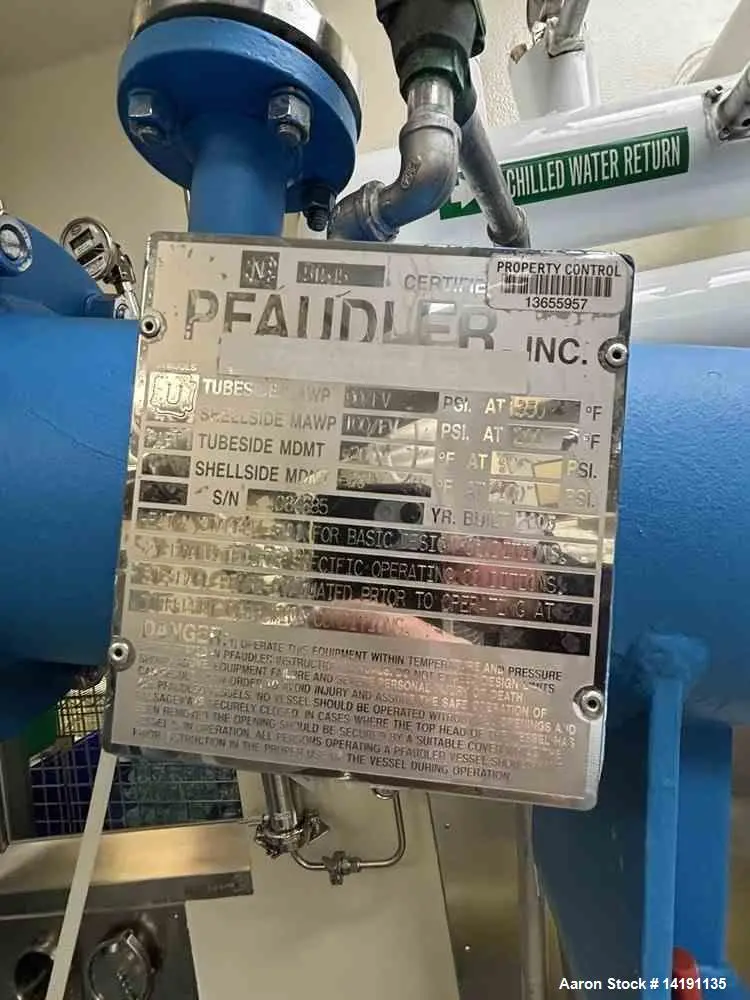

Model: 08-060-BEM-26
Serial #: J064685
National Board #: 51515
Year: 2005

📄 Description

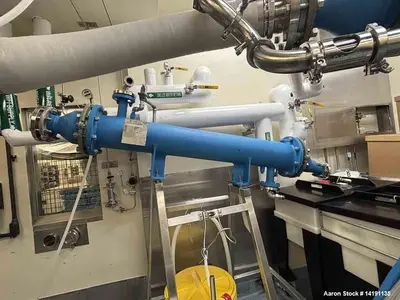

This Pfaudler 26 Square Foot Tantalum Condenser is a corrosion-resistant shell and tube heat exchanger, engineered to meet the demanding thermal and chemical resistance needs of the chemical and pharmaceutical industries. Featuring Tantalum 2.5% Tungsten alloy tubes, it’s built to handle aggressive acids and ultra-pure media. The tube side is rated 90 PSIG at 350°F, while the carbon steel shell is rated 100 PSIG at 200°F.
This Type 08-060-BEM-26 model uses 8" diameter x 60" long tubes, and was manufactured in 2005. It is well-suited for hazardous gas condensation and recovery, offering both durability and high heat transfer performance.

⚙️ Specifications

Model: 08-060-BEM-26

Manufacturer: Pfaudler

Serial Number: J064685

National Board Number: 51515

Heat Transfer Area: 26 sq ft

Tube Material: Tantalum 2.5% Tungsten Alloy

Shell Material: Carbon Steel

Tube Dimensions: 8" Diameter x 60" Long

Tube Side Rating: 90 PSIG / Full Vacuum @ 350°F

Shell Side Rating: 100 PSIG / Full Vacuum @ 200°F

Design Type: Shell & Tube, TEMA BEM

Year of Manufacture: 2005

🔧 Applications

This Pfaudler condenser is used in corrosive and high-purity process environments, including:

Chemical recovery systems

Acid vapor condensation

Halogen or corrosive gas quenching

Semiconductor-grade fluid processes

Chlorinated compound condensation

Fume scrubbing systems

Pharma solvent vapor handling

Heat exchange for nitric or sulfuric acid services

📦 What Products Would This Be Used For?

Nitric acid or aqua regia vapors

Hydrochloric acid recovery

Fluorinated organic chemicals

Chlorine and bromine condensation

Concentrated sulfuric acid

High-purity solvents

Semiconductor chemical vapors

Metal chloride off-gas recovery

Organic halide cooling streams

Reactive chemical process flows
