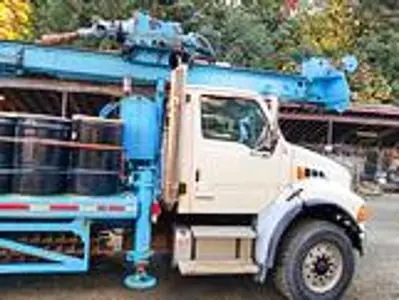

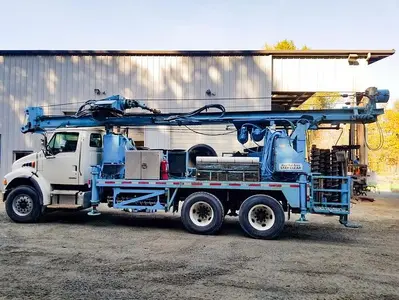

USED 2003 GUS PECH GP-1300 BRAT SERIES DRILL RIG

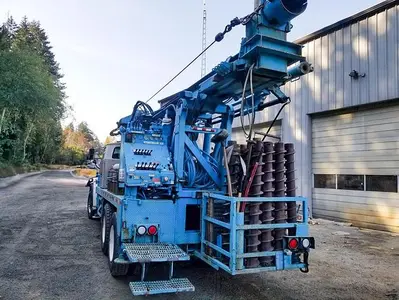

Gus Pech GP-1300 Brat Series Drill Rig
Single Owner Unit And Delivered In 2003

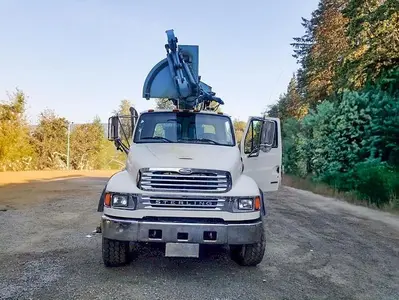

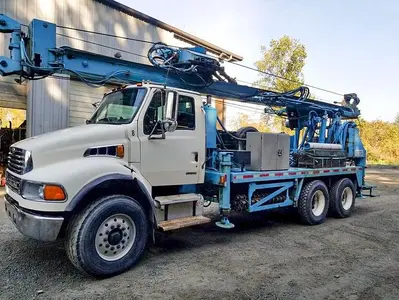

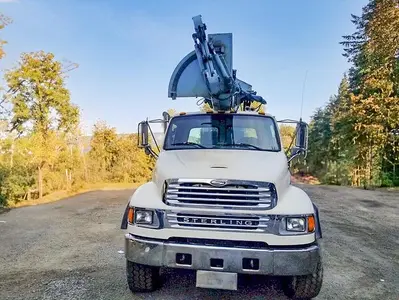

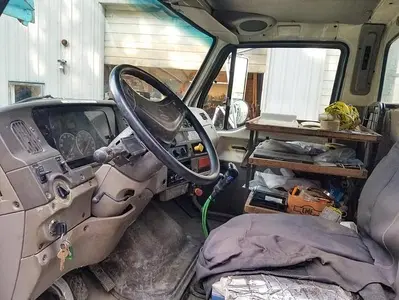

Mounted On 2003 Sterling Truck 6x4
Cat Diesel Engine – PTO Driven

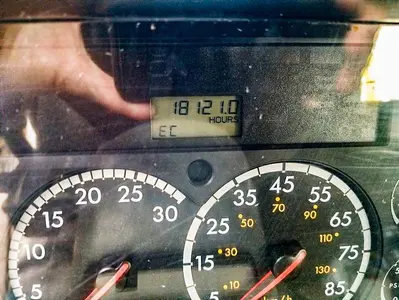

Rig Has 18,200 Hours
New Engine At 12,900 Hours – (5,300 Hours On Engine)
12" Tube Style Mast
Two-Way Cross Top Head Slide
Planetary Top Head Drive
Gp-1300 Hydrostatic Top Head Drive 0-65 Rpm@ 13,000 Ft Lbs., 0-145 Rpm@ 5.828 Ft Lbs. Torque 24' Stroke, Cable, Hydraulic Cylinder Actuated Pulldown/Retract Drill System (Pulldown 18,412 Lbs./Retract: 24,537 Lbs.)
Bypass Circuit For Rapid Pulldown/Retract System
Pulldown/Holdback Feed Control System
Two Speed Retract
Dual Hydraulic Pump Drive System With Enlarged Gear Pumps For Increased Speed
Oil Cooling System
Standard Lighting (2)
Tower Tool Carrier For Transportation
4 Point Outriggers: 5'x36"X3* Front Behind Cab Hosed Together With One Control And 5"X30"X3" Rear

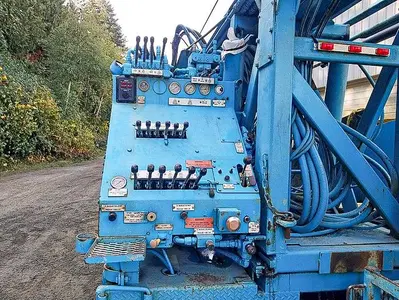

Operator Controls Including Tachometer, Key Ignition Switch, And Gauges Pertinent To The Operation Of The Drill
Angle Drilling Lower Tower Supports
Operator Foot Stand
Hydraulic Slide Base
Hydraulic Lowering Brat E Style Foot Guide With Hydraulic Too! Clamp (Enlarged To Handle 8-1/4" Id Augers)
Hydraulic Swing Around Jib With Hydraulic Extension
2.000# (First Layer) Gp Winch, With Large Diameter Drum, with Headache Ball,
1/4" X 150' Cable With Swivel Rook, On Jib
12.000# (First Layer) Pullmaster Winch with Rapid Reverse
1/2' X 200' Cable With Swivel Hook
Diedrich Sample Hammer System
Stationary Drill Rod Rack (10') With Hammer Holder For NWJ (150' - 30 Rods)
Special 5' Rod Rack Under 10' Rod Rack For 20 AWJ Rods

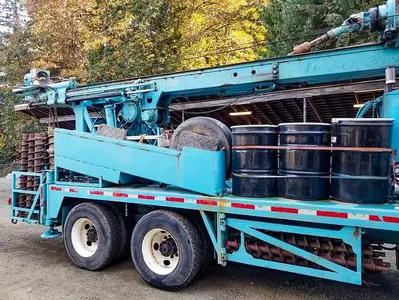

Swing Around Auger Racks (2) Under Both Sides Of Rig
Swing Around Auger Rack, Rear Mounted As Per Basil Rig
2-1/2" U-Joint Attachment With 2" Adapter
2 Sets Auger Guide Bushing (8-1/4" Id.)
Cotta Heavy Duty Transfer Case System
Located in North America
