USED 2006 GUS PECH R-15 BRAT-A-SONIC RIG

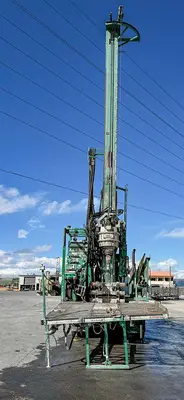

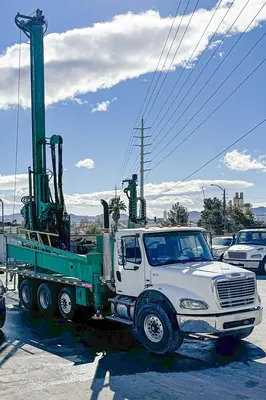

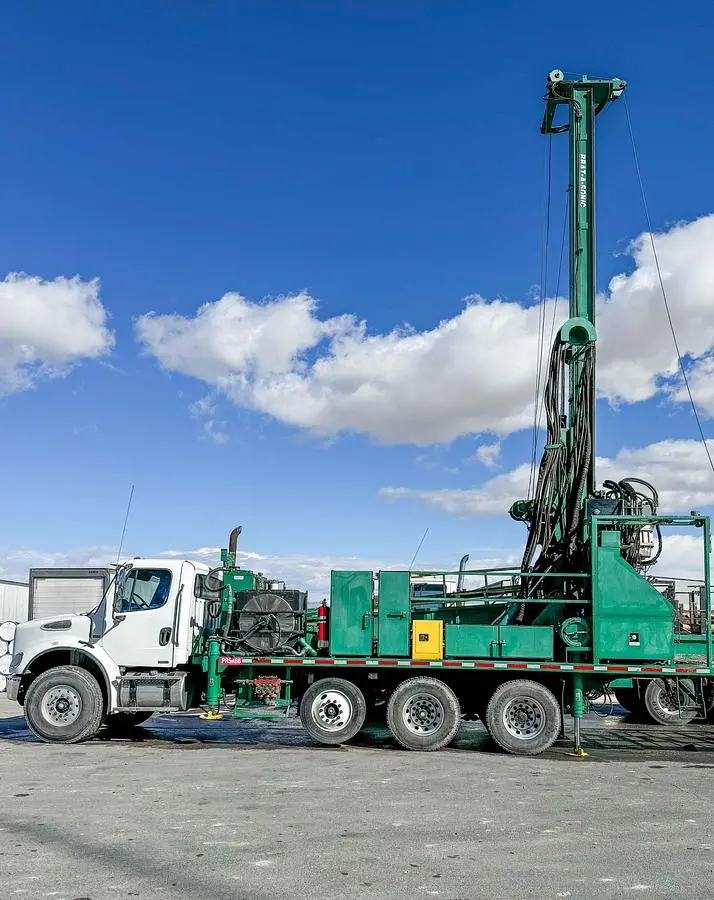

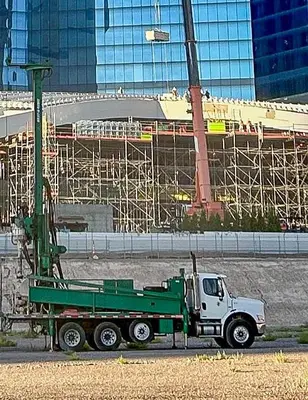

2006 Gus Pech R-15 Brat-A-Sonic Drill Rig
Mileage – 11,956
Hours – 11,830
Serial# 105GP133WDC24CXY506
GP# 24-400RS
Note: 8' x 8' ft deck that folds down when running the rig. Rod holder on the side of the rig that holds 20' ft rods or casing

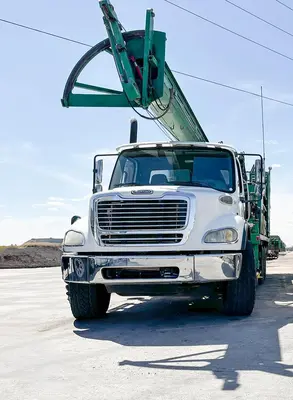

Mounted on a 2006 M2 Freightliner 6x4 Truck
Diesel Engine: MBE4000-450 12.8L rated 450hp - SN: 460.933U0837213
Transmission: Eaton 16 speed manual with Chelsea HD PTO
Front and rear ABS air brake system
20,000# Front Axle, 46,000# 2 stage Tuftrac rear axle with Pusher axle @ 13,200# capacity

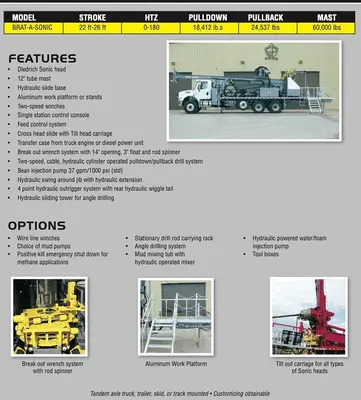

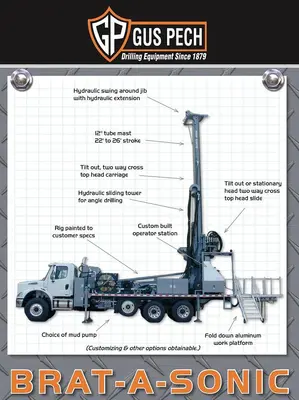

Note: All the Gus Pech specifications and detailed description are viewable in the pictures on the spec sheets.
Tooling & Sonic Heads available (cost extra): About 450’ of 10-3/4” x 10’ H90 Sonic Casing (270’ ft never used), several H90 drive heads for 5-7/8”, 7-5/8”, 8-5/8”, 9-5/8” and 10-3/4” casing sizes. Overshots and taps for all sizes, core bits, casing shoes and some core barrels. We can sell this lot separately or include it in a package deal.
We can offer 3 complete Dietrich sonic heads and parts and pieces to assemble maybe 2 more sonic heads (each head cost extra).
Note: The demand for sonic drilling in the industry to drill mostly environmental projects ranging from deep borings (300’ – 600’) with discreet water sampling, installation of CMT wells, monitoring wells ranging from 2” – 6” at depths reaching 500’ ft. The rig is also capable and has been used on projects where 30 – 45 - degree angle wells were installed.
Located in Western Region, USA
