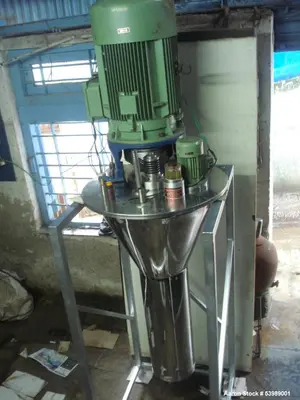

New MKM CD 250 Atomizer – 9000–13,000 RPM, SS316 Spray Disk, RPM Sensors, Insulated Jacket

🏭 Manufacturer Information:

Manufacturer: MK Manufacturing Co.

Model: MKM CD 250

Condition: Unused / New

Motor Compatibility: Flange-mounted 25 HP, 2900 RPM (Siemens or Hindustan)

📄 Description:
This new MKM CD 250 atomizer is a precision-engineered unit designed for spray dryer systems in industrial applications. Built from high-grade 316 stainless steel, the feeder components and spray disk are meticulously machined, tested, and dynamically balanced to ensure stable high-speed operation between 9,000 and 13,000 RPM.
The atomizer features a spring steel main shaft with centerless grinding for ultra-smooth rotation and precision alignment. The unit also includes RPM sensors with digital display, a ceramic wool insulated jacket, and air purging to prevent material buildup—ensuring extended operation without clogging.
The lubrication system is powered by an MKM-brand oil pump with dual filters, pressure gauges, and a motor, allowing consistent oil circulation during high-speed rotation. Note: the motor is not included, but the design accommodates a 25 HP, 2900 RPM flange-mounted motor (Siemens or Hindustan).

🛠️ Specifications:

Model: MKM CD 250

Condition: New / Unused

Spray Disk: SS316, dynamically balanced

Feeder Assembly:

Cover, retainer, sleeve, and feed pipe in SS316

Main Shaft: Special spring steel with centerless grinding

Bearings: Mounted in cylindrical mild steel housing

Drive Type: V-belt pulley system

Atomizer Pulley: SS304

Motor Pulley: Cast iron or mild steel

Operating Speed: 9,000 to 13,000 RPM

RPM Monitoring: Sensors with digital RPM display

Jacket Insulation: Ceramic wool

Air Purge System: Prevents sediment buildup for continuous operation

Lubrication System:

MKM make pump with motor

Double filtration and pressure gauges

Motor Compatibility:

25 HP

2900 RPM

Flange-mounted Siemens or Hindustan motor

(Motor not included)

🧩 Applications:
Perfect for integration into high-speed spray drying systems across various industries:

Pharmaceutical powder and granule production

Dairy and food ingredient spray drying

Chemical and specialty material spray systems

Ceramic and catalyst powder processing

Nutraceutical and vitamin drying lines

Detergent and powder coating lines

Paint pigment drying

Agrochemical formulation drying

Thermoplastic resin spray applications

Biotech fermentation product recovery

🎯 What Might This Be Used For?

Atomizing liquid suspensions into uniform droplets in spray dryers

Converting feed solutions or emulsions into dry powders

Increasing particle uniformity and surface area in powder production

Supporting high-throughput, continuous powder drying operations

Optimizing energy transfer in heat-sensitive or reactive material drying
