Used Thomas & Muller Stainless Steel Screw Conveyor – 24" x 26'-4", 10 HP, Built 2012

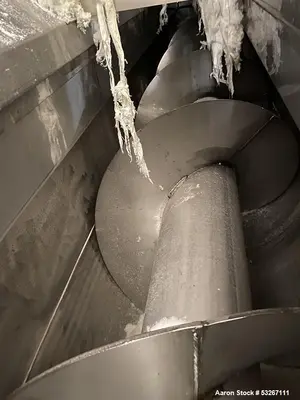

Used Thomas & Muller Systems LTD Stainless Steel Screw Conveyor. 24" screw X 26'-4" long. Unit has a 150" long top feed area, then material travels to end 20" round side discharge, opposite side has 20" round opening for air induction. Serial# C-52302. Driven through Nord Drivesystems with 47.67:1 ratio. Powered by Marathon 10HP 3/60/208-230/460 volt motor. Built 2012.

Used Equipment Facts About This Machine
🏭 Manufacturer

Thomas & Muller Systems, Ltd.
A reputable U.S. manufacturer specializing in screw conveyors, feeders, and bulk material handling systems for heavy-duty and industrial applications.

📝 Description

This stainless steel screw conveyor, manufactured by Thomas & Muller Systems LTD in 2012, features a 24-inch diameter screw and an overall length of 26 feet, 4 inches. It is ideal for conveying powders, granules, sludges, and other bulk solids in sanitary, chemical, or food processing environments.
The unit includes a 150-inch long top feed section, allowing for continuous material introduction. It is configured with a 20" round side discharge at the terminal end and a 20" air induction opening on the opposite side, supporting integrated air handling or vacuum systems.
Powered by a Marathon 10 HP motor, the screw is driven via a Nord Drivesystems gear reducer with a 47.67:1 reduction ratio, ensuring reliable torque and consistent flow. The robust stainless construction ensures long service life and corrosion resistance.

⚙️ Specifications

Manufacturer: Thomas & Muller Systems LTD

Model / Serial Number: C-52302

Build Year: 2012

Screw Diameter: 24 inches

Length: 26 feet 4 inches

Top Feed Area: 150 inches (12.5 feet)

Discharge: 20" round side discharge

Air Induction Port: 20" round opening (opposite discharge)

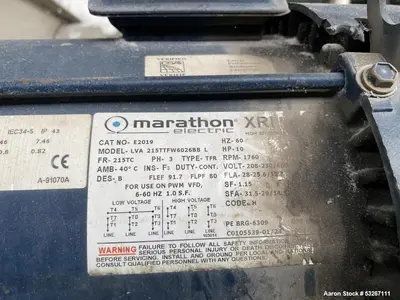

Motor: Marathon Electric

10 HP

3-phase

60 Hz

208-230/460 volts

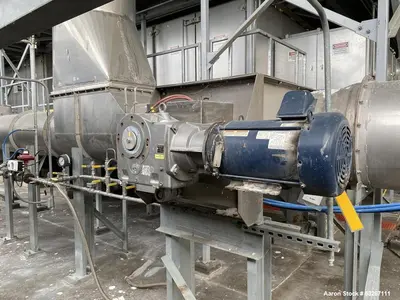

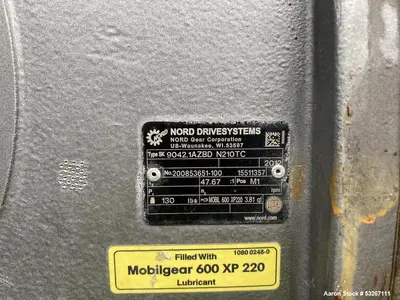

Drive System: Nord Drivesystems

Gear reduction: 47.67:1

Material: Stainless Steel

🧩 Applications

Perfect for conveying:

Food and beverage powders

Wet or dry chemical solids

Granular materials or aggregates

Wastewater treatment sludges

Pharmaceutical powders

Plastic pellets or resins

Ash and biofuel handling

Animal feed or grain

Industrial drying system integration

Compost or organic waste materials

🔧 What Might This Be Used For?

Conveying powders in food or pharmaceutical production

Integrating into a vacuum conveying system via air induction port

Transporting sludge or cake from dewatering systems

Feeding granulated product into baggers or hoppers

Moving bulk chemicals between process units

Connecting silo output to mixers or hoppers

Handling abrasive or corrosive materials with stainless build

Blending or homogenizing materials during transport

Controlled feeding of ingredients into reactors or dryers

Transfer of materials in confined plant layouts
