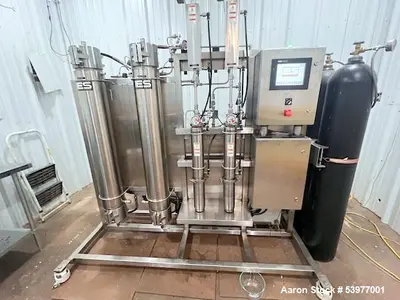

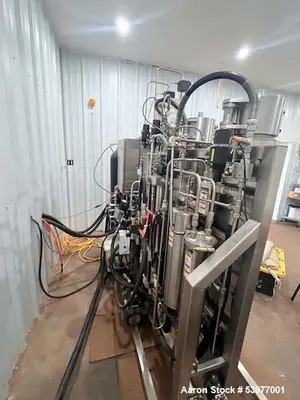

Used IES CDMH.20-2x-2f Supercritical CO2 Extractor – 40L, 850–3500 PSI, CBD-Grade, 2020
Overview
Description
IES Supercritical CO2 Extractor, Model CDMH.20-2x-2f. 20 liters per extraction vessel 40 total liters volume; 4 17.6 lbs (1.8 8 kg) per extraction vessel capacity; 4 kg/min +/-5% maximum flow rate; 850-3500 psi (58.6-241.3 bar), 50-140F (10-60C) solvent range; 400-650 psi (27.5-44.8 bar), 65-140F (18- 60C) expansion range; Sub & Supercritical Extraction Capabilities; Hydraulically Driven Gas Booster Pump; Fully Automated Control System; 100% Communication with Ancillary Equipment; Produce high-quality cannabis oil, terpenes, and other valuable extracts; Extract essential oils and other bioactive compounds from various botanical materials. Includes 7.5 Ton Air Cooled Chiller and Hydraulic Power Unit. Serial # 5522-1189, Built 2020. Previously used for CBD oil.
Specifications
Used Equipment Facts About This Machine
🏭 Manufacturer
Integrated Extraction Solutions (IES)
Model: CDMH.20-2x-2f

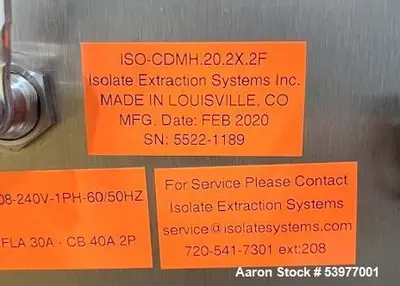

Serial #: 5522-1189
Year: 2020
📄 Description
The IES Model CDMH.20-2x-2f Supercritical CO₂ Extractor is a high-capacity, fully automated CO₂ extraction system built for precision botanical processing, including CBD oil, terpenes, and other high-value essential oils. Each of the two 20-liter extraction vessels provides robust throughput and versatility, supporting both subcritical and supercritical extraction modes.
Operating at pressures from 850 to 3500 psi and solvent temperatures between 50°–140°F, this system is designed to extract delicate plant-based compounds with efficiency and repeatability. It includes an automated control system, hydraulic gas booster, and offers complete communication with ancillary equipment. A 7.5-ton air-cooled chiller and hydraulic power unit are included, making this a turnkey setup for high-performance botanical extraction.
⚙️ Specifications
Model: CDMH.20-2x-2f
Manufacturer: Integrated Extraction Solutions (IES)
Year: 2020
Total Extraction Volume: 40 Liters (2 x 20 L vessels)
Capacity per Vessel: 4–17.6 lbs (1.8–8 kg)
Flow Rate: Up to 4 kg/min ±5%
Operating Pressure:
Solvent: 850–3500 psi (58.6–241.3 bar)
Expansion: 400–650 psi (27.5–44.8 bar)
Operating Temperature:
Solvent: 50°–140°F (10°–60°C)
Expansion: 65°–140°F (18°–60°C)
Extraction Type: Subcritical & Supercritical
Pump Type: Hydraulically Driven Gas Booster
Control System: Fully Automated with Ancillary Equipment Communication
Includes:
7.5 Ton Air-Cooled Chiller
Hydraulic Power Unit
Previous Use: CBD oil production
Serial Number: 5522-1189
🔧 Applications
This high-spec system is built for the extraction of botanical oils and bioactive compounds, suitable for:
CBD oil and full-spectrum cannabinoid extraction
Terpene isolation
Extraction of essential oils from herbs and flowers
Supercritical food-grade CO₂ extraction
Fragrance and perfume manufacturing
Nutraceutical production
Solvent-free extraction for cosmetics
Bioactive compound isolation for pharmaceuticals
Plant-based pigment and resin extraction
Research-grade botanical compound development
📦 What Products Would This Be Used For?
CBD and THC extracts
Hemp-derived essential oils
Lavender, eucalyptus, and mint oils
Nutraceutical botanical oils
Black pepper, clove, and ginger extract
Hops oil for brewing
Turmeric and curcumin extraction
Rose and jasmine essential oils
Aloe and calendula concentrates
Functional food and beverage infusions
