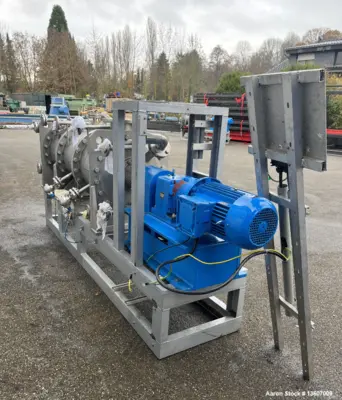

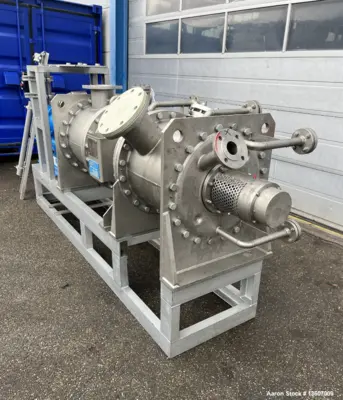

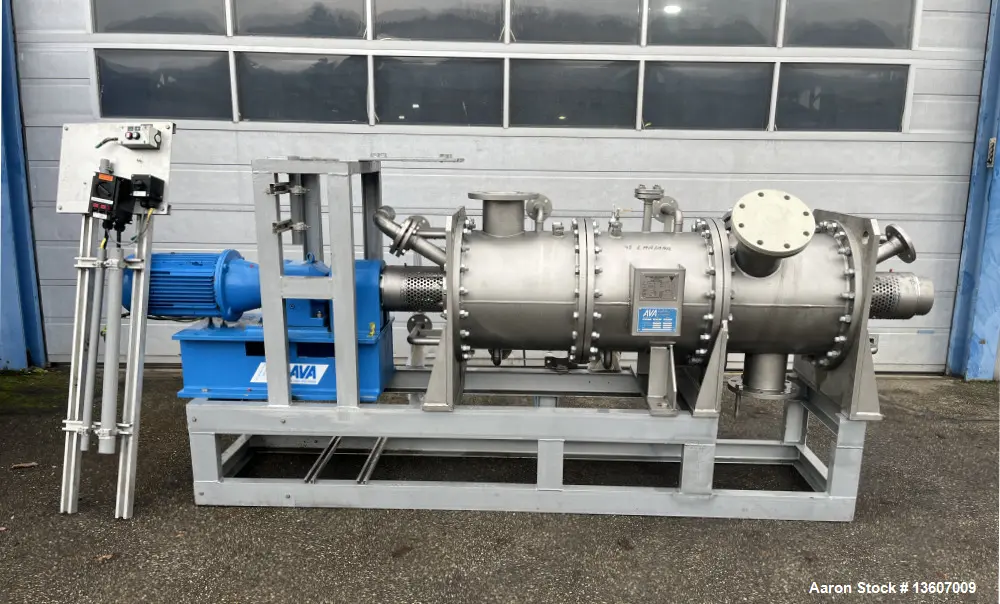

Used AVA-Holland Merten HTK 200 Rotary Vacuum Paddle Dryer – 316Ti Stainless Steel

Used AVA-Holland Merten GmbH Type HTK 200 Rotary Vacuum Paddle Dryer. 316TI (1.4571) on product contact parts. Total capacity 8.3 cu. ft (235 liter), Working capacity 5.53 cu. ft (156.66 liter). Double jacketed. Inside operating temperature 266F (130C), Design temperature 392F (200C). Internal rated for full vacuum and 45 PSI (-1/3 bar). Jacket pressure 90 PSI (6 bar). Shaft speed 107 RPM driven via a gearbox by a 5.5 Kw (7.37hp) EExdellCT4 motor. Mechanical seal. Frame mounted. New year 2002. Serial # 5499/1. Overall dimensions: 111" L x 36" W x 49" H (3400 mm L x 1100 mm W x 1500 mm H). Weight approx. 1.6 tonnes. Reported in good condition. Previously used in a pilot plant for solid phase modification of wood. Our freight specialists can assist you with door to door transportation and all customs documents needed to make the process go as smoothly as possible.

Used Equipment Facts About This Machine
Manufacturer Information

Brand: AVA-Holland Merten GmbH

Model: HTK 200

Condition: Used – Reported in Good Condition

Year Built: 2002

Serial Number: 5499/1

Specifications

Total Capacity: 8.3 Cu. Ft. (235 Liters)

Working Capacity: 5.5 Cu. Ft. (156.66 Liters)

Material: 316Ti Stainless Steel (1.4571) on Product Contact Parts

Jacket Type: Double Jacketed

Operating Temperature: 266°F (130°C)

Design Temperature: 392°F (200°C)

Pressure Ratings:

Internal: Full Vacuum & 45 PSI (-1/3 bar)

Jacket: 90 PSI (6 bar)

Drive System:

Shaft Speed: 107 RPM

Motor: 5.5 kW (7.37 HP) EExdellCT4 Explosion-Proof Motor

Gearbox Driven

Mechanical Seal: Included

Mounting: Frame Mounted

Dimensions & Weight

Overall Dimensions: 111" L x 36" W x 49" H (3400mm L x 1100mm W x 1500mm H)

Weight: Approx. 1.6 Tonnes

Description
This AVA-Holland Merten HTK 200 Rotary Vacuum Paddle Dryer is a high-quality, 316Ti stainless steel unit designed for efficient drying and solid-phase modification processes. Featuring a double-jacketed design, this dryer allows precise temperature control and uniform heat distribution. The explosion-proof 5.5 kW motor drives the paddle shaft at 107 RPM, ensuring effective mixing and drying.
Designed for vacuum operation, this dryer is ideal for sensitive materials requiring controlled pressure and temperature environments. Previously used in a pilot plant for solid-phase modification of wood, it remains in good condition and ready for industrial use.
Applications
This rotary vacuum paddle dryer is suitable for:

Pharmaceutical drying & blending
Chemical process drying
Solid-phase material modification
Wood treatment & specialty materials processing
Food & nutraceutical drying applications

Compatible Equipment & Accessories

Vacuum pumps & filtration systems
Temperature control & monitoring systems
Material handling conveyors & feeders
Explosion-proof electrical components
